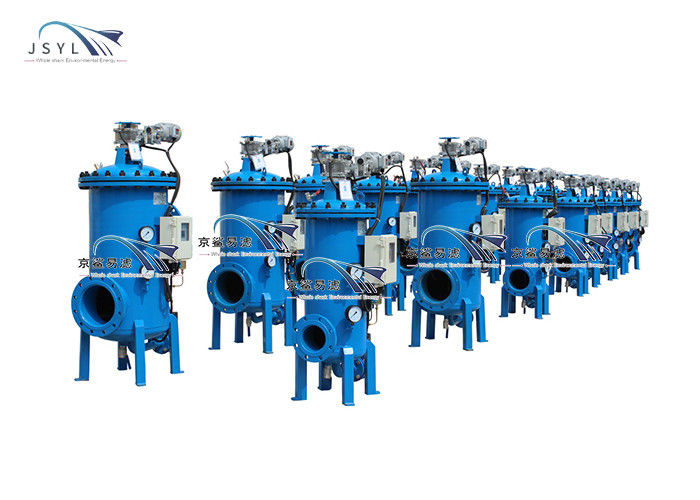

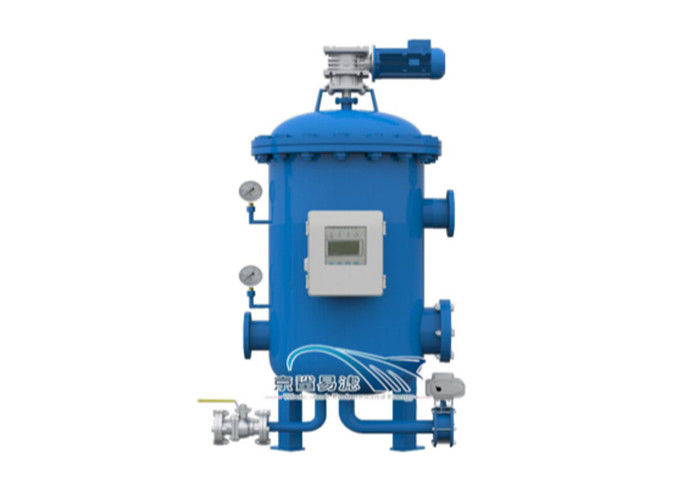

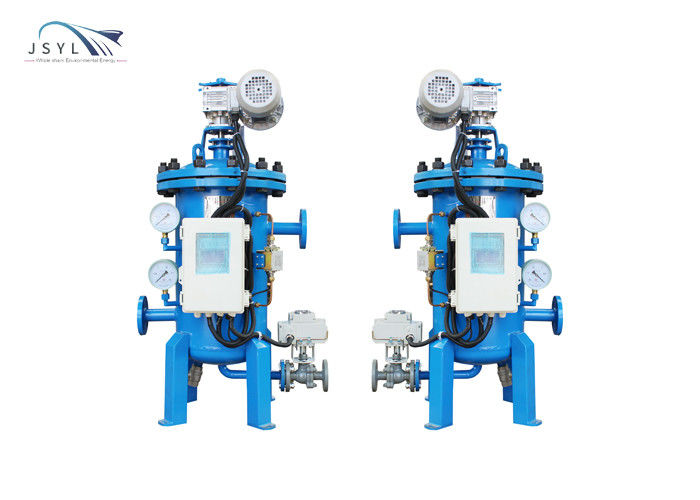

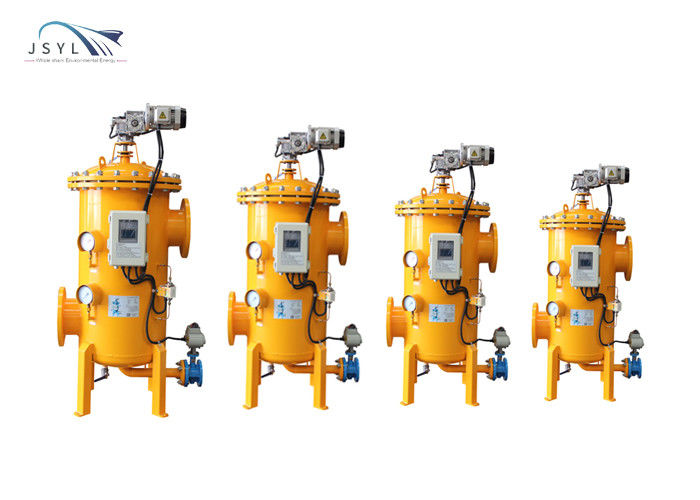

Hot-selling high-quality simplex backwash filter in 2021
Describe
The fully automatic simplex backwash filter overcomes many shortcomings of traditional filter products, such as small dirt holding capacity, easy to be blocked by dirt, filter parts need to be disassembled and cleaned, and filter status cannot be monitored. It has the ability to filter raw water and automatically perform automatic filter elements. The function of cleaning and draining sewage, and the system provides uninterrupted water supply during cleaning and draining, which can monitor the working status of the filter with a high degree of automation.
working principle:
The liquid enters the body filter from the inlet, and the liquid is filtered by the filter element. The impurities in the liquid are deposited on the stainless steel filter screen. When the inlet pressure and the outlet pressure reach the set value; the system automatically starts the backwash program; the sensor transmits the information To the power distribution system, the power distribution system receives the pressure signal to trigger: the backwashing rotating arm rotates; and then the filter element is recoiled one by one; under the action of the pressure difference, the dirt inside the filter element is washed away and discharged through the sewage outlet;
| PRODUCT PARAMETER | |
| Specifications | Equipment parameters |
| Equipment model | DN25, DN40, DN50, DN100, DN150, DN200, DN250, DN300, DN400, DN500, DN600, DN700, DN800, DN900, DN1000 |
| Applicable liquid | water and low viscosity liquid (˂40cps); impurity level˂300ppm |
| Minimum work |
pipeline pressure difference>0.15MPa
|
| Filter accuracy | 10-2,000μm |
| Design pressure | 0.5/1.0/1.6/2.0/4.0MPa (higher pressure can be customized.) |
| Design temperature | 0-95°C |
|
Single filter area
|
0.45m2-14.40m2 |
| Cleaning pressure drop | 0.05-0.1MPa |
| Control system | Pressure difference and time parallel control |
| Indicator | Differential pressure transmitter |
| Gear motor | Three-phase power supply, 380V, protection grade IP55; worm gear reducer |
| Import and export size | 2"-24" |
| Main body material | carbon steel/304 |
Applicable fields:
Petrochemical pipelines, energy chemical pipelines, fine chemical pipelines, water supply and drainage and sewage pipelines, water quality treatment, industrial manufacturing cooling water circulation filtration, water supply and drainage pipeline water filtration, paper industry production wastewater filtration, power plant cooling water circulation filtration, municipal, agricultural garden irrigation water impurities Filtration, and organic liquid fertilizer pipeline filtration, food and beverage liquid impurity filtration, mechanical processing, papermaking, steel industry, etc.
Our products are sold all over the world, you can rest assured.
