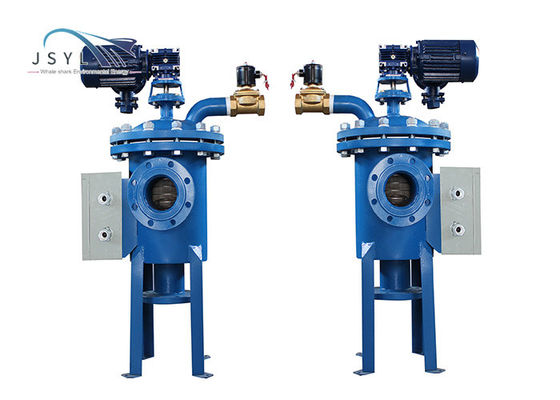

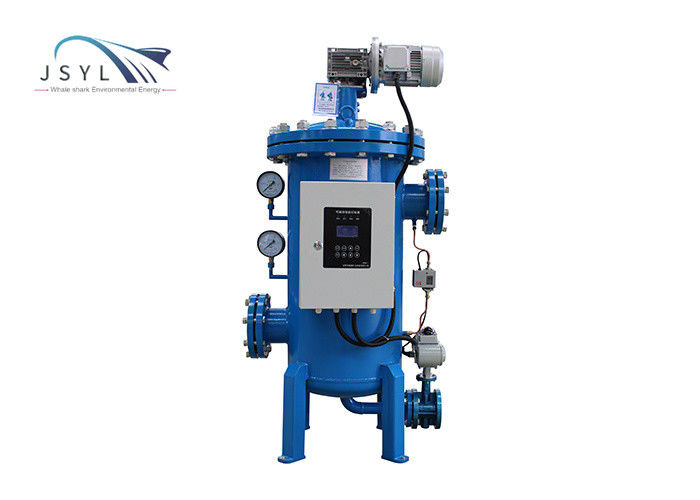

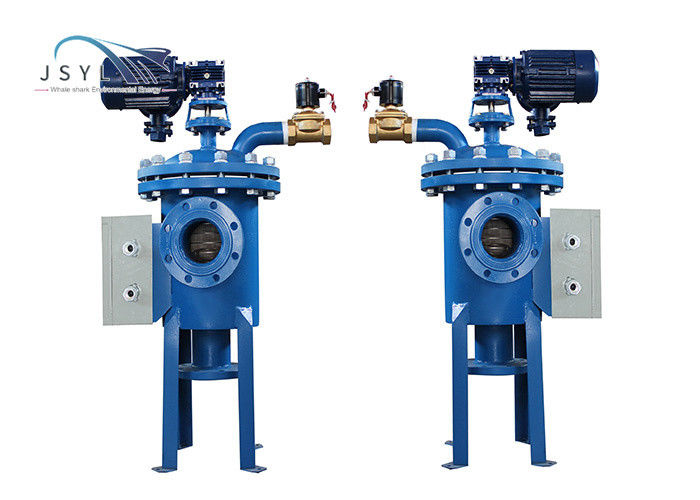

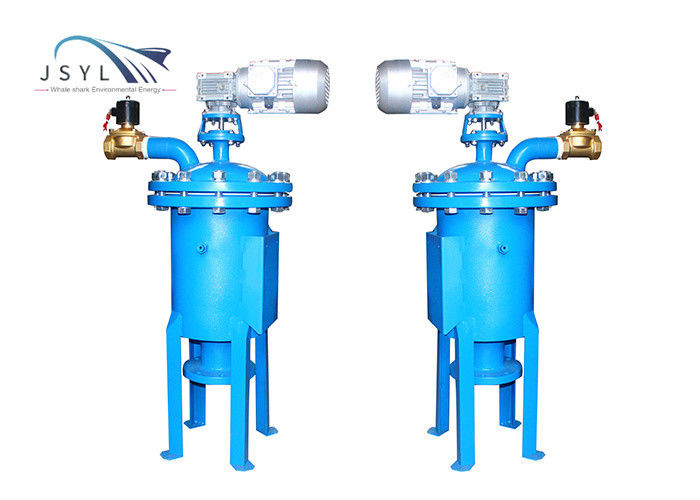

Automatic simplex carbon steel 100 micron industrial filter
Describe
Filtering process:
The raw water enters the inside of the screen cylinder from the inlet of the filter, and flows through the screen to the outlet of the filter. Dirt particles are trapped on the inner surface of the screen and form a "filter cake", resulting in a pressure difference across the screen. The differential pressure switch senses the differential pressure, and when it reaches a preset value, the cleaning process begins.
Self-cleaning process:
During the self-cleaning process, the filtered process water continues to flow. The drain valve opens and the motor rotates the stainless steel brush to sweep the inner surface of the cylindrical screen. The particles trapped on the screen are removed by the brush and washed away from the drain valve.
The whole process takes 20-30 seconds.
The water supply is uninterrupted throughout the process.
Features:
1: Large flow; small volume; large filter area
2: Continuous flow during self-cleaning and sewage, low water consumption and short cleaning time.
3: The filter element assembly is easy to disassemble, replace and maintain.
4: The unique design of the cleaning brush (with a spring and retractable adjustment; unique)
5: Manual intake valve/drain valve, the equipment stops working, and the internal sewage can be discharged manually
| PRODUCT PARAMETER | |||
| Specifications | Equipment parameters | Specifications | Equipment parameters |
| Equipment model |
JSYL-DS1-SD-DN(50-800) |
Cleaning method | Equipment's own filter element backwash |
| Shell selection | Carbon steel/stainless steel | Filter element form | Multi-layer woven mesh sintered |
| Single machine flow |
15-4000 m3/h
|
Number of filter elements |
6 elements
|
| Rated pressure | 1.6MPa/2.5MPa/4.0MPa | Filtration accuracy | 10-4000 μm |
| Applicable viscosity (cp) | 1-40cp | Applicable temperature (°C) | 0-95°C |
| Operation mode | Fully automatic intelligent control | Filter element replacement | Large cover flange replacement filter element |
|
Backwashing components
|
304 stainless steel | Filter element design | Cover replacement |
| Power unit | Compound reducer | Position proximity switch | Inductive |
| Backflushing node | Seven-star node disk | Pressure gauge | Seismic pressure gauge |
| Filter replacement cycle | Half a year/more than one year | Installation method | Vertical/Horizontal |
After-sales service:
1. The product implements three guarantees, the quality period is one year, and the technical service is provided for life.
2. The supplier provides the basic drawings of the product and is responsible for providing technical guidance when making the foundation.
3. During the commissioning and equipment commissioning warranty period, if the equipment is damaged due to our responsibility, we will repair and replace it free of charge. If the equipment is damaged due to improper transportation and delivery management, we have the responsibility to cooperate with the buyer. Do a good job in service.
4. After the contract is signed, we will train the demand-side operation and maintenance personnel for free.
5. During the commissioning and equipment commissioning warranty period, if the equipment has quality problems, we guarantee to reply immediately after receiving the notice from the demander, and send technicians to the scene to deal with the problem within 4 hours.
Our products are sold all over the world, you can rest assured.
