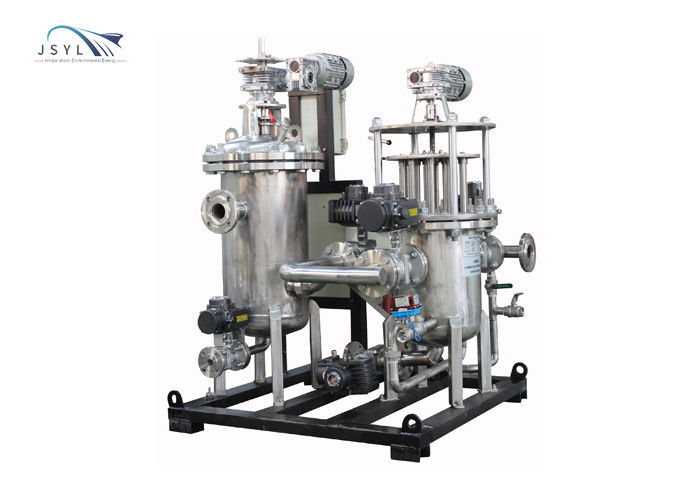

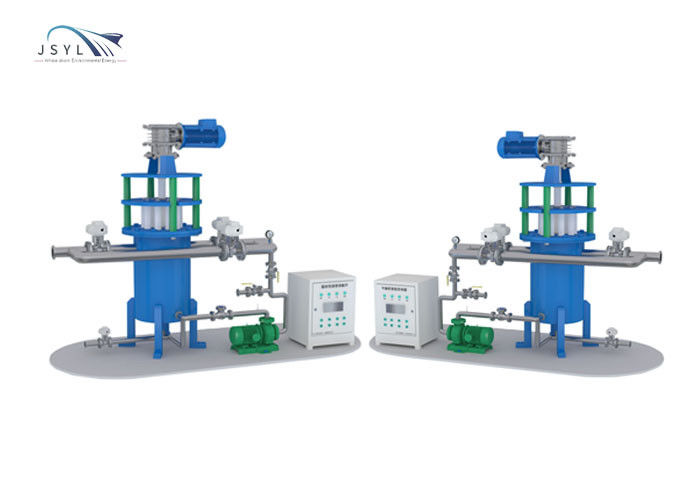

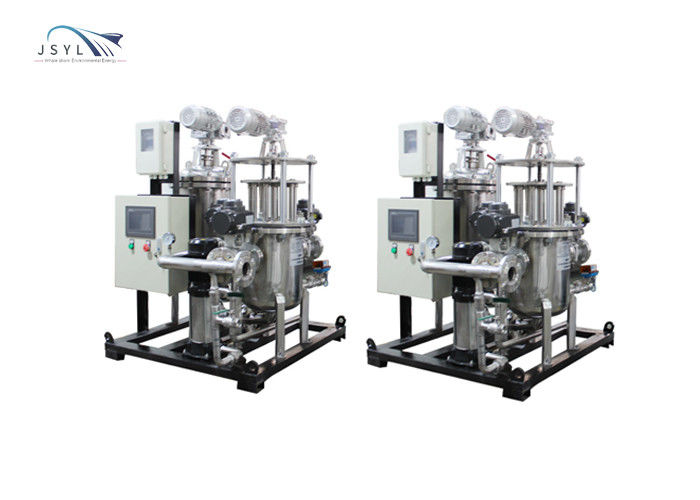

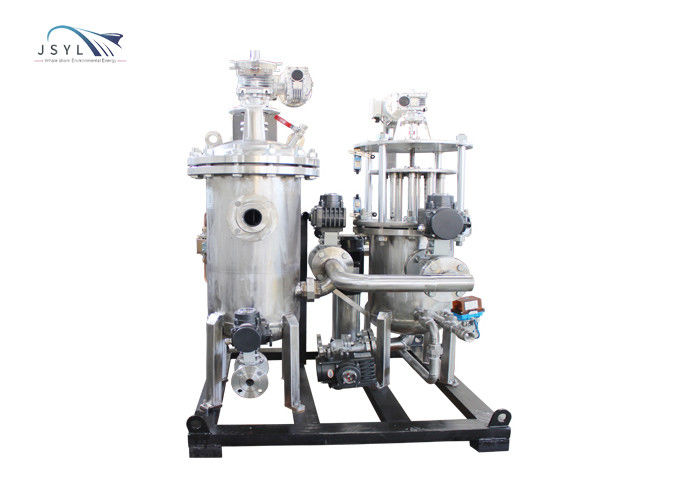

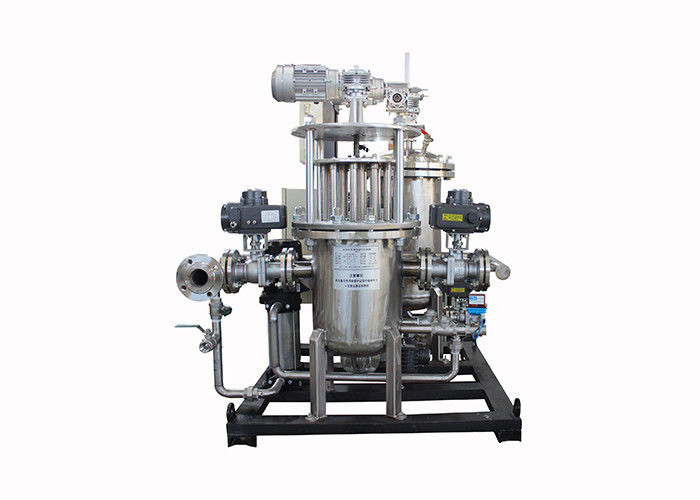

Tubular Housing Strong Separation Magnetic Liquid Filter For Water Treatment

Tubular filter housing strong separation magnetic filter liquid trapping magnet for water treatment

Product Description
Strong magnetic filter/separator
It is composed of several strong magnetic rods designed according to the special magnetic circuit, installed in the pipeline, which can effectively filter the magnetic metal impurities in the liquid transportation process. Metal particles with a diameter of 0.5-100um can be absorbed by the magnetic rod. This magnetic filter achieves automatic intelligent control of large flow processing, continuous filtration, automatic backwashing and waste slagging. It is dedicated to filtering ferrous impurities and can efficiently remove all kinds of liquids, slurries and gases. Large amounts of iron filings, iron powder and other ferromagnetic impurities.

working principle:
The filter system works normally: when the system is working normally, the material flows into the magnetic rod group. Due to the action of the magnetic field, the magnetic particles will be adsorbed on the wall of the magnetic rod tube, and the non-magnetic particles are carried into the next process by the liquid;
The filter system automatically demagnetizes and discharges the slag: when the running time reaches the set value, close the feed valve and the discharge valve, the material passes through the side stream, and the system enters the slag discharge process. At this time, the system opens the intake valve to lift the magnetic rod, and after demagnetization The impurity particles fall into the bottom of the tank and are discharged with the liquid;
Automatic cleaning of the filtration system: close the air valve and open the cleaning valve during spray cleaning. The water in the bypass is sprayed into the equipment through the water pump to clean the internal cavity of the equipment. After the magnet is reset, the feed valve and the discharge valve are opened, and the bypass valve is closed. Enter normal working state;

Application:
Plastics, food, environmental protection, filtration, chemicals, electric power, building materials, ceramics, medicine, powder, mining, coal, etc.

Features:
1: Large flow processing capacity, suitable for filtering high-content impurities
2: Fully automatic intelligent control, closed operating system; low cost
3: Fully automatic filtration and separation of ferromagnetic particles
4: Slag discharge and anti-blocking system
5: Tube bottom anti-pile system
6: Support on-site adjustment of control parameters at any time
