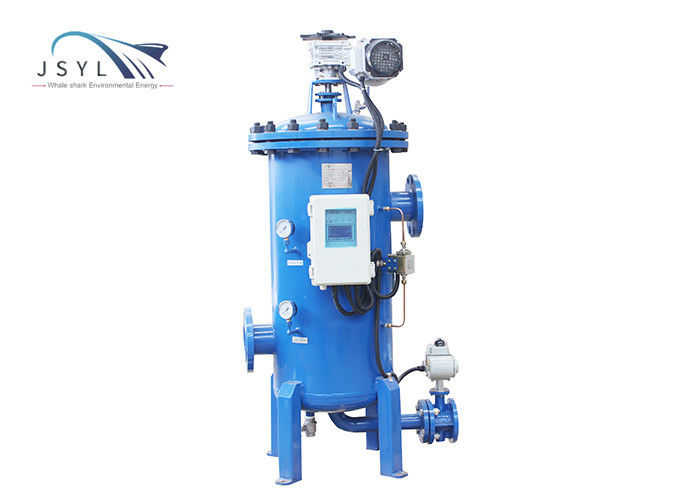

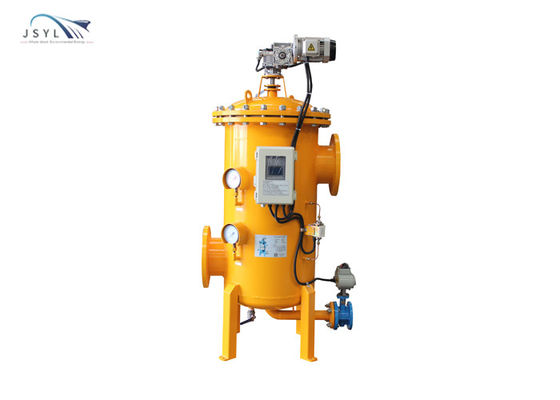

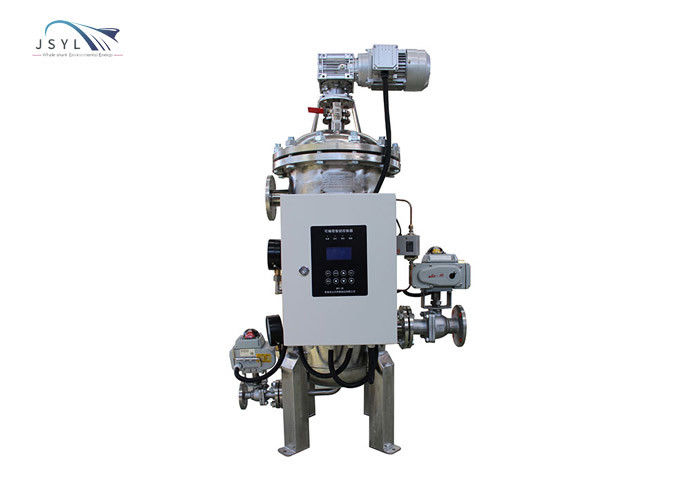

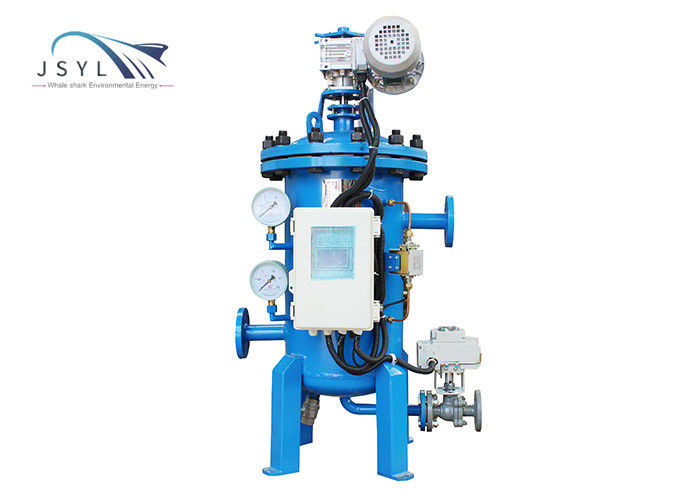

Automatic Industrial Solid Liquid Separator 1.6MPa Water Backwash Filter

Automatic industrial water filtration system separator

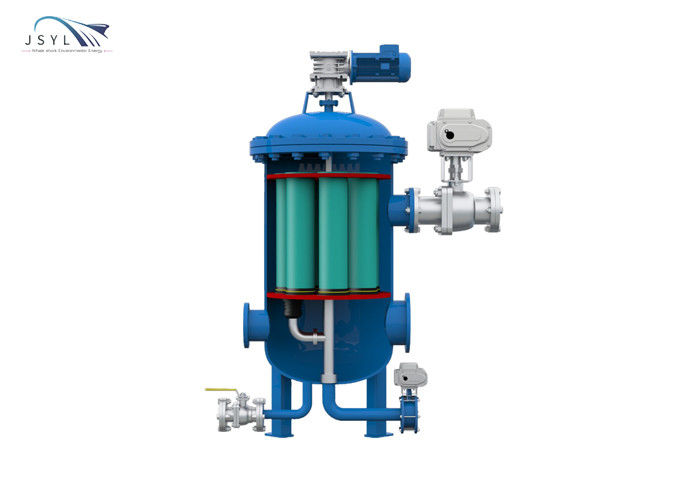

Working principle:
The liquid enters the body filter from the inlet, and the liquid is filtered by the filter element. The impurities in the liquid are deposited on the stainless steel filter screen. When the inlet pressure and the outlet pressure reach the set value; the system automatically starts the backwash procedure; the sensor transmits the information To the power distribution system, the power distribution system receives the pressure signal to trigger: the backwashing rotating arm rotates; and then the filter element is recoiled one by one; under the action of the pressure difference, the dirt inside the filter element is washed away and discharged through the sewage outlet;

Advantage
1. JSYL-DDX series multi-core backwash oil filter element number 5-12
2. Automatic continuous online filtration, uninterrupted flow during backwashing, reducing downtime and maintenance costs
3. Large filtration area, low surface flow rate, low pressure loss energy consumption, fine filtration, low recoil frequency, saving anti-liquid;
4. The high-performance filter element is sintered with wedge-shaped wire/multi-layer woven mesh, with precise filtering gaps, efficient backwashing, high-strength structure, and the shell has a service life of more than 10 years
5. The filter element recoils, after aligning the filter element, open the drain valve to recoil, the backwashing strength is high, the effect is good, the time-consuming is short, and the liquid is saved
6. Compact design, a single machine can achieve ultra-large flow filtration, which significantly saves installation space and construction costs
7. Highly integrated, no need for a large number of automatic valves, connectors, seals, high reliability, low operation and maintenance costs
8. The automatic control system is highly reliable, the interface is intuitive and easy to operate, and the filter can be controlled to run efficiently according to actual working conditions.
