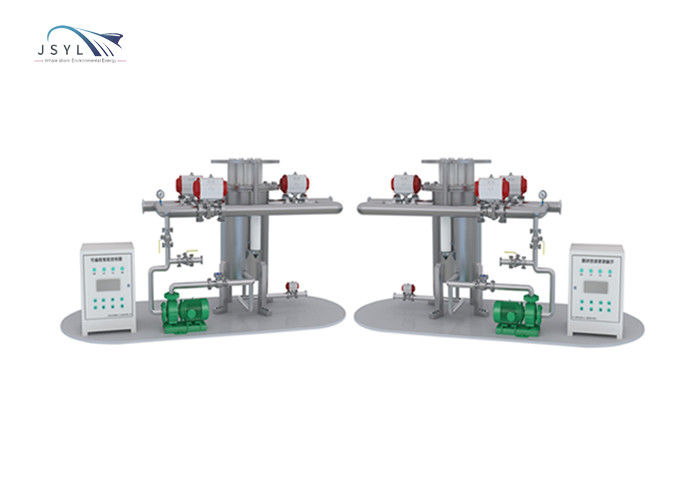

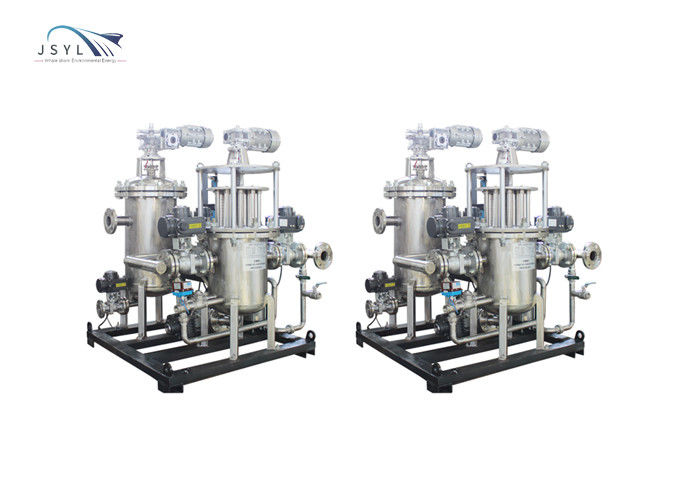

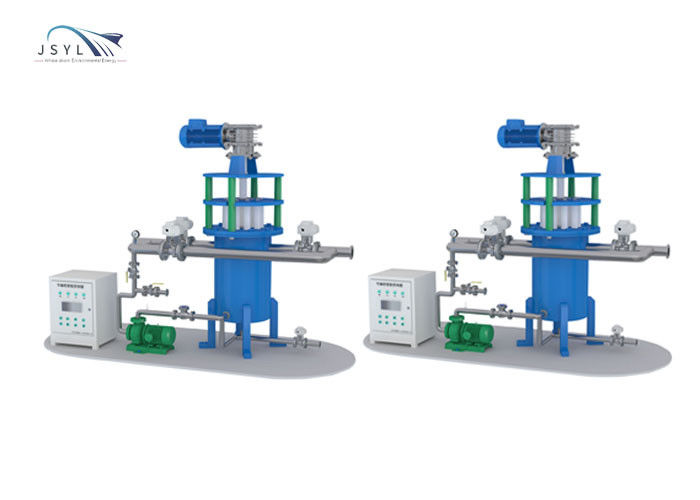

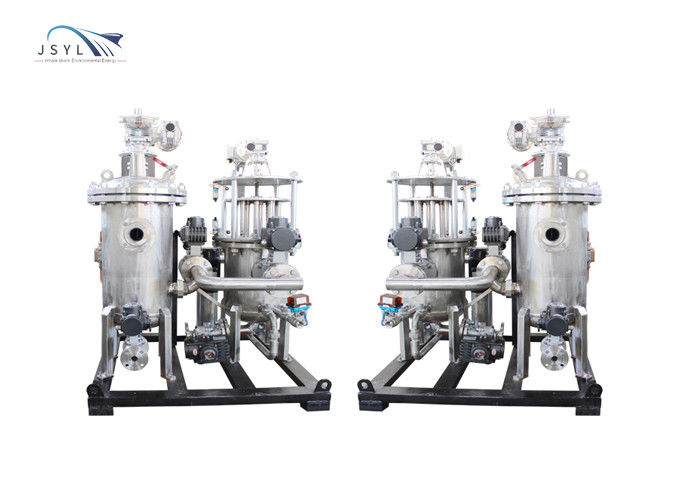

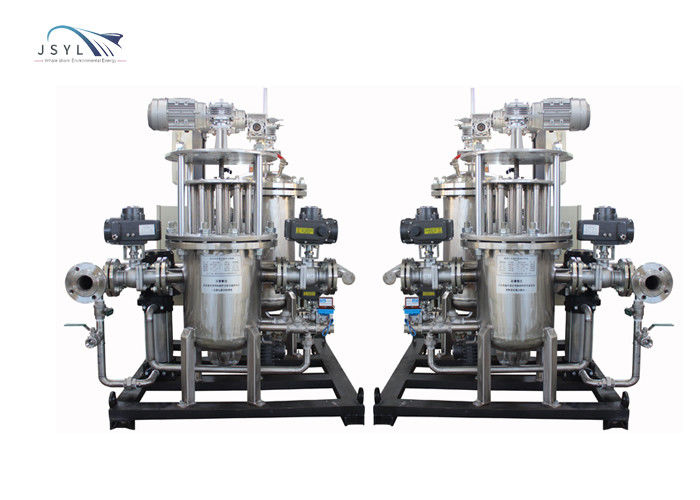

Factory customized magnetic iron removal filter
Describe
JSYL-CC magnetic filter is a kind of high-efficiency automatic magnetic filter/magnetic separator, commonly known as iron separator. The magnetic filter adopts permanent magnet iron removing design, and uses the magnetism of the magnetic rod to remove iron filings, iron powder and other impurities. Has a good effect of removing iron filings.
Features:
1: Large flow capacity, suitable for filtering high content impurities
2: Fully automatic intelligent control, closed operating system; low cost
3: Fully automatic filtration and separation of ferromagnetic particles
4: Slag discharge and anti-blocking system
5: Tube bottom anti-pile system
6: Support on-site adjustment of control parameters at any time
| Product name | Magnetic liquid filter |
| Model: | JSYL-CC |
| Specification: |
DN32~300
|
| Shell material: | 304 304L 316 316L |
| Sealing gasket: | Nitrile rubber, PTFE, metal gasket |
| Ambient temperature: | 0°C to 120°C |
| Nut bolt: | 304 304L 316 316L |
| Connection mode: | Flange connection threaded connection |
| Working pressure: | 0.1-2.5MPA |
Application range:
Used in food and beverage, metal processing, pharmaceuticals, ceramics, paper, cosmetics, fine chemicals and other industries to protect key equipment from iron particles.
