DN25 20 Micron Automatic Backflush Filter 2-3m3/H Self Cleaning Oil Filter
-
High Light
20 Micron automatic backflush filter
,automatic backflush filter 2m3/H
,3m3/H Self Cleaning Oil Filter
-
Applicable IndustriesManufacturing
-
Core ComponentsFilter Element, Valve, Motor
-
Voltage220/380
-
Power0.55-2.2KW
-
Warranty1 Year
-
After-sales Service ProvidedOnline Support
-
Filter MediaWater, Oil
-
Shell MaterialCarbon Steel Or 304
-
Place of OriginHeBei China
-
Brand NameJSYL
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Timegenerally 35 days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability10,000 sets per month

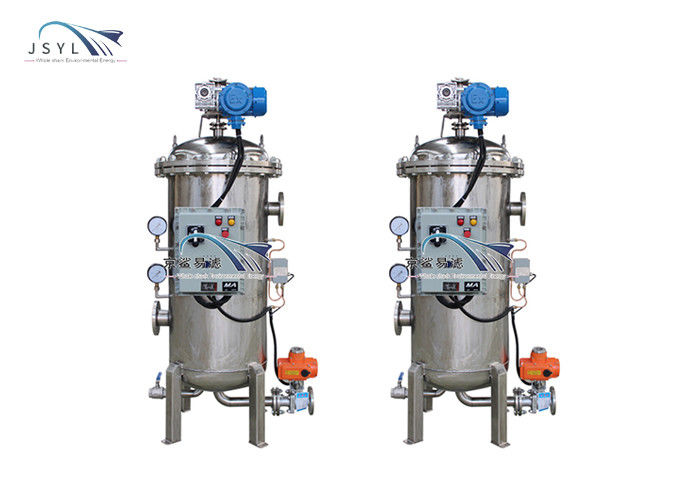

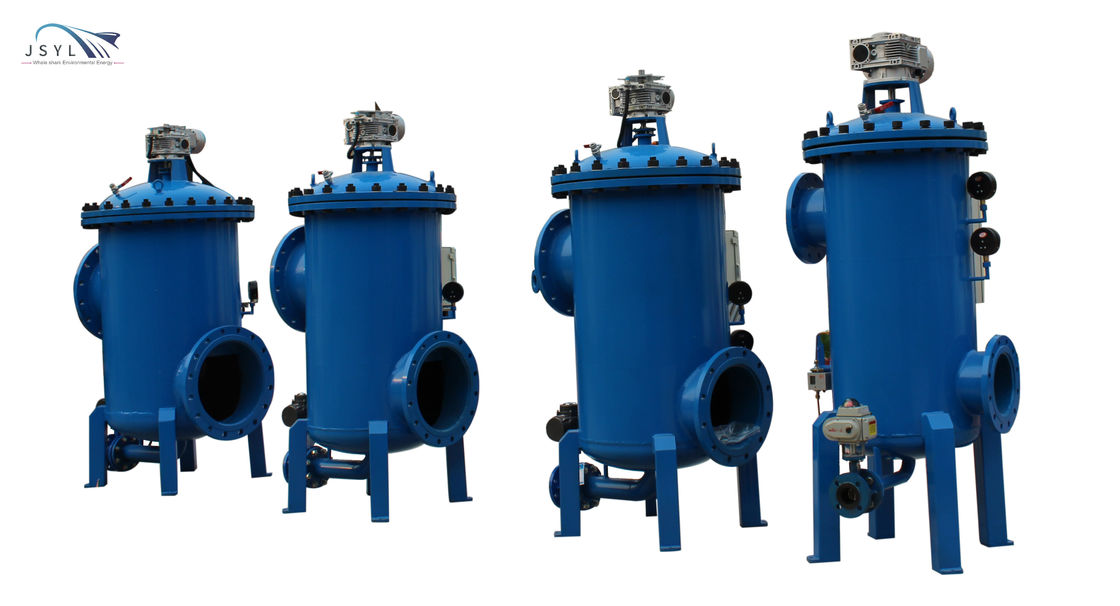

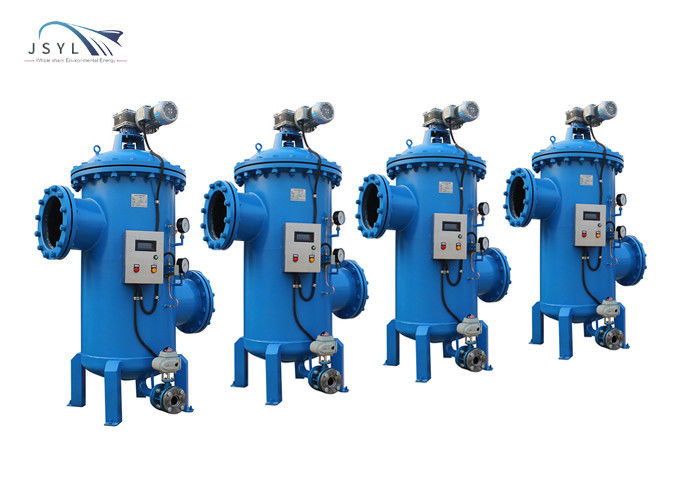

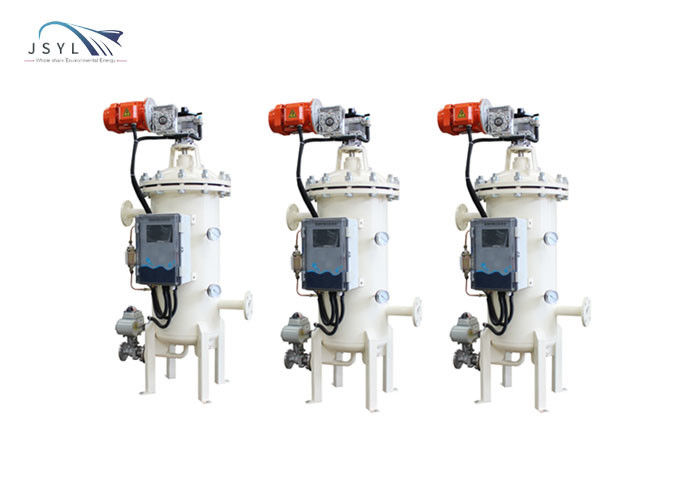

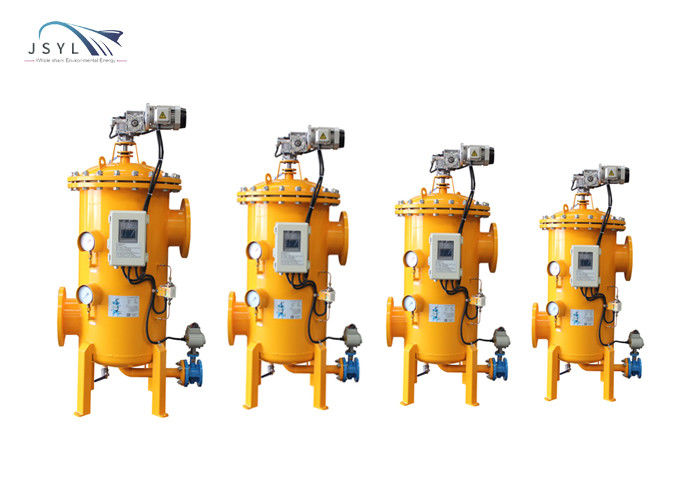

DN25 20 Micron Automatic Backflush Filter 2-3m3/H Self Cleaning Oil Filter
DN25-20 micron automatic backwash filter
Describe
The JSYL series of simplex backwash filters are equipped with an automatic cleaning control system, integrated pressure difference control and time control parallel control functions, which can control the filter to operate efficiently according to the working conditions, and the intelligent control can be remote; it supports on-site control and adjustment.
| PRODUCT PARAMETER | |||
| Specifications | Equipment parameters | Specifications | Equipment parameters |
| Equipment model |
JSYL-DDX-ZD-DN25 |
Cleaning method | Equipment's own filter element backwash |
| Shell selection | Carbon steel/stainless steel | Filter element form | Multi-layer woven mesh sintered |
| Single machine flow |
2-3m3/h
|
Number of filter elements |
5-6 elements
|
| Rated pressure | 1.6MPa/2.5MPa/4.0MPa | Filtration accuracy | 20 μm |
| Applicable viscosity (cp) | 1-40cp | Applicable temperature (°C) | 0-95°C |
| Operation mode | Fully automatic intelligent control | Filter element replacement | Large cover flange replacement filter element |
|
Backwashing components
|
304 stainless steel | Filter element design | Cover replacement |
| Power unit | Compound reducer | Position proximity switch | Inductive |
| Backflushing node | Seven-star node disk | Pressure gauge | Seismic pressure gauge |
| Filter replacement cycle | Half a year/more than one year | Installation method | Vertical/Horizontal |
Applicable fields:
Petrochemical pipelines, energy chemical pipelines, fine chemical pipelines, water supply and drainage and sewage pipelines, water quality treatment, industrial manufacturing cooling water circulation filtration, water supply and drainage pipeline water filtration, paper industry production wastewater filtration, power plant cooling water circulation filtration, municipal, agricultural garden irrigation water impurities Filtration, and organic liquid fertilizer pipeline filtration, food and beverage liquid impurity filtration, mechanical processing, papermaking, steel industry, etc.
Our products are sold all over the world, you can rest assured.
