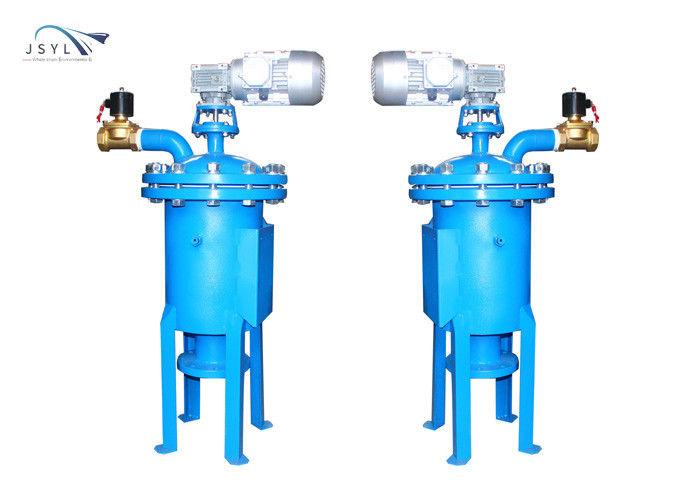

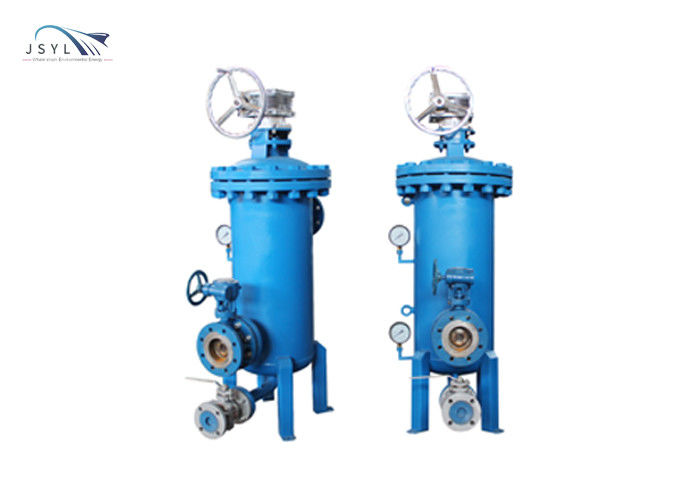

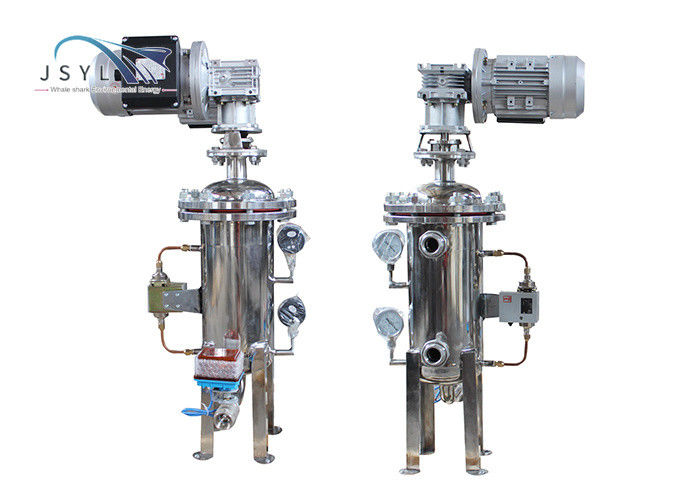

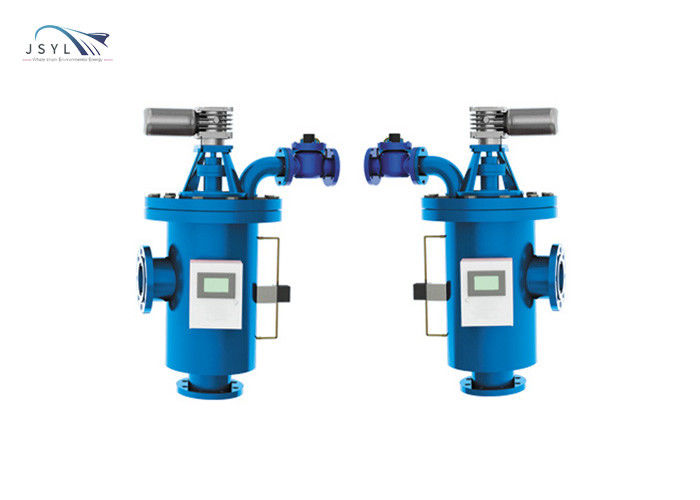

OEM Automatic Self Cleaning Simplex Filters Seawater Backwash Filtration System

Automatic simplex self-cleaning filter seawater filtration system

Describe

Filter:
Liquid flows into the interior from the inlet. The liquid flows inward from the outer surface of the filter screen, and the impurities are trapped on the outer surface. Then, the liquid flows out from the outlet; as time goes by, the impurities gradually increase and the pressure difference rises. We can start cleaning the filter screen according to the preset pressure difference or timing.

Clean:
The motor drives the brush to rotate horizontally to clean the filter screen. When the brush rotates, the impurities are brushed off and filtered to the bottom of the filter along the filter screen, and the impurities with a larger specific gravity are deposited in the dirt collector. Each cleaning consists of many strokes. After the filter is cleaned, the filtering capacity is restored. The filtration will not be interrupted during self-cleaning.
Freed:
After many cleaning cycles, impurities will accumulate to a certain amount. Open the drain valve regularly to discharge the waste liquid containing high-concentration impurities. If necessary, it can also be recycled.

Features:

1. The 304 material rotating brush can directly brush off the impurities, which is conducive to filtering viscous liquids and removing sticky, soft and suspended impurities;
2. Simple structure, convenient disassembly and assembly; after removing the brush, the filter screen is convenient to take out, and the internal cleaning is convenient;
3. Fully automatic operation, continuous online filtering, ending the heavy filter replacement and cleaning work;
4. The discharged waste liquid with high impurity concentration can be recycled to reduce the loss of high-value materials.
5. The filtration pressure loss is small, the flow rate is stable, and energy saving is conducive to the continuous stability of the whole process;
6. Sealed and filtered to prevent leakage of hazardous materials, which is beneficial to safe production and employee health;

After-sales service:
1. The product implements three guarantees, the quality period is one year, and the technical service is provided for life.
2. The supplier provides the basic drawings of the product and is responsible for providing technical guidance when making the foundation.
3. During the commissioning and equipment commissioning warranty period, if the equipment is damaged due to our responsibility, we will repair and replace it free of charge. If the equipment is damaged due to improper transportation and delivery management, we have the responsibility to cooperate with the buyer. Do a good job in service.
4. After the contract is signed, we will train the demand-side operation and maintenance personnel for free.
5. During the commissioning and equipment commissioning warranty period, if the equipment has quality problems, we guarantee to reply immediately after receiving the notice from the demander, and send technicians to the scene to deal with the problem within 4 hours.
