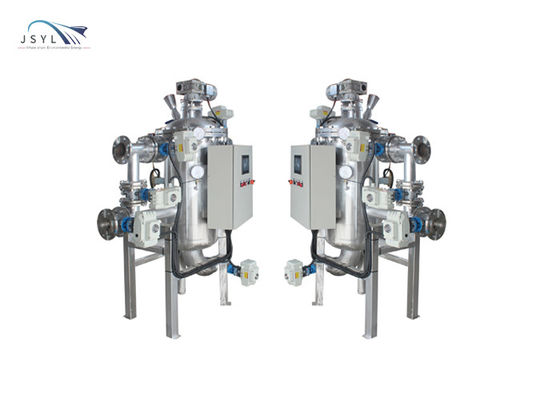

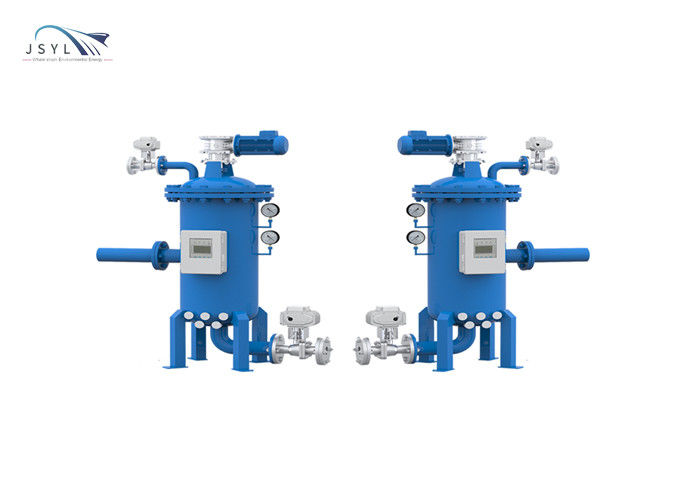

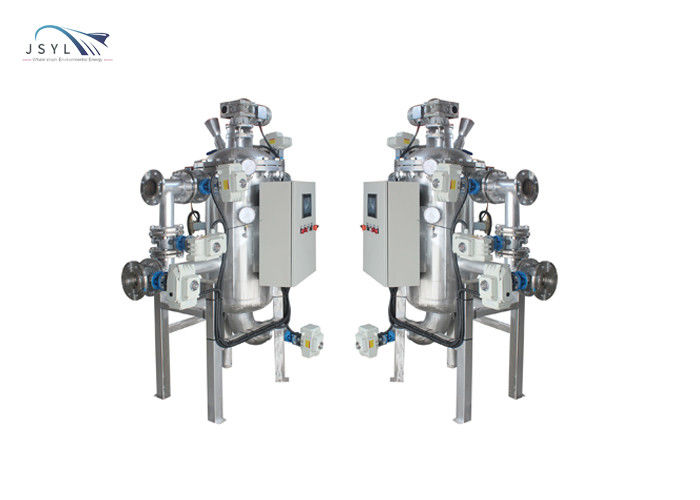

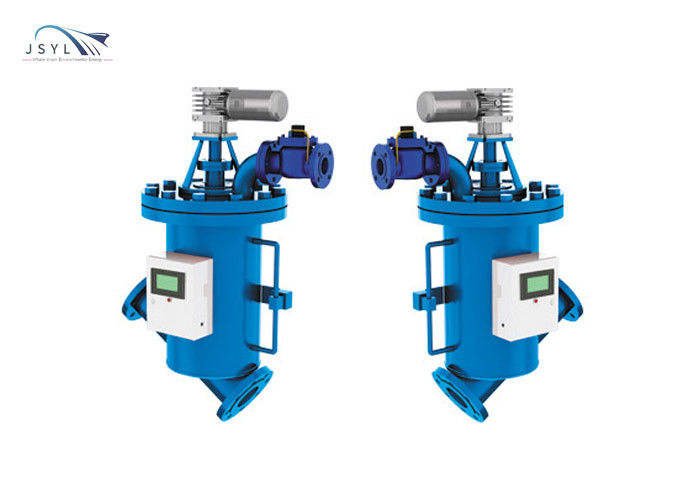

JSYL-S4 Wedge Wire Filter Element Automatic Backwash Filter Water Treatment

JSYL-S4 wedge wire water treatment equipment filter


Describe

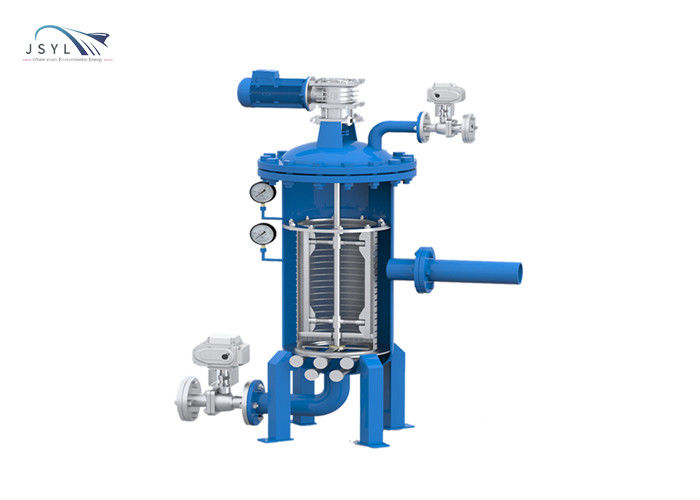

1. Normal working mode: the liquid enters the body filter through the inlet to filter, the liquid is filtered by the filter element, and the impurities in the liquid are deposited on the stainless steel filter screen. When the inlet pressure and outlet pressure reach the set value; the system automatically starts automatically. Cleaning procedure; the sensor transmits information to the power distribution system, and the power distribution system receives the pressure signal to trigger: the electric motor drives the brush to rotate to clean the filter element; at the same time the drain valve opens to drain; the cleaning time is 10-60 (settable) seconds, cleaning At the end, the valve is closed; the motor stops running; the system returns to the initial state; and the next filtration process begins.
2. Recoil mode: the water inlet and outlet of the filter are closed, the air valve check valve is opened; gas is delivered to the equipment, the direction of force is changed, and the filter element is recoiled; the dirt attached to the inner wall of the filter element is recoiled off. Close the air inlet valve, then open the water inlet valve, and the dirt will be discharged from the drain valve along with the liquid; open the water outlet valve and close the drain valve; the backwash is completed;
3. Gravitational ultra-cleaning: After the above process is repeated N times continuously; the dirt accumulated on the inner wall of the filter element forms a stubborn dirt layer, which is difficult to be cleaned. At this time, the gravitational ultra-cleaning mode is activated; the motor drives the brush to rotate, and the outlet valve closes ; The pressure balance is formed inside and outside the filter element of the filter equipment; at this time, the stubborn dirt is easily cleaned by the brush, and the sewage valve is opened; A121 discharges the dirt; at the end of the cleaning, the sewage valve is closed and the water outlet valve is opened. The equipment returns to the normal filtering state;

Features

1: A single unit has a large processing flow and can be used in parallel, with a maximum of 3000m3/h per unit.
2: Large filtration area and high dirt holding capacity. The accuracy (10um-3000um) can be customized according to customer requirements.
3: Automatic cleaning of sewage and uninterrupted water supply during cleaning and sewage, low water consumption for cleaning and sewage, and short cleaning time.
4: Live filter element assembly, easy to disassemble, easy to replace, easy to maintain.
5: The unique design of the cleaning brush (with a spring, and can be adjusted telescopically, unique)
6: The motor is automatically switched between forward and reverse (currently on the market, it can rotate in one direction, which is unique).

Applicable industries and liquids
1. Applicable industries: water treatment, steel, pulp and paper, mining, petrochemical, mechanical processing, municipal administration, irrigation, etc.
2. Typical applicable liquids: groundwater, seawater, lakes, reservoir water, pond water, cooling water circulation, chilled water, high and low pressure spray water, spray water, hot water, sealing water, bearing cooling water, oil well water injection, process circulating water, Processing coolant, cleaning agent, cleaning water, etc.
3. Filtration function: remove large particles, purify liquid, and protect key equipment
4. Filter type: backwash filter, automatic continuous online filtering
