100-8000 Microns Manual Wedge Wire Filter Element

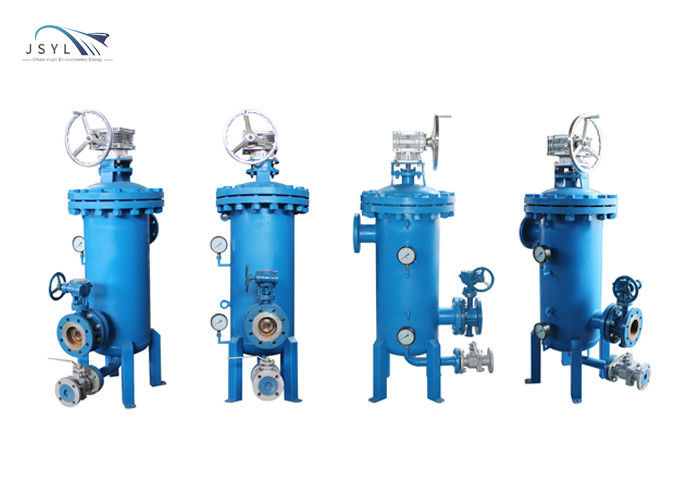

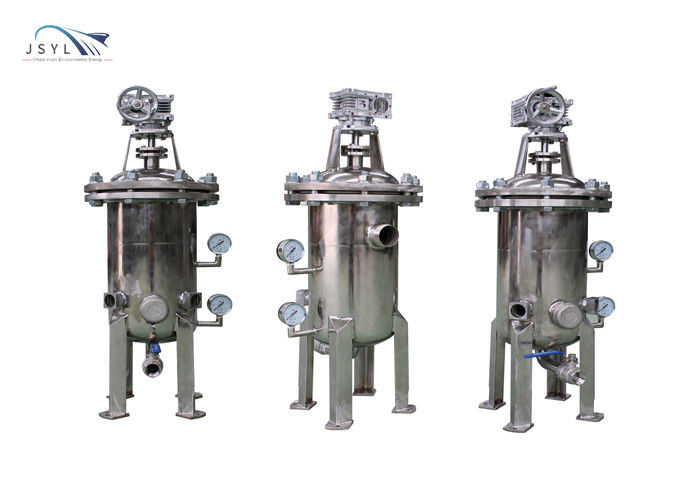

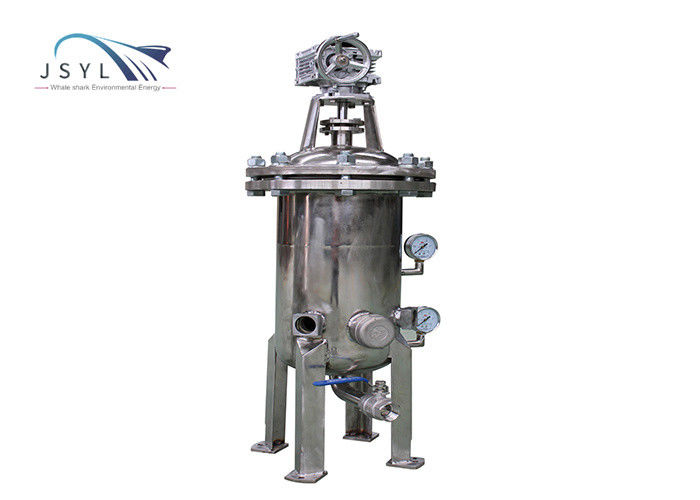

Manual wedge wire mesh filter


Describe

Normal working mode: The liquid enters the body filter through the inlet to filter, the liquid is filtered by the filter element, and the impurities in the liquid are deposited on the stainless steel filter screen. When the inlet pressure and outlet pressure reach the allowable range value; the system needs manual self-cleaning Equipment; the hand-cranked reducer drives the brush to rotate to clean the filter element; at the same time, the drain valve opens to discharge the sewage; the cleaning time (the pressure difference between the inlet and outlet is zero), the valve closes when the cleaning is over; the reducer stops operating; the system returns to the initial state ; Start to enter the next filtration process.

Features

1: Large flow; small volume; large filter area
2: Continuous flow during self-cleaning and sewage, low water consumption and short cleaning time.
3: The filter element assembly is easy to disassemble, replace and maintain.
4: The unique design of the cleaning brush (with a spring and retractable adjustment; unique)
5: Manual intake valve/drain valve, the equipment stops working, and the internal sewage can be discharged manually

Applicable industry:
It is widely used in water system filtration in central air conditioning, power plants, sewage treatment plants, metallurgy, steel and other industries.
