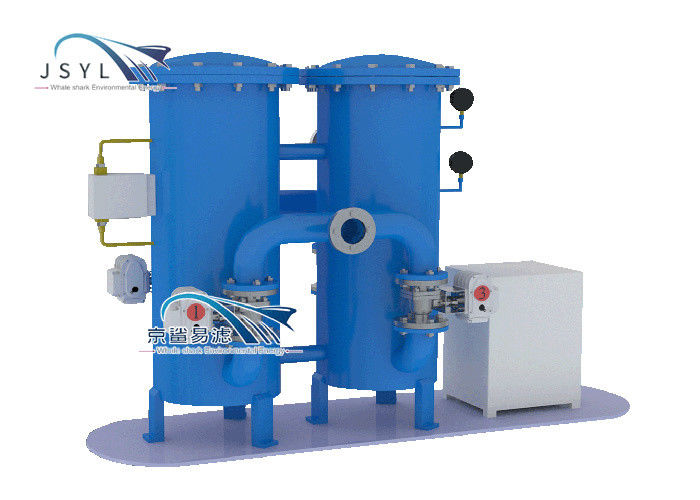

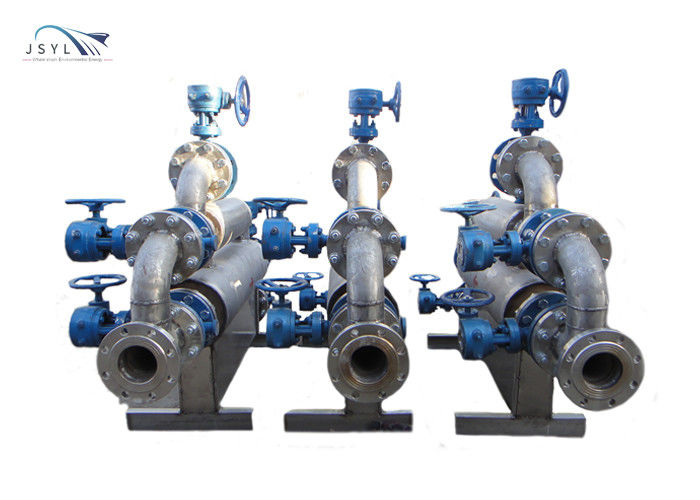

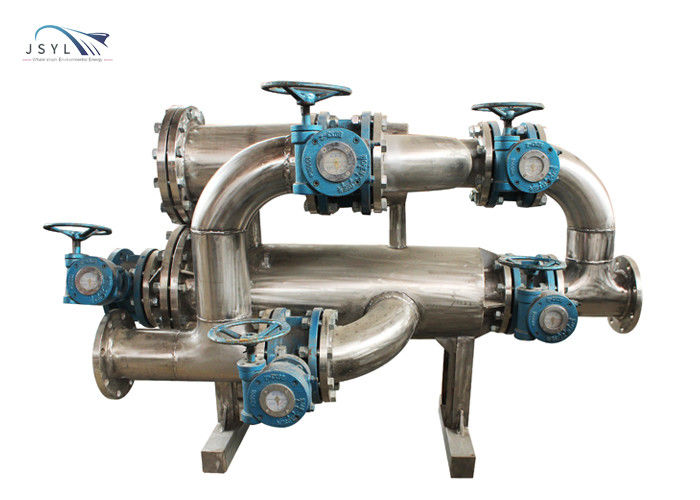

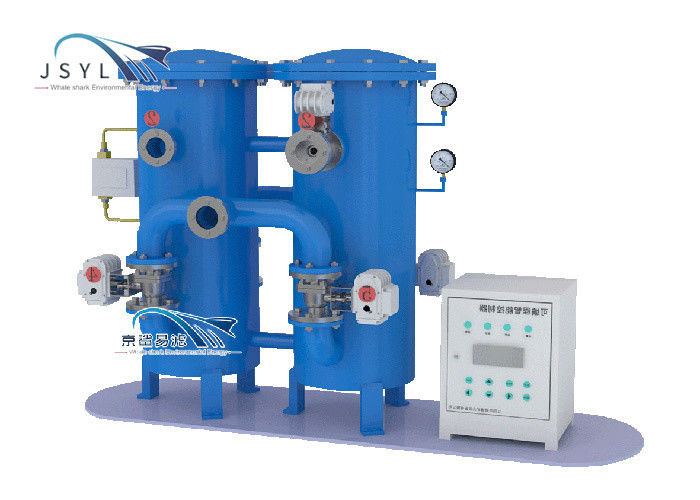

JSYL-S5-DN50 double complementary backwash filter
Introduction

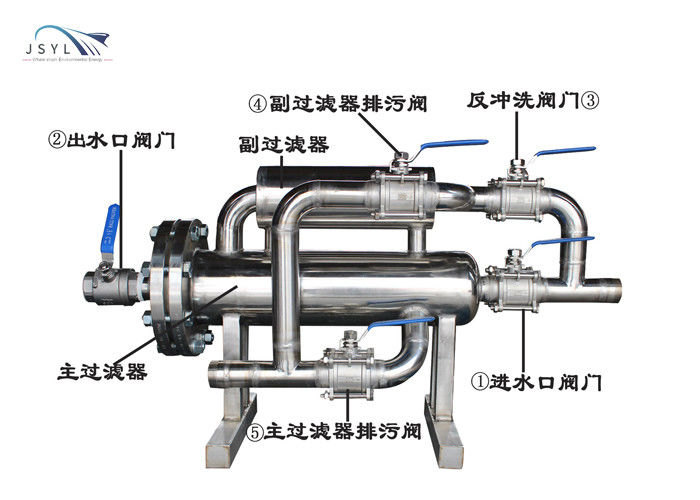

The dual-channel pipeline design successfully overcomes the shortcomings of single-tube filter backwashing with dead ends; dual channels can be filtered at the same time and each other backwashed; the equipment is backwashed with filtered water; there is no dead end and absolutely clean. Modular design; the filter element is live; the valves and pipes are all connected by flanges; it is easy to disassemble and clean and easy to maintain;
Features
<1> Revolutionary dual channel
<2> Dual-channel filtration and mutual backwashing
<3> Filter element backwashing (lower maintenance cost)
<4> Living components, easy to replace and easy to maintain
<5> High filtration accuracy (1-3000 microns)
<6> Intelligent control system
| Equipment: | equipment parameters |
| Device model: | JSYL-S5-DN50 |
| Shell material selection: | carbon steel/304 |
| Filter element accuracy: | 1-3000 microns |
| Single machine flow: | 15 m3/h |
| Rated pressure: | 1.0-4.0MPa |
| Operation mode: | automatic intelligent control |
| Installation method: | vertical/horizontal |
| Equipment weight: | 38 KG |
| Equipment size: |
1150*220*620 |
Advantage
1. Fully automatic intelligent control
2. Small size, large flow, high precision
3. Intelligent online backflushing does not stop and flow continuously;
4. The body replaces the filter element, quick-plug design, easy to replace;
5. Multi-filter element structure; precision can be adjusted;
6. It can be installed vertically/horizontally, which significantly saves installation space
7. The filter element has an online recoil precision of 5 microns, which can be used repeatedly.
Our products are sold all over the world, you can rest assured.
