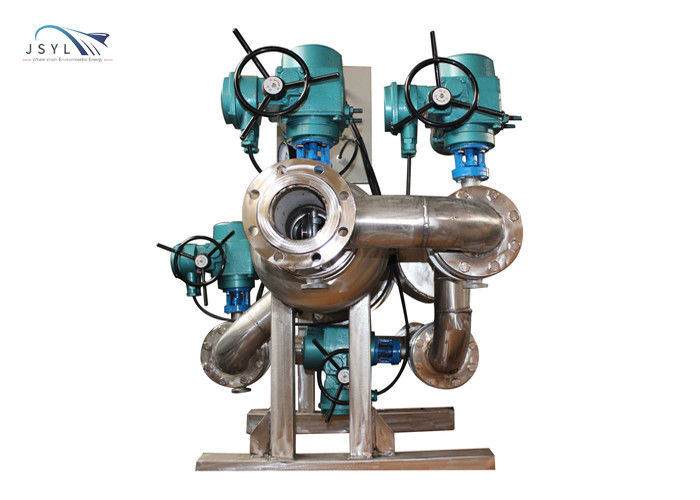

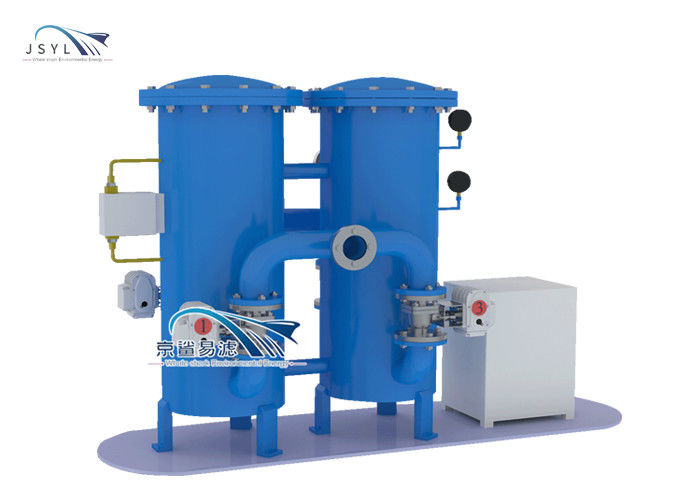

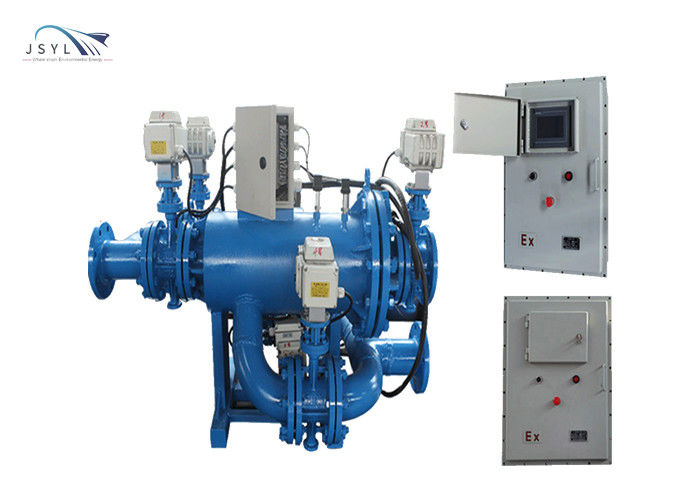

238m3/H DN200 Complementary Backwash Filter Dual Channel

JSYL-S5-DN200 double complementary backwash filter


Introduction

The dual-channel pipeline design successfully overcomes the shortcomings of single-tube filter backwashing with dead ends; dual channels can be filtered at the same time and each other backwashed; the equipment is backwashed with filtered water; there is no dead end and absolutely clean. Modular design; the filter element is live; the valves and pipes are all connected by flanges; it is easy to disassemble and clean and easy to maintain;

Advantage
1. Fully automatic intelligent control
2. Small size, large flow, high precision
3. Intelligent online backflushing does not stop and flow continuously;
4. The body replaces the filter element, quick-plug design, easy to replace;
5. Multi-filter element structure; precision can be adjusted;
6. It can be installed vertically/horizontally, which significantly saves installation space
7. The filter element has an online recoil precision of 5 microns, which can be used repeatedly.

Application industry:
1. Food and beverage: security filtration before filling; industrial food production process water; syrup and other raw material filtration; removal of impurities generated in the blending process; process filtration of chocolate, jelly, beer, etc.; filtration of suspended solids and sediments in beverages .
2. Automobile manufacturing, electrophoresis paint, metal paint, varnish filtration; engine processing coolant filtration; welding part cooling water filtration; electronics industry pure water; removal of impurities in the copper foil electrolytic stabilization tank, wafer cutting and grinding wastewater circulation filtration;
3. Water quality treatment: filtration of sand, algae and silt deposits in raw water; filtration of steel industry, air conditioning systems, compressor circulating cooling water and frozen water; filtration of removing scale and calcification in water pipes; pre-filtration of membrane purification liquid , Intercept ion exchange resin and so on.
4. Energy and chemical industry: The traditional energy chemical industry is a high-consumption, high-emission, and high-pollution industry; to solve the environmental protection problems of energy and chemical industry, the first thing to do is to solve the problems of recycling and recycling of sewage and discharge management in the production process; so industrial sewage Treatment and sewage recycling are the goals pursued by the company; the dual-pass complementary backwash filter has achieved the goals pursued by energy and chemical companies.
5. Petrochemical industry: oil well water injection, process circulating water, cooling water filtration; lubricating oil, jet fuel and other oil filtration.
6. Fine chemical industry: Resin raw material filtration, remove fibers, gels, and filter solvents in paint; large particles of impurities in ink and particles of substandard grinding fineness, remove agglomerated impurities after mixing reaction; filter large particles of carbon black in adhesives And filler.
