High Light
8000m3/h Shower Water Backwash Filter
,40cp Shower Water Backwash Filter
,ODM Low Pressure Backwash Filter
-
Product NameSolid-liquid Separator
-
OriginHebei China
-
Applicable IndustriesPower Plants, Steel Mills, Chemical Plants, Agriculture, Breeding, Medicine, Food, Water Treatment Industries
-
Warranty ServiceVideo Technical Support, Online Support Maintenance And Repair Services
-
Shell Material304/carbon Steel
-
FilterSintered Filter
-
Cleaning ModePressure Difference, Time
-
Standard Design Pressure0.2-4.0 MPa (higher Pressure Can Be Customized.)
-
Place of OriginHeBei China
-
Brand NameJing shark
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Time15 days
-
Payment TermsT/T
-
Supply Ability10,000 units per month

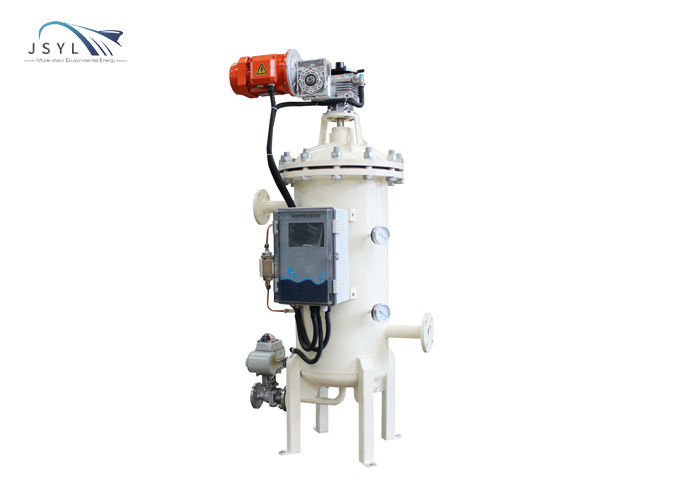

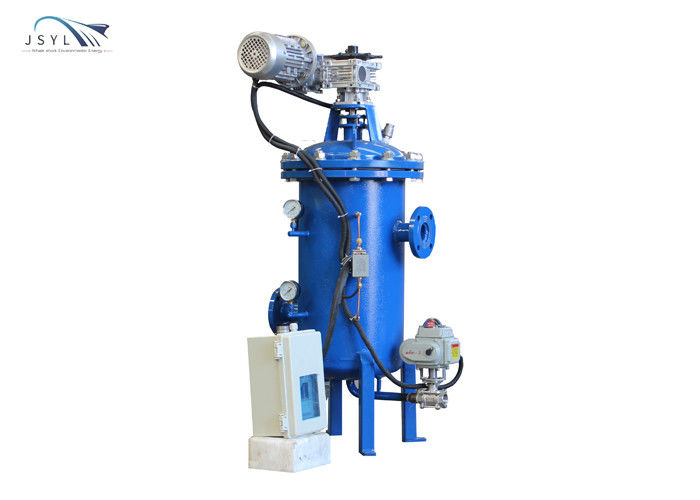

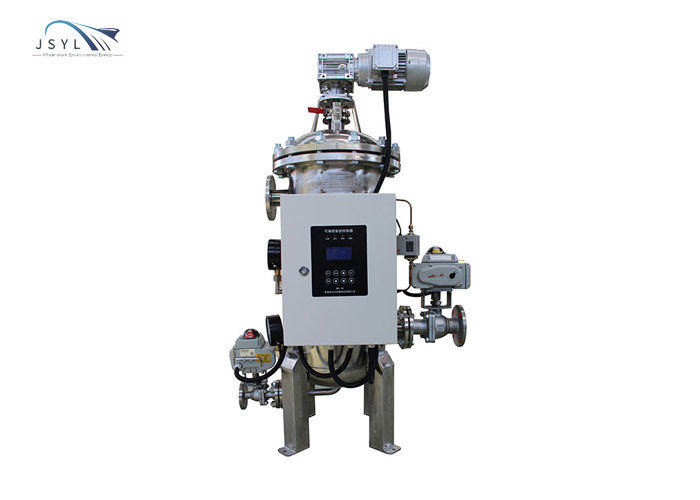

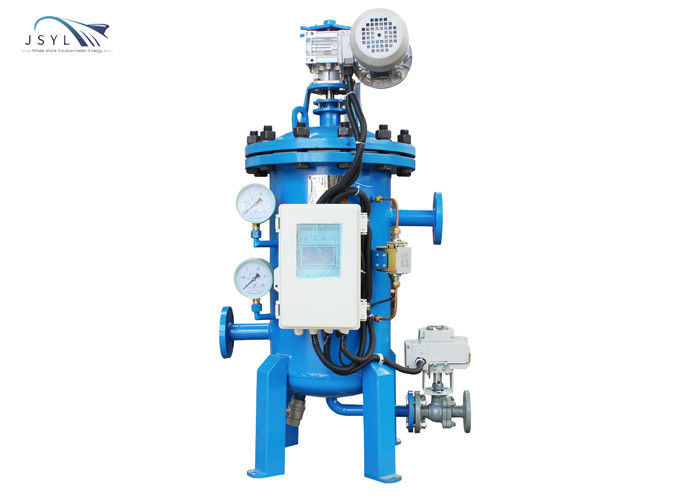

8000m3/H Low Pressure Shower Water Backwash Filter
Low pressure shower water backwash filter
Introduction

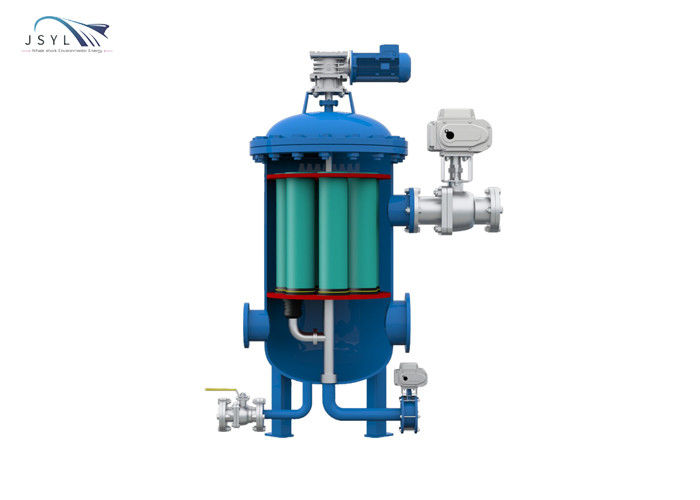

The JSYL series is a new generation of backwash filters. The interior adopts an integrated porous filter design. When the filter screen is blocked, the unique backwash rotating arm will clean the filter screen one by one. As a high-end recoil filter, JSYL filter is designed for customers, mainly focusing on product quality and high reliability, using key components of the world's top quality (such as filter motor, intelligent control system, etc.).
Features
The JSYL filter can remove various solid particles in water and low-viscosity liquids (such as sea water, machined cooling water) to meet the liquid cleanliness requirements of the system operation and the next process. It can also be used to protect key downstream equipment from particle blockage, abrasion or fouling, and improve its operating efficiency and lifespan. JSYL filter can automatically filter continuously online, reducing downtime costs, maintenance costs and labor costs. It is an advanced water and water-based liquid filtration solution.
| PRODUCT PARAMETER | |||
| Specifications | Equipment parameters | Specifications | Equipment parameters |
| Equipment model | JSYL-DX-ZD-DN (25-800) | Cleaning method | Device's own filter element backwash |
| Shell selection | carbon steel/stainless steel | Filter element form | Multi-layer woven mesh sintered |
| Single machine flow |
3-8000 m3/h
|
Number of filter elements |
6-12 elements
|
| Rated pressure | 1.6MPa/2.5MPa/4.0MPa | Filtration accuracy | 10-2000 microns |
| Applicable viscosity (cp) | 1-40cp | Applicable temperature (°C) | 0-95°C |
| Operation mode | Fully automatic intelligent control | Filter element replacement | Large cover flange replacement filter element |
|
Backwashing components
|
304 stainless steel | Filter element design | Cover replacement |
| Power unit | Compound reducer | Position proximity switch | Inductive |
| Backflushing node | Seven-star node disk | Pressure gauge | Seismic pressure gauge |
| Filter replacement cycle | Half a year/more than one year | Installation method | vertical installation/horizontal installation |
Applicable industries:
Construction circulating water treatment, industrial circulating water treatment, sewage treatment, mining water treatment, golf course water treatment, construction, steel, petroleum, chemical, electronics, power generation, textile, paper, food, sugar, pharmaceutical, plastic, automotive industries And other fields.
Our products are sold all over the world, you can rest assured.
