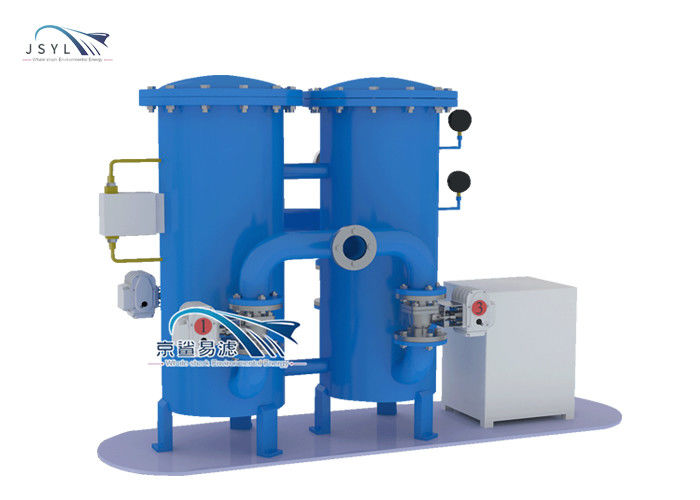

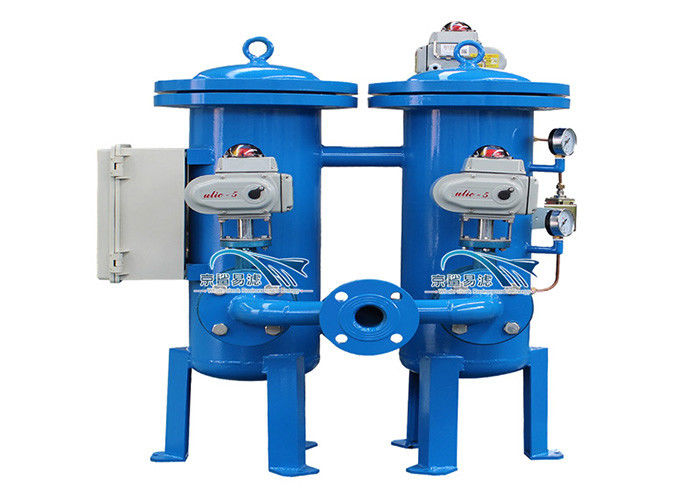

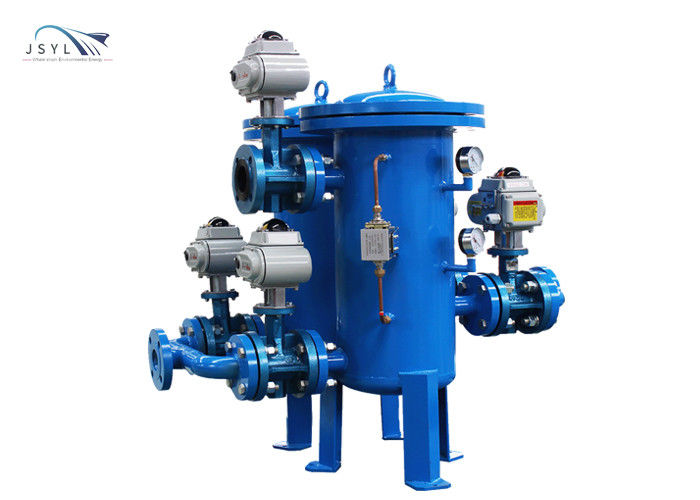

Industrial Duplex Filter
Filter filtering process

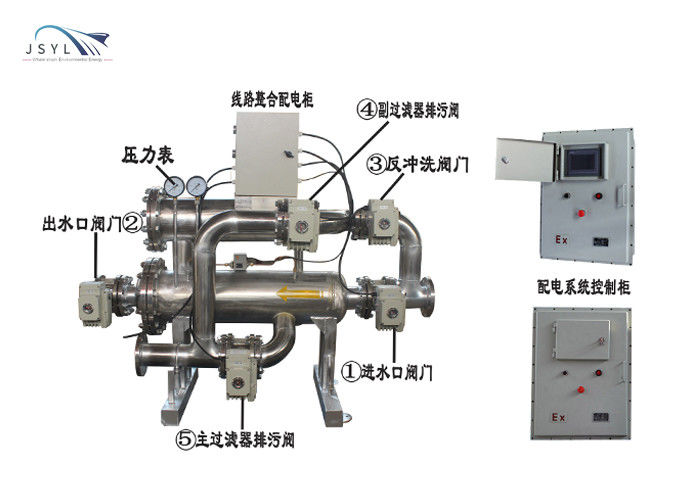

Normal filter process:
1#5#valve is open; 2#3#4#valve is closed;
The main filter backflushing process:
2#3#valve open; 1#4#5#valve closed;
Secondary filter backflushing process:
1#4#valve open; 2#3#5#valve closed;
technical parameter
Product model: DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300;
Single filter water capacity: 1～500m3/h;
Filtration accuracy: 1～3000 μm (five-layer sintered mesh is used below 20μm; wedge-shaped mesh/sintered mesh above 20μm)
Working pressure: 0.5-4.0Mpa;
Pressure loss: ≤ 0.05 Mpa
Working water temperature: -10-200℃ (above 100-200℃ requires special customization)
Sewage discharge time: 10～3000 seconds (can be set by yourself)
Power supply: AC three-phase 380V/ 50Hz
Control interface: PLC touch screen digital display, knob, switch;
Control mode: differential pressure mode, time mode, manual control mode;
Filter type: 304 wedge mesh/sintered mesh, 316L wedge mesh/sintered mesh;
| FILTER SPECIFICATION TABLE | ||||||||
| Model |
Pipe diameter (Inch) |
Inlet and outlet (DN) |
Filtered water M3(H) |
long (mm) |
width (mm) |
high (mm) |
weight kg |
Filtration accuracy (um) |
| JSYL-S5-DN20 | 0.6 | 20 | 2.1 | 750 | 130 | 450 | 15 | 1-3000 |
| JSYL-S5-DN25 | 1 | 25 | 3.8 | 780 | 150 | 490 | 18 | 1-3000 |
| JSYL-S5-DN40 | 1.5 | 40 | 8 | 920 | 180 | 510 | 25 | 1-3000 |
| JSYL-S5-DN50 | 2 | 50 | 15 | 1150 | 220 | 620 | 38 | 1-3000 |
| JSYL-S5-DN65 | 2.5 | 65 | 25 | 1260 | 295 | 880 | 55 | 1-3000 |
| JSYL-S5-DN80 | 3 | 80 | 40 | 1370 | 360 | 1100 | 75 | 1-3000 |
| JSYL-S5-DN100 | 4 | 100 | 70 | 1575 | 480 | 1300 | 150 | 1-3000 |
| JSYL-S5-DN125 | 5 | 125 | 100 | 1860 | 550 | 1450 | 300 | 1-3000 |
| JSYL-S5-DN150 | 6 | 150 | 145 | 2160 | 620 | 1568 | 480 | 1-3000 |
| JSYL-S5-DN200 | 8 | 200 | 238 | 2320 | 810 | 1610 | 800 | 1-3000 |
| JSYL-S5-DN250 | 10 | 250 | 380 | 2540 | 1300 | 2050 | 1000 | 1-3000 |
| JSYL-S5-DN300 | 12 | 300 | 500 | 2760 | 1400 | 2180 | 1200 | 1-3000 |
Advantage
1. Fully automatic intelligent control
2. Small size, large flow, high precision
3. Intelligent online backflushing does not stop and flow continuously;
4. The body replaces the filter element, quick-plug design, easy to replace;
5. Multi-filter element structure; precision can be adjusted;
6. It can be installed vertically/horizontally, which significantly saves installation space
7. The filter element has an online recoil precision of 5 microns, which can be used repeatedly.
