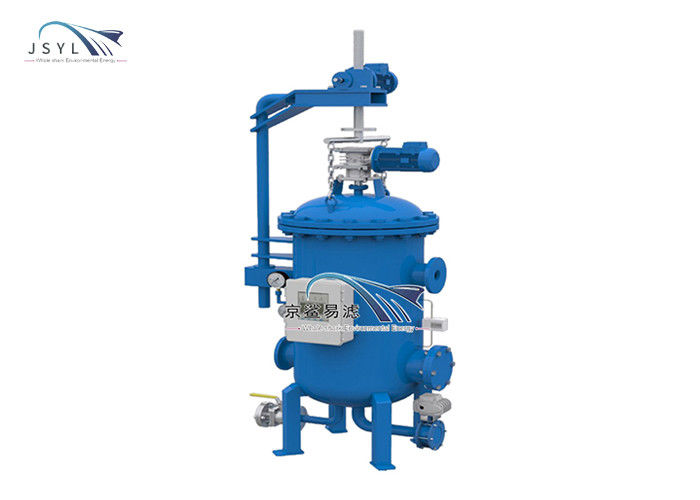

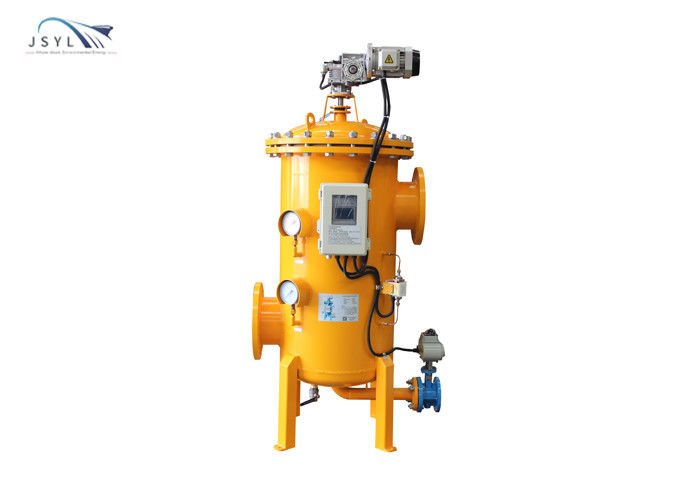

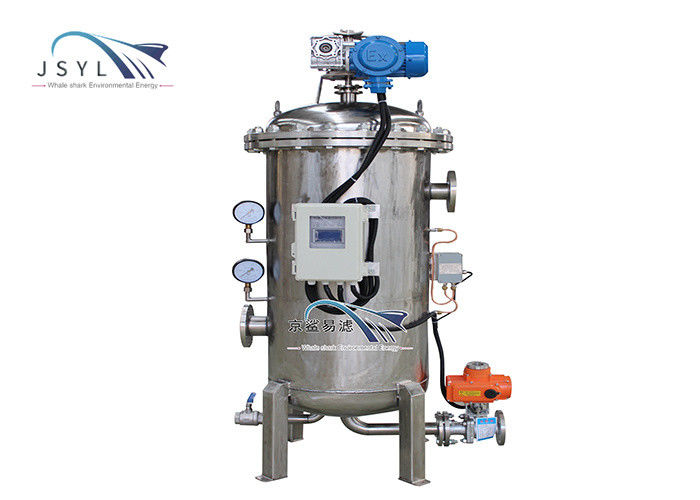

Self-cleaning continuous flow solid-liquid separator
Introduction
The JSYL filter can remove various solid particles in water and low-viscosity liquids (such as sea water, machined cooling water) to meet the liquid cleanliness requirements of the system operation and the next process. It can also be used to protect key downstream equipment from particle blockage, abrasion or fouling, and improve its operating efficiency and lifespan.
Advantage
1. The filter equipment control system is sensitive and accurate. It can flexibly adjust the backwash pressure difference and time setting value according to different water sources and filtration accuracy.
2. During the backwashing process of the filtering equipment, each (group) filter screens are sequentially backwashed; to ensure that the filter screens are cleaned safely and efficiently, and other filters are not affected, continue to filter.
3. The filter equipment adopts pneumatic drain valve, the backwashing time is short, the backwashing water consumption is small, and it is environmentally friendly and economical.
| PRODUCT PARAMETER | |||
| Specifications | Equipment parameters | Specifications | Equipment parameters |
| Equipment model | JSYL-DX-ZD-DN(25-800) | Cleaning method | Device's own filter element backwash |
| Shell selection | carbon steel/stainless steel | Filter element form | Multi-layer woven mesh sintered |
| Single machine flow |
3-8000 m3/h
|
Number of filter elements |
6-12 elements
|
| Rated pressure | 1.6MPa/2.5MPa/4.0MPa | Filtration accuracy | 5-1000 microns |
| Applicable viscosity (cp) | 1-40cp | Applicable temperature (°C) | 0-95°C |
| Operation mode | Automatic intelligent control | Filter element replacement | Large cover flange replacement filter element |
|
Backwashing components
|
304 stainless steel | Filter element design | Cover replacement |
| Power unit | Compound reducer | Position proximity switch | Inductive |
| Backflushing node | Seven-star node disk | Pressure gauge | Seismic pressure gauge |
| Filter replacement cycle | Half a year/more than one year | Installation method | Vertical installation |
Applicable fields:
Petrochemical pipelines, energy chemical pipelines, fine chemical pipelines, water supply and drainage and sewage pipelines, water quality treatment, industrial manufacturing cooling water circulation filtration, water supply and drainage pipeline water filtration, paper industry production wastewater filtration, power plant cooling water circulation filtration, municipal, agricultural garden irrigation water impurities Filtration, and organic liquid fertilizer pipeline filtration, food and beverage liquid impurity filtration, mechanical processing, papermaking, steel industry, etc.
Applicable liquid type:
Groundwater, sea water, lake water, reservoir water, pond water, circulating cooling water, chilled water, high and low pressure spray water, water needle water, heat exchange water, sealing water, bearing cooling water, oil well water injection, process circulating water, machining cooling Agent, cleaning agent, cleaning water, etc.
