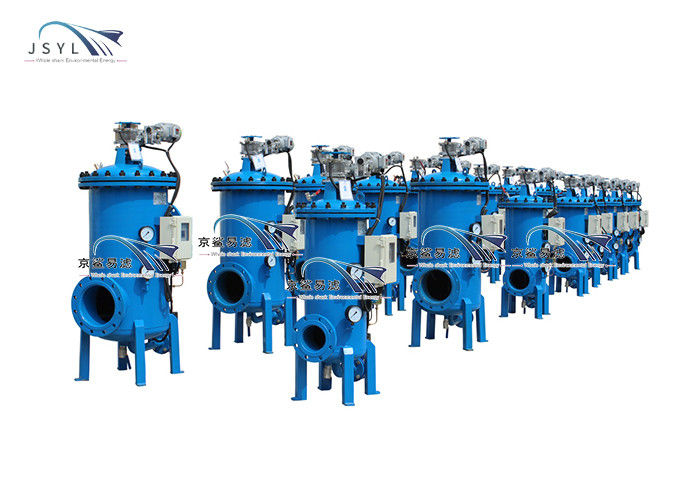

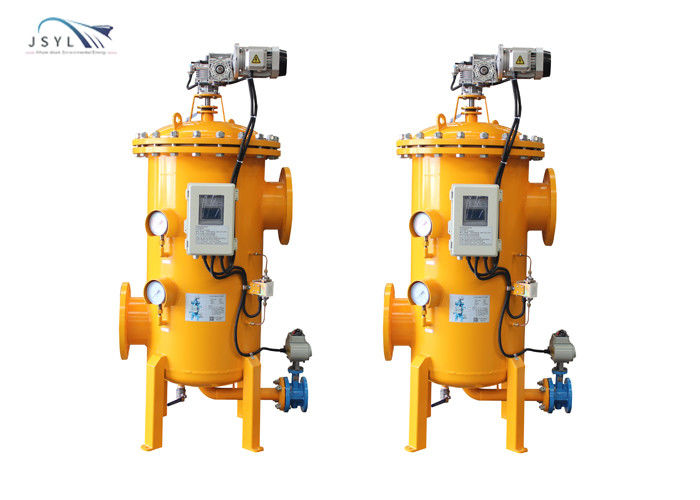

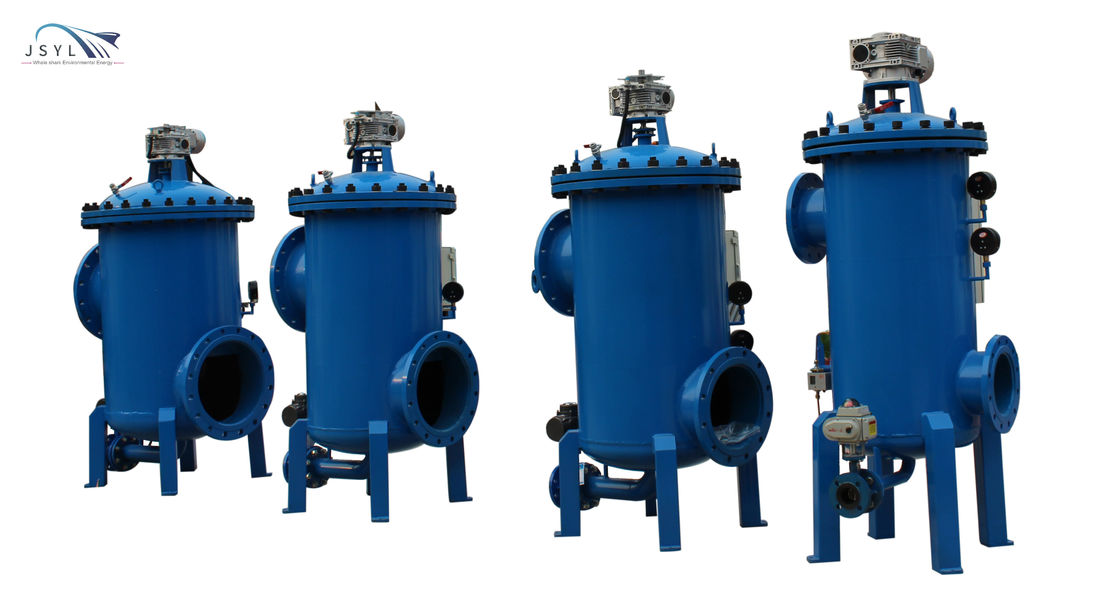

Industrial automatic solid-liquid separator
Introduction
The JSYL series of multi-core precision backwash filters can filter out solid particles in various water and low-viscosity liquids (such as machined coolants), reduce liquid turbidity, purify water quality, and reduce system fouling, bacteria, algae, rust, etc. Produce, keep the material clean, to meet the requirements of system operation and downstream process for liquid cleanliness, and also can be used to protect downstream key equipment from particle blockage, abrasion or fouling, and improve the operating efficiency and life of key equipment. This machine can automatically filter on-line continuously, reducing downtime costs, maintenance costs and labor costs. It is an advanced solution for water and aqueous liquid filtration.
Features
The single machine has a large filtration area and can be finely filtered at a low surface flow rate. The single machine has a large flow rate of up to 8000m3/h. It is installed on the liquid pipeline to remove impurities and particles in the fluid; it has extremely high reliability and can be used for liquids with harsher media, such as Containing sludge impurities, soft sticky impurities, high impurity content, a small amount of hair and fiber impurities.
| PRODUCT PARAMETER | |
| Specifications | Equipment parameters |
| Equipment model | DN25, DN40, DN50, DN100, DN150, DN200, DN250, DN300, DN400, DN500, DN600, DN700, DN800, DN900, DN1000 |
| Applicable liquid | water and low viscosity liquid (˂40cps); impurity level˂300ppm |
| Minimum work |
pipeline pressure difference>0.15MPa
|
| Filter accuracy | 10-2,000μm |
| Design pressure | 0.5/1.0/1.6/2.0/4.0MPa (higher pressure can be customized.) |
| Design temperature | 0-95°C |
|
Single filter area
|
0.45m2-14.40m2 |
| Cleaning pressure drop | 0.05-0.1MPa |
| Control system | Pressure difference and time parallel control |
| Indicator | Differential pressure transmitter |
| Gear motor | Three-phase power supply, 380V, protection grade IP55; worm gear reducer |
| Import and export size | 2"-24" |
| Main body material | carbon steel/304 |
Applicable industries:
Food industry production water and reuse water filtration, production process water supply filtration, equipment cooling water with high water quality requirements; steel, petroleum, chemical, paper, automobile, food, metallurgy and other industries circulating water filtration, reclaimed water reuse, wastewater depth Treatment and filtration, central air conditioning, boiler backwater filtration, groundwater, surface water, swimming pool, landscape water purification and purification, breeding water filtration.
