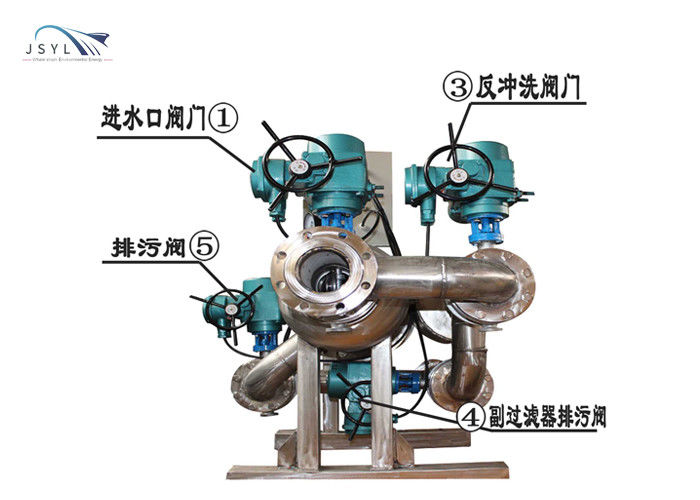

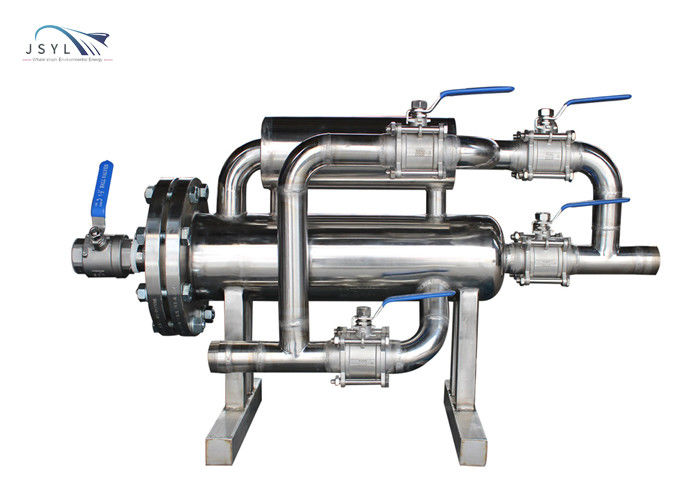

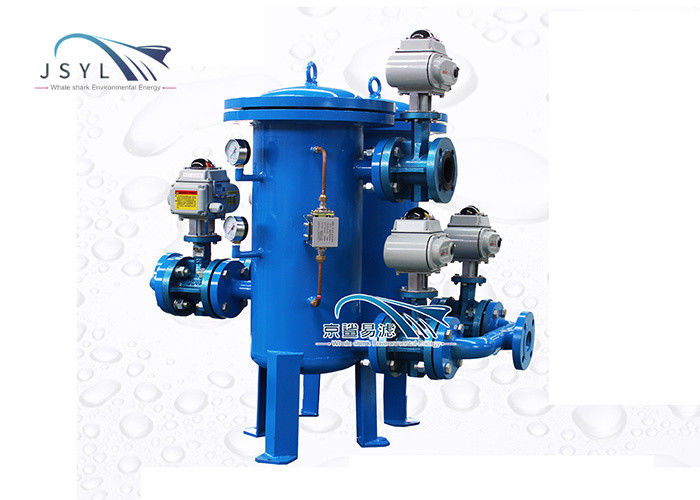

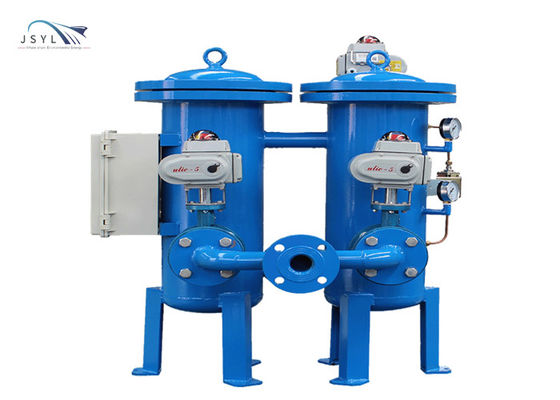

JSYL-S5-DN20 automatic duplex filter
Introduction
The dual complementary backwash filter uses physical action to separate and recover the insoluble and suspended pollutants in the wastewater (including particulate debris and solid oil). According to the different sewage, our filter is equipped with different packages. The filter element achieves the best effect of sewage treatment.
Application industry:
It is suitable for the filtration of impurities and water in food and beverage, water treatment, petrochemical industry, electronics industry, pharmaceuticals, automobiles, paints and coatings, textile industry, etc.
| Equipment: | equipment parameters |
| Device model: | JSYL-S5-DN20 |
| Shell material selection: | carbon steel/304 |
| Filter element accuracy: | 1-3000 microns |
| Single machine flow: | 2.1m3/h |
| Rated pressure: | 1.0-4.0MPa |
| Operation mode: | automatic intelligent control |
| Installation method: | vertical/horizontal |
| Equipment weight: | 15KG |
| Equipment size: | 750*130*450 |
Advantage
1. Fully automatic intelligent control
2. Small size, large flow, high precision
3. Intelligent online backflushing does not stop and flow continuously;
4. The body replaces the filter element, quick-plug design, easy to replace;
5. Multi-filter element structure; precision can be adjusted;
6. It can be installed vertically/horizontally, which significantly saves installation space
7. The filter element has an online recoil precision of 5 microns, which can be used repeatedly.
