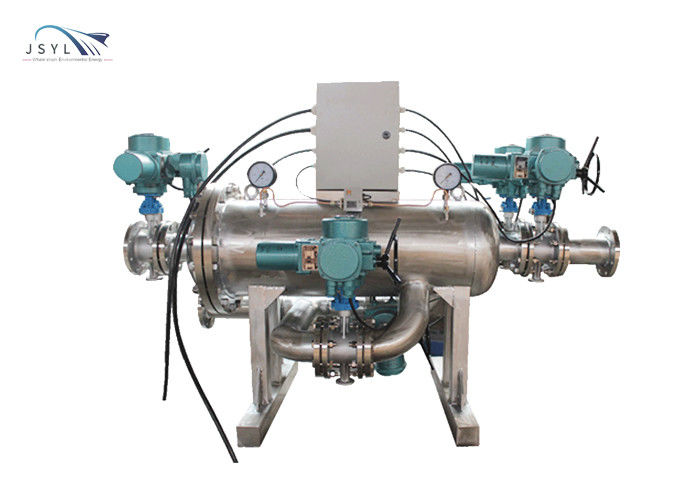

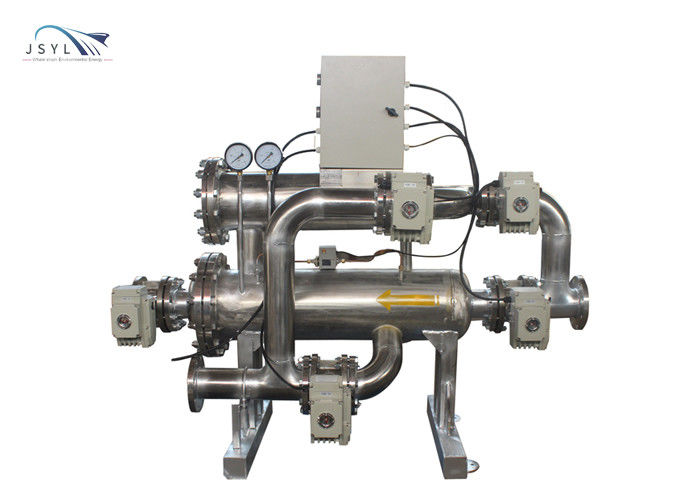

OEM DN300 Complementary Backwash Double Filter

Double filter JSYL-S5-DN300 complementary backwash


Introduction

The double-pass complementary backwash filter operates on pure mechanical principle; it automatically discharges sewage; it flows continuously during the backwash. The cleaning cycle can be adjusted (10-3000s), the filtration accuracy is 1-3000um; the working pressure: 0.3-4.0Mpa; the water filtration capacity of a single unit: 1-500m3/h; It is manufactured with vacuum sintering and other processes; it has high mechanical strength and overall rigid structure; the reasonable structure of the filter element and advanced production technology enable it to have good filtration accuracy, filtration resistance, mechanical strength, wear resistance, and heat resistance Sex and many other advantages

Advantage

<1> Revolutionary dual channel
<2> Dual-channel filtration and mutual backwashing
<3> Filter element backwashing (lower maintenance cost)
<4> Living components, easy to replace and easy to maintain
<5> High filtration accuracy (1-3000 microns)
<6> Intelligent control system

Application industry:

1. Petrochemical industry: oil well water injection, process circulating water, cooling water filtration; lubricating oil, jet fuel and other oil filtration.
2. Fine chemicals: filter resin raw materials, remove fibers, gels, and filter solvents in paint; large impurity particles in the ink, and particles that are not up to the standard grinding fineness, remove agglomerated impurities after mixing and reaction; filter adhesives and fillers Of large particles of carbon black.
3. Industrial manufacturing: lubricating oil filtration, cooling water circulation filtration, heavy metal recovery filtration, ultra-fine grinding oil filtration, cutting fluid, cleaning fluid, filtration of impurities in recovery; used in raw material fields, sintering pellet plants, blast furnaces, rolling mills, continuous Water treatment filtration for cooling water filtration of casting machines and other systems.
4. Papermaking industry: various papermaking water filtration, raw water filtration, high and low pressure spray water, spray water, white water, sealing water, bearing cooling water, cooling tower water, high and low pressure clean water, etc., paper coating filter aid, polymer , Bentonite, starch liquid, defoamer, sizing agent, lubricant, water repellent, fuel, filler, pigment, calcium carbonate, latex, etc.
filter.
5. Mine: Filter underground sprinkling water to ensure the normal operation of the system.
6. Power plant: the precision pretreatment part used for the preparation of high-purity water in power plant boilers, the filtration of generator cooling water and sealing water;
7. Agricultural garden: In sprinklers and sprinkler systems, equipment blockage and wear caused by impurities should be reduced. Therefore, high-precision, highly automated filtration products must be selected to ensure the normal operation of the sprinkler irrigation system.
