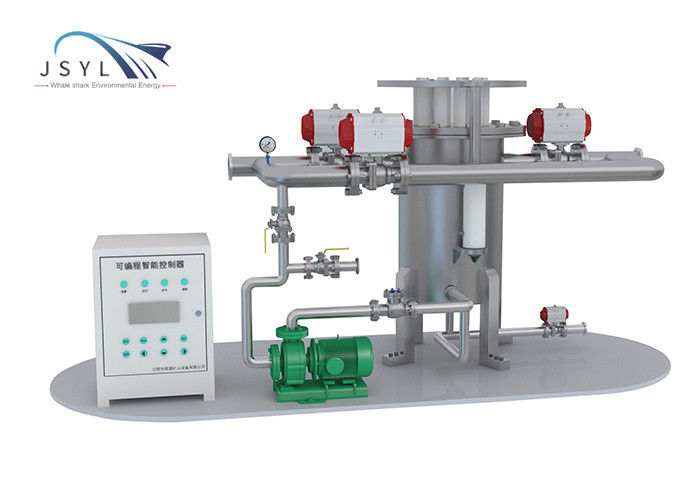

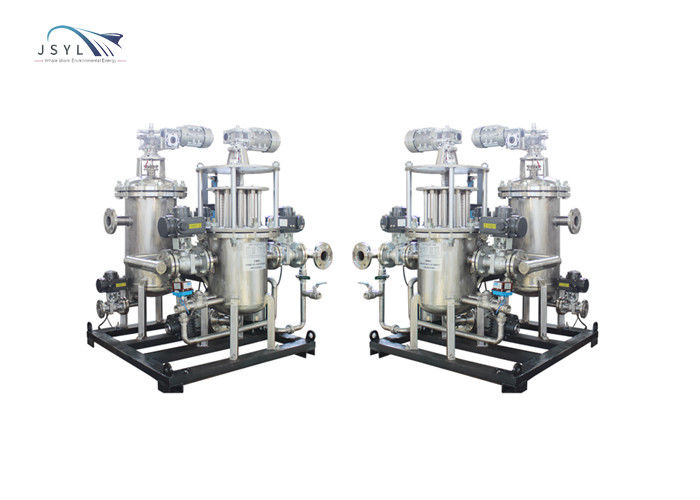

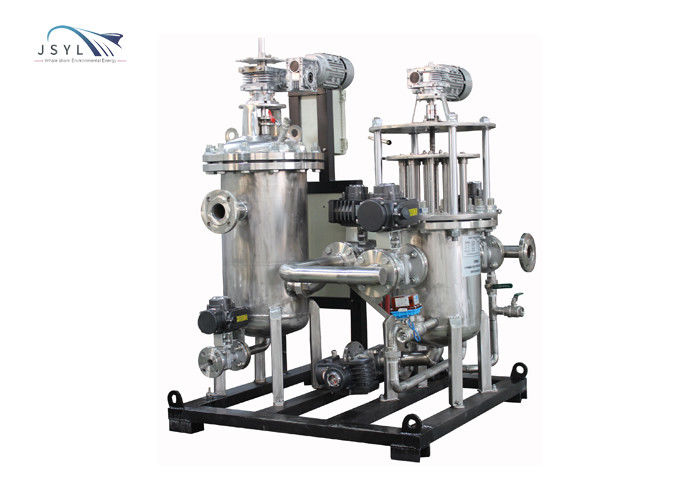

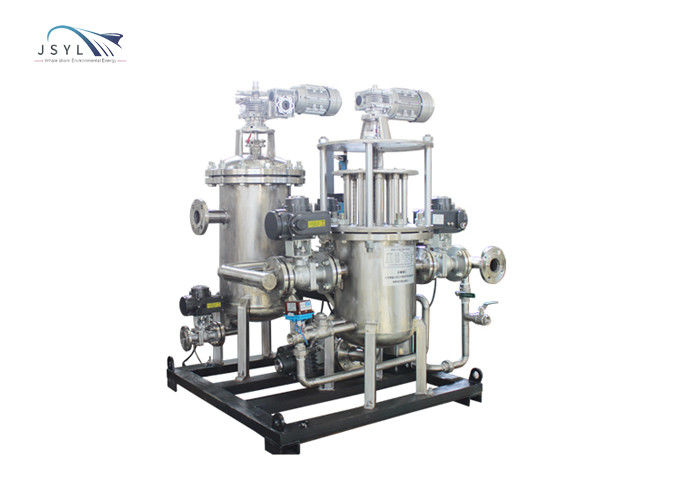

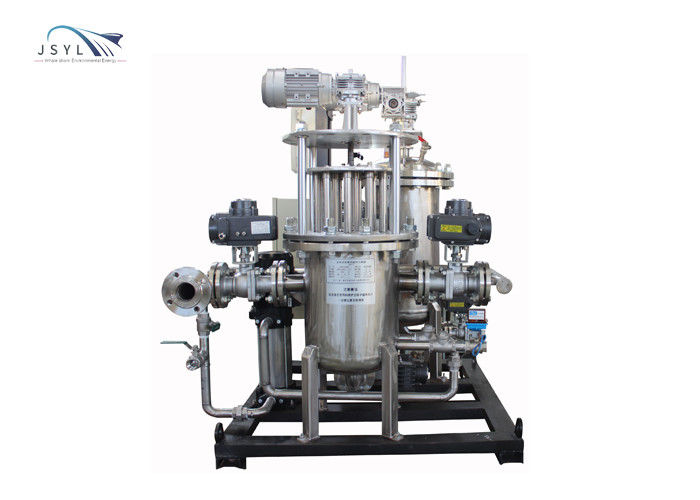

Magnetic separation filter for water treatment
Describe
Strong magnetic filter/separator
It is composed of several strong magnetic rods designed according to the special magnetic circuit, installed in the pipeline, which can effectively filter the magnetic metal impurities in the liquid transportation process. Metal particles with a diameter of 0.5-100um can be absorbed by the magnetic rod. This magnetic filter achieves automatic and intelligent control of large flow processing, uninterrupted filtration, automatic backwashing and waste slagging. It is dedicated to filtering ferrous impurities and can efficiently remove all kinds of liquids, slurries and gases. Large amounts of iron filings, iron powder and other ferromagnetic impurities.
Features:
1: Large flow capacity, suitable for filtering high content impurities
2: Fully automatic intelligent control, closed operating system; low cost
3: Fully automatic filtration and separation of ferromagnetic particles
4: Slag discharge and anti-blocking system
5: Tube bottom anti-pile system
6: Support on-site adjustment of control parameters at any time
| Product name | Magnetic liquid filter |
| Model: | JSYL-CC |
| Specification: |
DN32~300
|
| Shell material: | 304 304L 316 316L |
| Sealing gasket: | Nitrile rubber, PTFE, metal gasket |
| Ambient temperature: | 0°C to 120°C |
| Nut bolt: | 304 304L 316 316L |
| Connection mode: | Flange connection threaded connection |
| Working pressure: | 0.1-2.5MPA |
Application range:
Used in food and beverage, metal processing, pharmaceuticals, ceramics, paper, cosmetics, fine chemicals and other industries to protect key equipment from iron particles.
