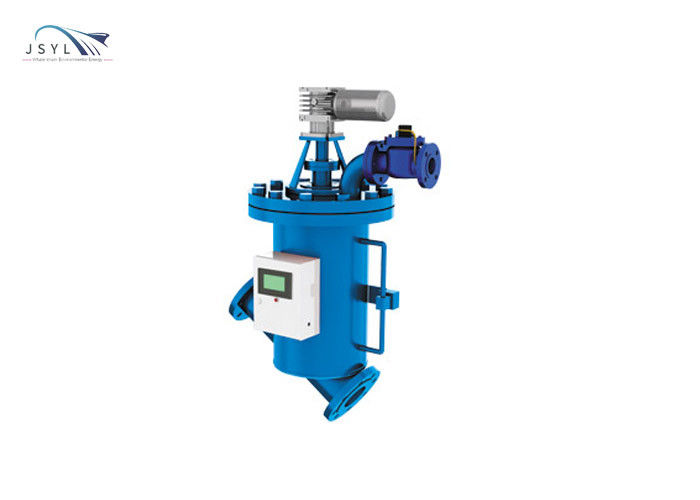

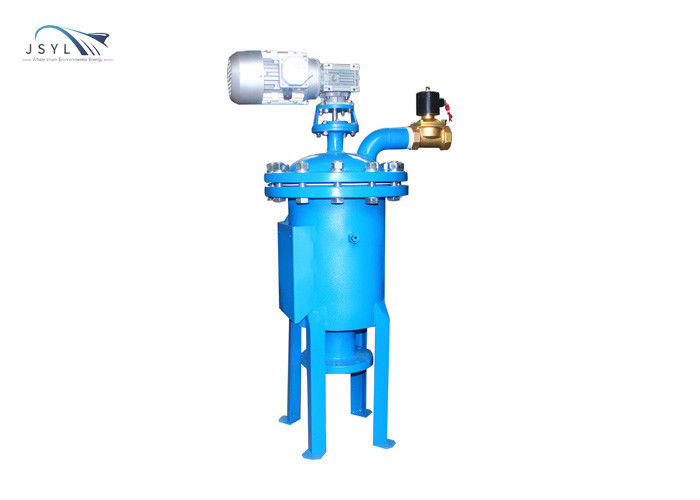

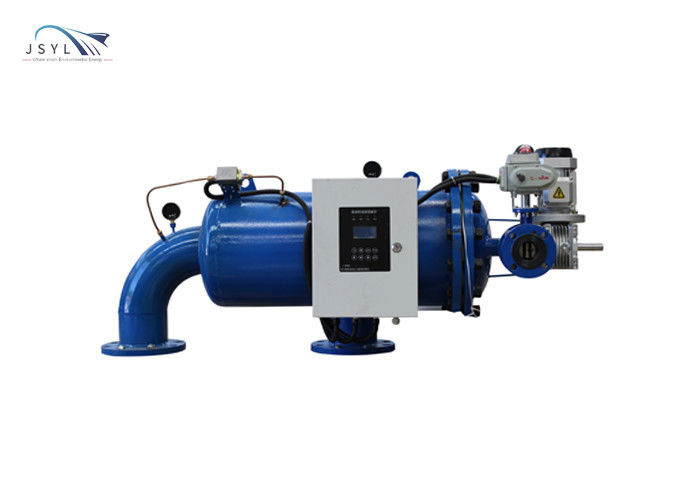

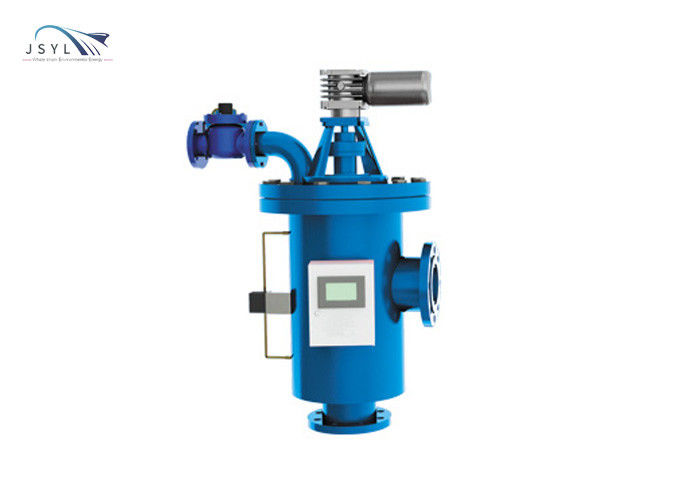

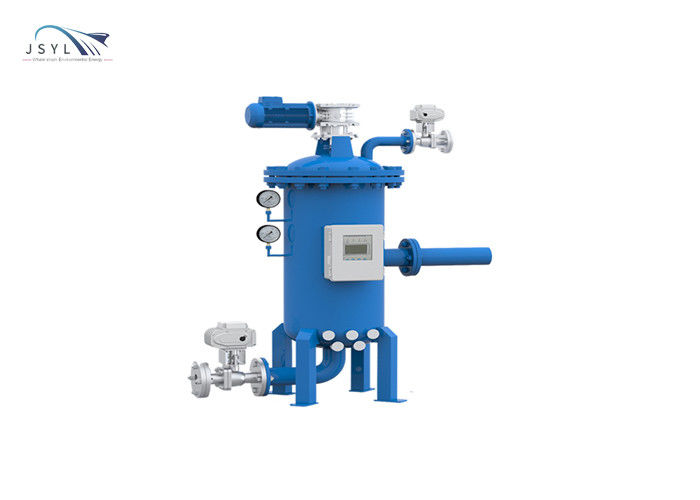

Small Volume Wastewater Self Cleaning Brush Filter

Brush type wedge wire mesh filter wastewater


Describe
The raw water enters the inside of the screen cylinder from the inlet of the filter, and flows through the screen to the outlet of the filter. Dirt particles are trapped on the inner surface of the screen and form a "filter cake", resulting in a pressure difference across the screen. The differential pressure switch senses the differential pressure, and when it reaches a preset value, the cleaning process begins.

Features
1: Large flow; small volume; large filter area
2: Continuous flow during self-cleaning and sewage, low water consumption and short cleaning time.
3: The filter element assembly is easy to disassemble, replace and maintain.
4: The unique design of the cleaning brush (with a spring and retractable adjustment; unique)
5: Manual intake valve/drain valve, the equipment stops working, and the internal sewage can be discharged manually






Applicable industry:
It is widely used in water system filtration in central air conditioning, power plants, sewage treatment plants, metallurgy, steel and other industries.
