Ultra Fine Filtration Automatic Backwash Filter 3m3/H To 8000m3/H
-
High Light
Automatic Backwash Filter 3m3/H
,Automatic Backwash Filter 8000m3/H
,Ultra Fine auto backwash filter
-
Product NameLow Pressure Series Water Filter
-
OriginHebei China
-
Applicable IndustriesManufacturing Plants, Food And Beverage Plants, Farms, Restaurants, Energy And Mining, Food And Beverage Stores
-
Warranty ServiceVideo Technical Support, Online Support Maintenance And Repair Services
-
Core ComponentsPLC, Motor, Filter Element, Valve
-
Warranty1 Year
-
FilterSintered Filter
-
ApplicationWater Treatment, Papermaking, Chemicals, Power Plants, Steel Plants, Etc.
-
Place of OriginHeBei China
-
Brand NameJing shark
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Time15 days
-
Payment TermsT/T
-
Supply Ability10,000 units per month

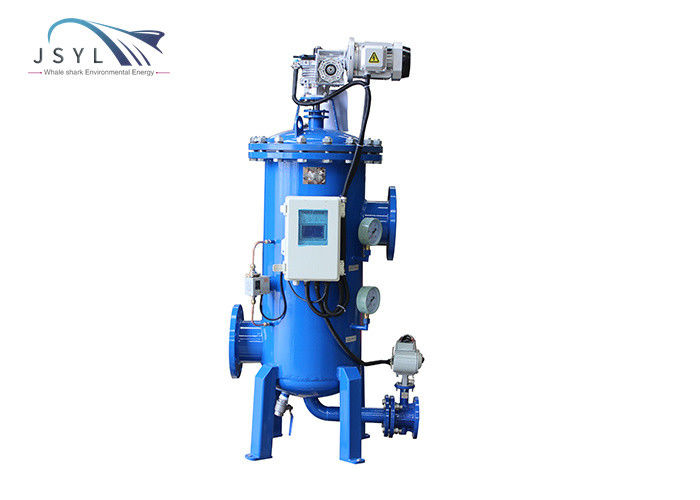

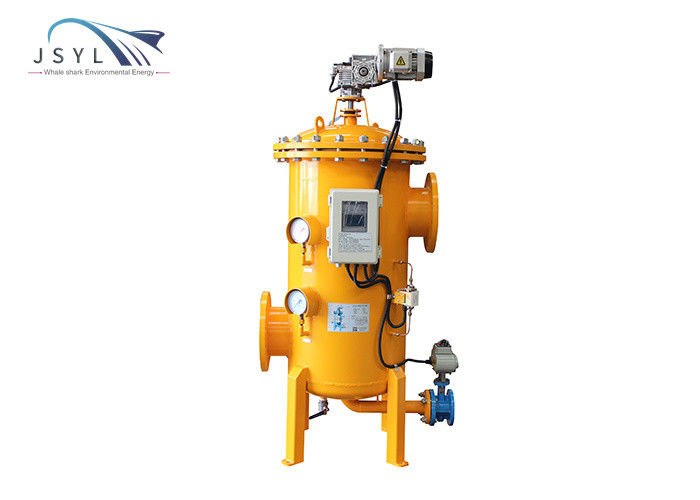

Ultra Fine Filtration Automatic Backwash Filter 3m3/H To 8000m3/H
Automatic backwash filter for ultra-fine filtration
Product Description
The liquid flows into the filter from the inlet, then flows through the inner surface of the filter screen, and flows out from the outlet. Impurities are trapped on the inner surface of the filter screen, and the filter cake slowly accumulates, causing the pressure drop at the inlet and outlet to gradually increase. The flux of the filter becomes low.
Advantage
1. Fully automatic intelligent control
2. Small size, large flow, high precision
3. Intelligent online backflushing does not stop and flow continuously;
4. Multi-filter element structure; backwash one by one;
5. The filter element has an online recoil precision of 5 microns, which can be used repeatedly.
| PRODUCT PARAMETER | |||
| Shell selection | Carbon steel/stainless steel | Filter element form |
Wedge wire gap type Multi-layer woven mesh sintered |
| Single machine flow | 3-8000 m3/h | Number of filter elements | 6-12 core |
| Preset pressure |
1.6MPa
|
Filtration accuracy |
10-2000 microns
|
| Applicable viscosity | 1-40cp | Applicable temperature | 0-95°C |
| Operation mode | Fully automatic intelligent control | Power supply | 380V, 50Hz/ 220v |
| Backwash components | 304 stainless steel | Filter element design | Detachable replacement |
| Power machine | Compound reducer | Position proximity switch | Inductive |
| Backwash node | Seven Star Node Disk | Pressure gauge | Anti-vibration pressure gauge |
| Filter replacement cycle | Half a year / more than one year | Installation method | Vertical installation/horizontal installation |
Applicable industry
Applicable liquid types: ground water, sea water, lake water, reservoir water, pond water, circulating cooling water, chilled water, high and low pressure spray water, water needle water, heat exchange water, sealing water, bearing cooling water, oil well water injection, process circulating water , Machining coolant, cleaning agent, cleaning water, etc.
Our products are sold all over the world, you can rest assured.
