Multi Core Solid Liquid Separator DN100 60m3/H Automatic Backflush Filter
-
High Light
Multi Core Solid Liquid Separator
,Solid Liquid Separator DN100
,60m3/h Automatic Backflush Filter
-
Product NameSolid-liquid Separator
-
OriginHebei China
-
Applicable IndustriesPower Plants, Steel Mills, Chemical Plants, Agriculture, Breeding, Medicine, Food, Water Treatment Industries
-
Warranty ServiceVideo Technical Support, Online Support Maintenance And Repair Services
-
Shell Material304/carbon Steel
-
FilterSintered Filter
-
Cleaning ModePressure Difference, Time
-
Standard Design Pressure1.6MPA
-
Place of OriginHeBei China
-
Brand NameJing shark
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Time15 days
-
Payment TermsT/T
-
Supply Ability10,000 units per month

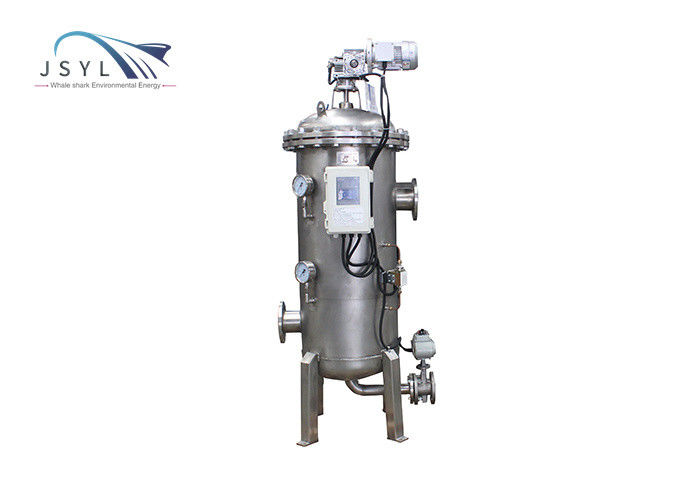

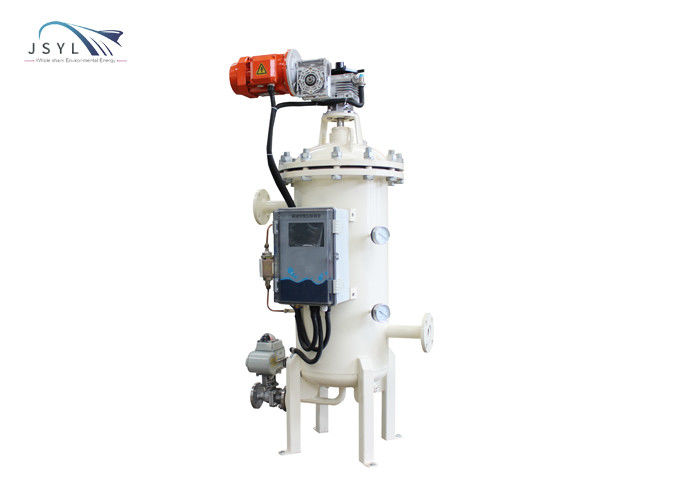

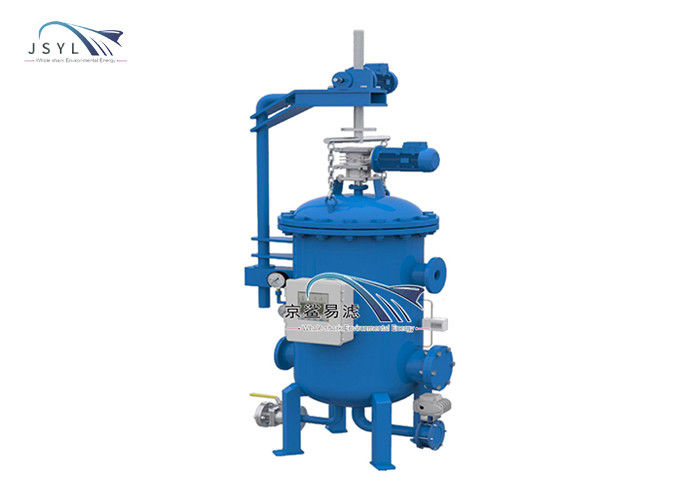

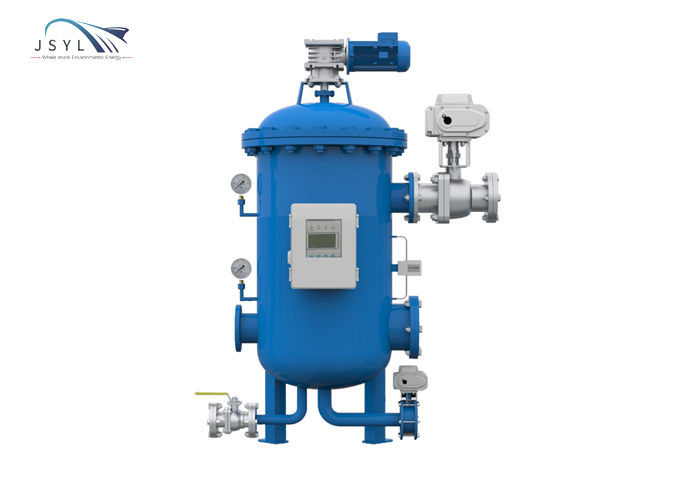

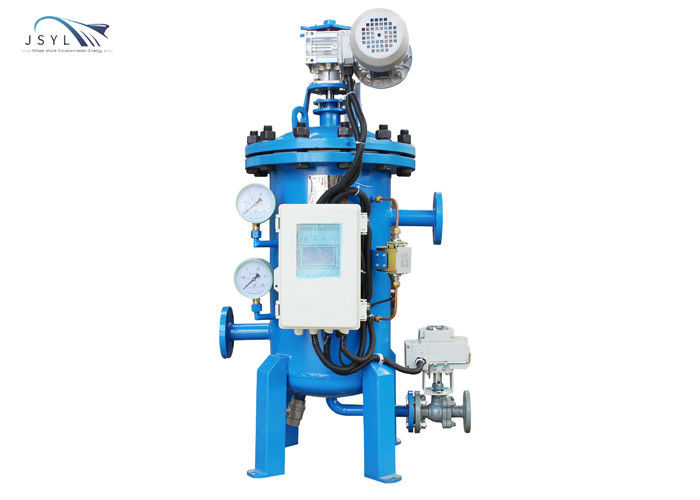

Multi Core Solid Liquid Separator DN100 60m3/H Automatic Backflush Filter
DN100-60m3h automatic multi-core solid-liquid separator
Introduction
The JSYL series multi-core backwash filter is equipped with an automatic cleaning control system, integrated pressure difference control and time control parallel control functions, which can control the filter to operate efficiently according to the working conditions, and the intelligent control can be remote; it supports on-site control and adjustment.
| PRODUCT PARAMETER | |||
| Specifications | Equipment parameters | Specifications | Equipment parameters |
| Equipment model |
JSYL-DDX-ZD-DN100 |
Cleaning method | Device's own filter element backwash |
| Shell selection | Carbon steel/stainless steel | Filter element form | Multi-layer woven mesh sintered |
| Single machine flow |
50-60 m3/h
|
Number of filter elements |
7 elements
|
| Rated pressure | 1.6MPa | Filtration accuracy | 50 microns |
| Applicable viscosity (cp) | 1-40cp | Applicable temperature (°C) | 0-95°C |
| Operation mode | Automatic intelligent control | Filter element replacement | Large cover flange replacement filter element |
|
Backwashing components
|
304 stainless steel | Filter element design | Cover replacement |
| Power unit | Compound reducer | Position proximity switch | Inductive |
| Backflushing node | Seven-star node disk | Pressure gauge | Seismic pressure gauge |
| Filter replacement cycle | Half a year/more than one year | Installation method | Vertical installation |
Applicable liquid type:
Groundwater, sea water, lake water, reservoir water, pond water, circulating cooling water, chilled water, high and low pressure spray water, water needle water, heat exchange water, sealing water, bearing cooling water, oil well water injection, process circulating water, machining cooling Agent, cleaning agent, cleaning water, etc.
Our products are sold all over the world, you can rest assured.
