5 Micron Efficient Precise Solid Liquid Separator Vertical Or Horizontal Installation
-
High Light
5 Micron Solid Liquid Separator
,Efficient Precise Solid Liquid Separator
,5 Micron backwashing filter system
-
Product NameSolid-liquid Separator
-
OriginHebei China
-
Applicable IndustriesPower Plants, Steel Mills, Chemical Plants, Agriculture, Breeding, Medicine, Food, Water Treatment Industries
-
Warranty ServiceVideo Technical Support, Online Support Maintenance And Repair Services
-
Shell Material304/carbon Steel
-
FilterSintered Filter
-
Cleaning ModePressure Difference, Time
-
Standard Design Pressure0.2-4.0 MPa (higher Pressure Can Be Customized.)
-
Place of OriginHeBei China
-
Brand NameJing shark
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Time15 days
-
Payment TermsT/T
-
Supply Ability10,000 units per month

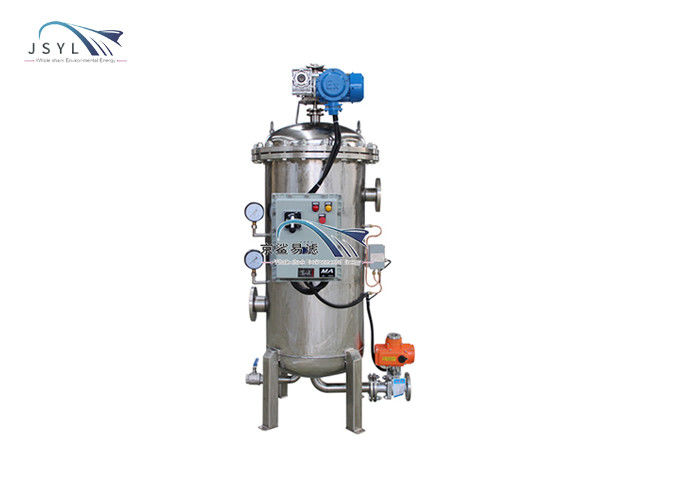

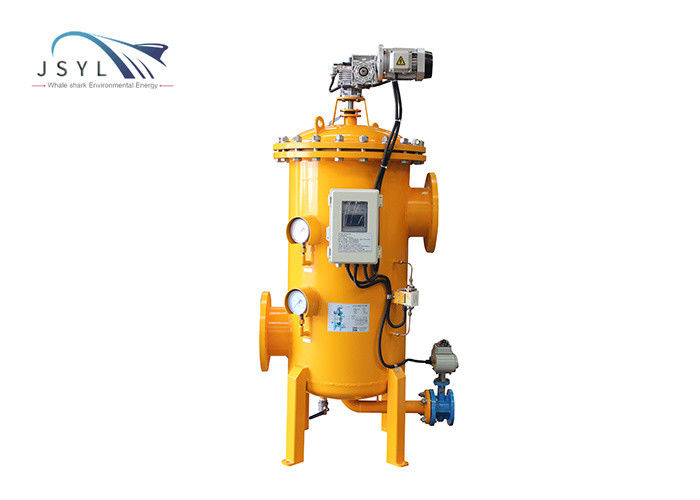

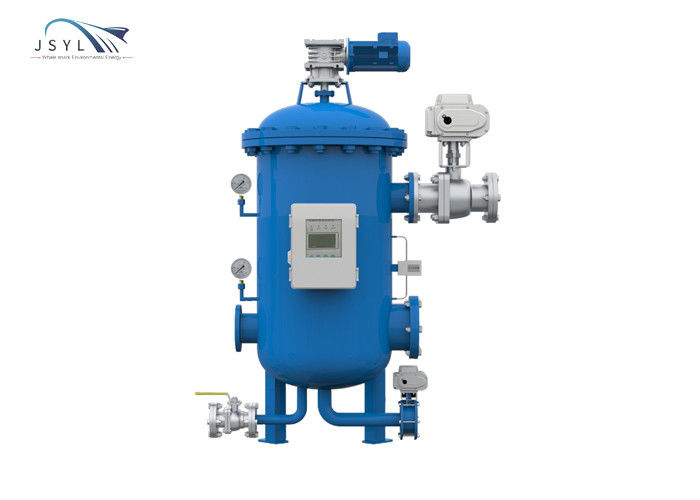

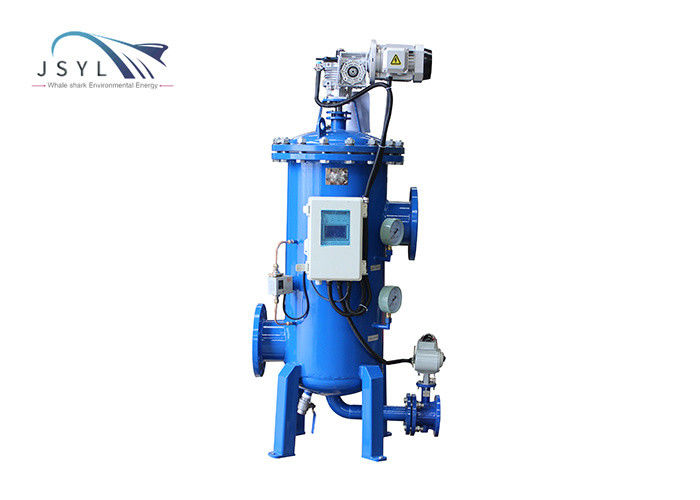

5 Micron Efficient Precise Solid Liquid Separator Vertical Or Horizontal Installation
Efficient and precise solid-liquid separator
Introduction
The fully automatic backwash filter overcomes many shortcomings of traditional filter products, such as small dirt holding capacity, easy to be blocked by dirt, filter parts need to be disassembled and cleaned, and filter status cannot be monitored. It has the ability to filter the raw water and automatically clean the filter element to discharge sewage. The function of the system, and the uninterrupted water supply of the system during cleaning and sewage, can monitor the working status of the filter, with a high degree of automation.
Features
1. Fully automatic intelligent control
2. Small size, large flow, high precision
3. Intelligent online backflushing does not stop and flow continuously;
4. Multi-filter element structure; backwash one by one;
5. The filter element has an online recoil precision of 5 microns, which can be used repeatedly.
| PRODUCT PARAMETER | |||
| Specifications | Equipment parameters | Specifications | Equipment parameters |
| Equipment model | JSYL-DX-ZD-DN (25-800) | Cleaning method | Device's own filter element backwash |
| Shell selection | Q235/304/316 | Filter element form | Multi-layer woven mesh sintered |
| Single machine flow |
3-8000 m3/h
|
Number of filter elements |
6-12 elements
|
| Rated pressure | 0.5-4.0MPa | Filtration accuracy | 5-1000μm |
| Applicable viscosity (cp) | 1-40cp | Applicable temperature (°C) | 0-95°C |
| Operation mode | Fully automatic intelligent control | Filter element replacement | Large cover flange replacement filter element |
|
Backwashing components
|
304 stainless steel | Filter element design | Cover replacement |
| Power unit | Compound reducer | Position proximity switch | Inductive |
| Backflushing node | Seven-star node disk | Pressure gauge | Seismic pressure gauge |
| Filter replacement cycle | Half a year/more than one year | Installation method | vertical installation/horizontal installation |
Applicable industries:
Food industry production water and reuse water filtration, production process water supply filtration, equipment cooling water with high water quality requirements; steel, petroleum, chemical, paper, automobile, food, metallurgy and other industries circulating water filtration, reclaimed water reuse, wastewater depth Treatment and filtration, central air conditioning, boiler backwater filtration, groundwater, surface water, swimming pool, landscape water purification and purification, breeding water filtration.
Our products are sold all over the world, you can rest assured.
