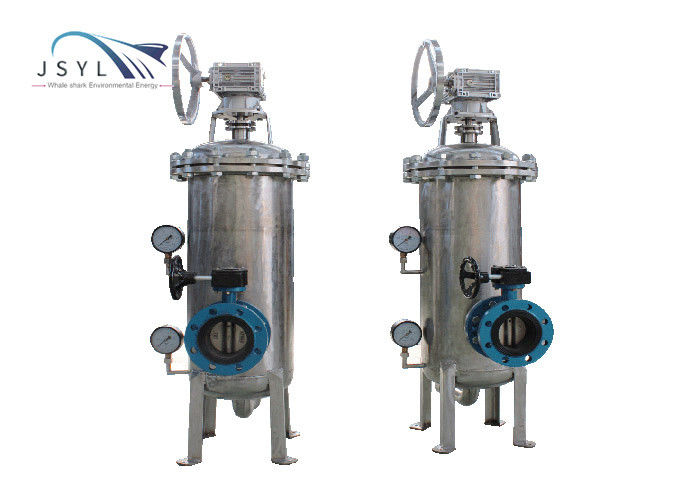

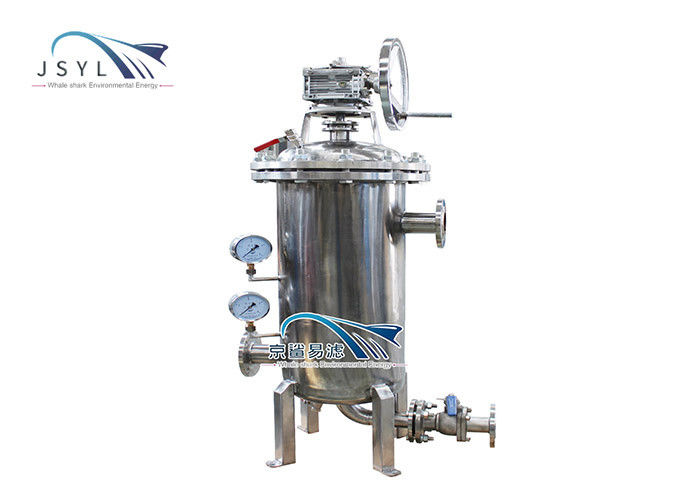

Hand-operated solid-liquid screening separator
Introduction
JSYL series multi-core backwash filters can filter out solid particles in various water and low-viscosity liquids (such as machined coolants), reduce liquid turbidity, purify water quality, and reduce system fouling, bacteria, algae, rust, etc. , Keep the material clean. In order to meet the requirements of system operation and downstream processes for liquid cleanliness, it can also be used to protect downstream key equipment from particle blockage, abrasion or fouling, and improve the operating efficiency and life of key equipment. The machine can continuously filter on-line, reducing downtime costs, maintenance costs and labor costs. It is an advanced solution for water and aqueous liquid filtration.
Advantage

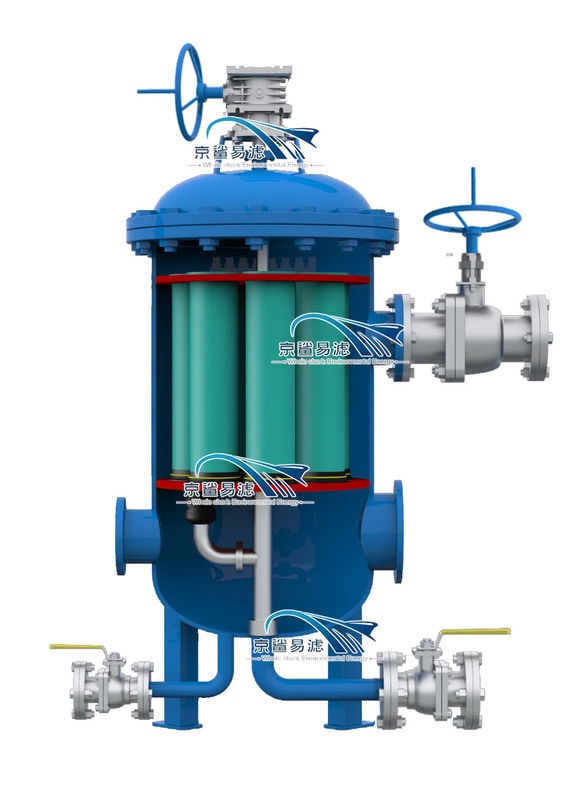

The liquid enters the body filter from the inlet, and the liquid is filtered by the filter element. The impurities in the liquid are deposited on the stainless steel filter screen. When the inlet pressure and the outlet pressure reach the set value; manually rotate the backwash rotating arm; each filter element one by one Backwashing; under the effect of pressure difference; the dirt inside the filter element is washed away and discharged through the sewage outlet;
| PRODUCT PARAMETER | |
| Specifications | Equipment parameters |
| Equipment model | JSYL-DX-ZD-DN(25-800) |
| Applicable liquid | water and low viscosity liquid (˂40cps); impurity level˂300ppm |
| Minimum work |
pipeline pressure difference>0.15MPa
|
| Filter accuracy | 10-2,000μm |
| Design pressure | 0.5/1.0/1.6/2.0/4.0MPa (higher pressure can be customized.) |
| Design temperature | 0-95°C |
|
Single filter area
|
0.45m2-14.40m2 |
| Cleaning pressure drop | 0.05-0.1MPa |
| Control system | Pressure difference and time parallel control |
| Indicator | Differential pressure transmitter |
| Gear motor | Three-phase power supply, 380V, protection grade IP55; worm gear reducer |
| Import and export size | 2"-24" |
| Main body material | carbon steel/304 |
Applicable fields:
Petrochemical pipelines, energy chemical pipelines, fine chemical pipelines, water supply and drainage and sewage pipelines, water quality treatment, industrial manufacturing cooling water circulation filtration, water supply and drainage pipeline water filtration, paper industry production wastewater filtration, power plant cooling water circulation filtration, municipal, agricultural garden irrigation water impurities Filtration, and organic liquid fertilizer pipeline filtration, food and beverage liquid impurity filtration, mechanical processing, papermaking, steel industry, etc.
Applicable liquid type:
Groundwater, sea water, lake water, reservoir water, pond water, circulating cooling water, chilled water, high and low pressure spray water, water needle water, heat exchange water, sealing water, bearing cooling water, oil well water injection, process circulating water, machining cooling Agent, cleaning agent, cleaning water, etc.
Our products are sold all over the world, you can rest assured.
