1-3000um Duplex Strainer Dual Automatic Backwash Filters Water Treatment

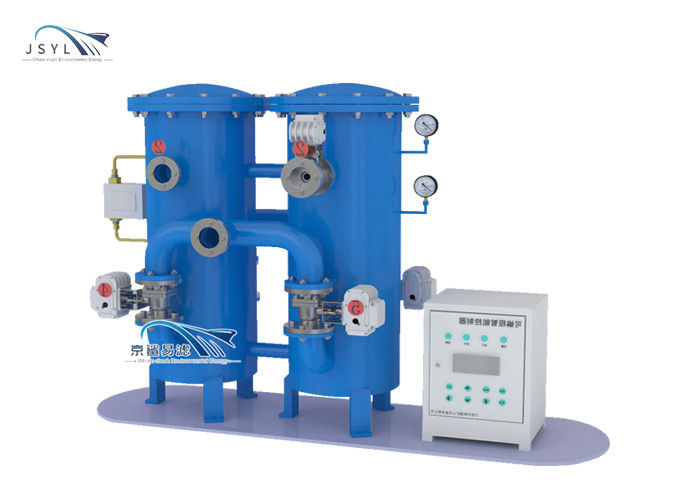

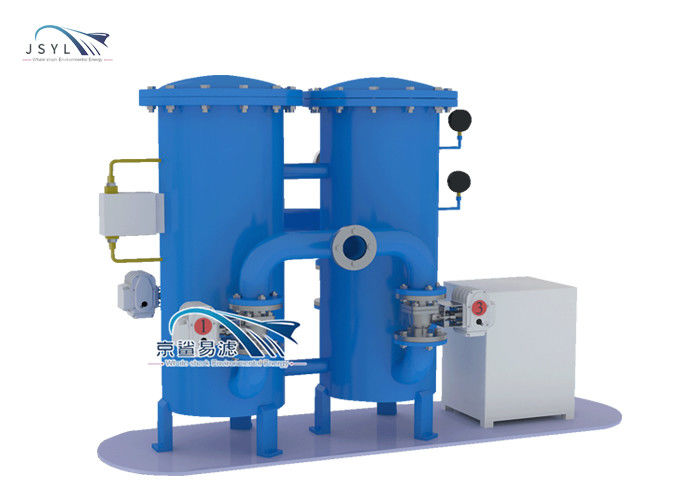

Automatic dual backwash filter for circulating water treatment


Introduction

The double-pass complementary backwash filter operates on pure mechanical principle; it automatically discharges sewage; it flows continuously during the backwash. The cleaning cycle can be adjusted (10-3000s), the filtration accuracy is 1-3000um; the working pressure: 0.3-4.0Mpa; the water filtration capacity of a single unit: 1-500m3/h; It is manufactured with vacuum sintering and other processes; it has high mechanical strength and overall rigid structure; the reasonable structure of the filter element and advanced production technology enable it to have good filtration accuracy, filtration resistance, mechanical strength, wear resistance, and heat resistance Sex and many other advantages

Advantage

<1> Revolutionary dual channel

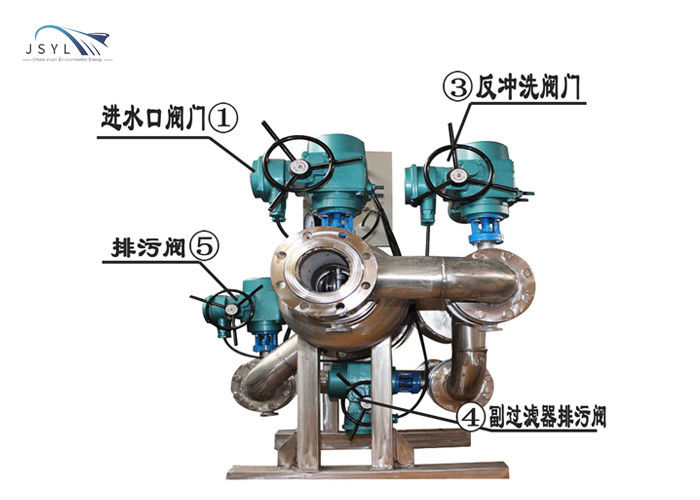

<2> Dual-channel filtration and mutual backwashing
<3> Filter element backwashing (lower maintenance cost)
<4> Living components, easy to replace and easy to maintain
<5> High filtration accuracy (1-3000 microns)
<6> Intelligent control system

Application industry:

Circulating water treatment: filtration of sand, algae and sludge in raw water; filtration of circulating cooling water and frozen water in steel industry, air conditioning systems, compressors; filtration of removing scale and calcification in water pipes; pre-filtration of membrane purification liquid, Intercept ion exchange resin, etc.
