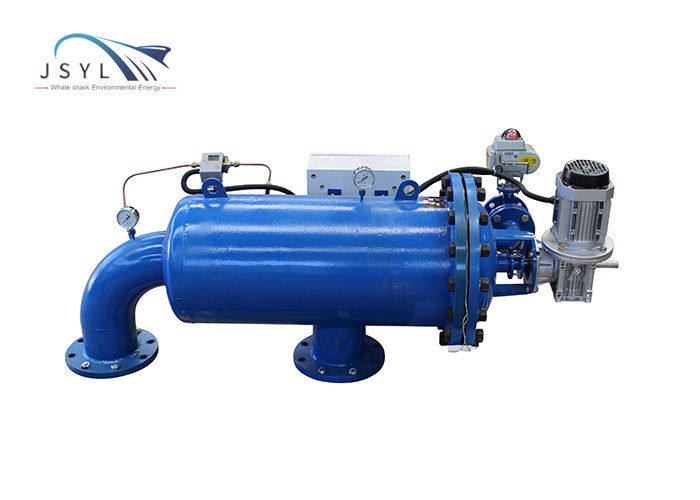

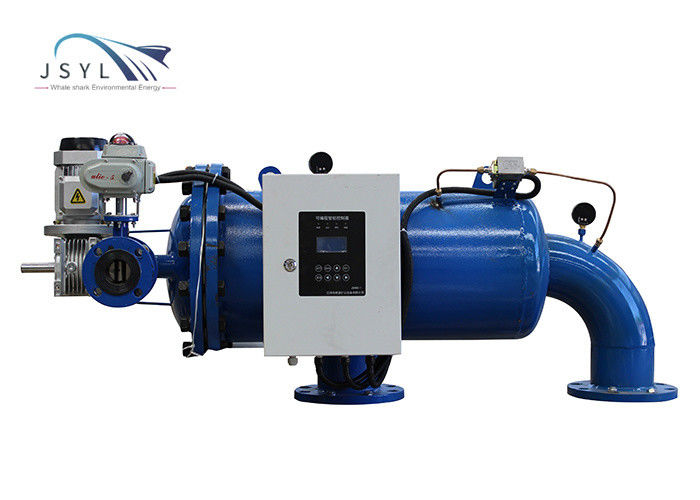

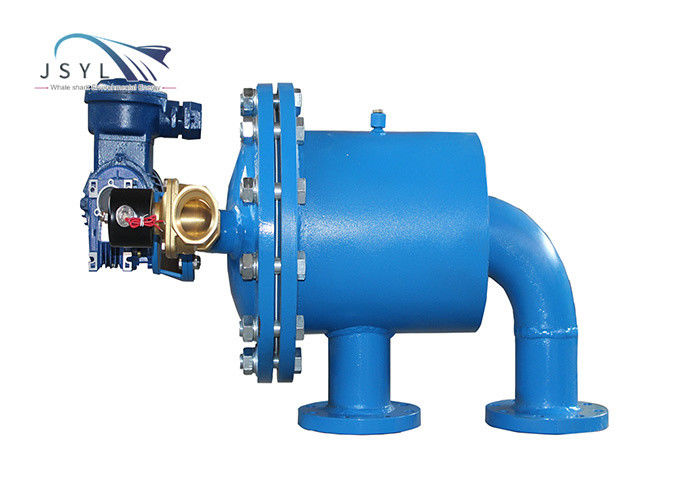

150 micron brush wedge wire filter element filter
Describe
The automatic self-cleaning filter is highly efficient and automatically backwashed. It can realize online automatic cleaning, automatic sewage discharge function, operation with three functions of differential pressure/timing/manual, and provide stable water quality guarantee for your water system. The filter continues to run during the flushing process, and a small amount of water is used during the flushing process, which makes the filter very efficient.
Features
1: Large flow; small volume; large filter area
2: Continuous flow during self-cleaning and sewage, low water consumption and short cleaning time.
3: The filter element assembly is easy to disassemble, replace and maintain.
4: The unique design of the cleaning brush (with a spring and retractable adjustment; unique)
| Product name: | Automatic brush type self-cleaning filter |
| Device model: | JSYL-S1-ZD-DN(50-800) |
| Shell material: | carbon steel/304 |
| Filtration accuracy: | 100-4000 microns |
| Flow rate (cubic meters/hour): | 15-4000 |
| Control method: | automatic intelligent control/manual control |
| Function: | Remove suspended particles and impurities in the liquid |
| Color and size: | can be customized |
| Installation method: | horizontal |
Working principle
The range when the pressure difference between the water inlet and outlet reaches the set value. The control system rotates the stainless steel brush and the dirt is brushed to the bottom. The bottom drain valve is opened and the dirt is discharged. The grab command can also be executed according to the set time period.
