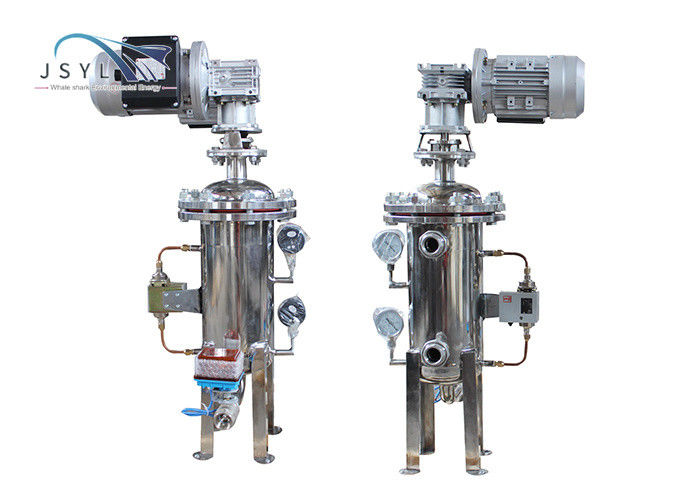

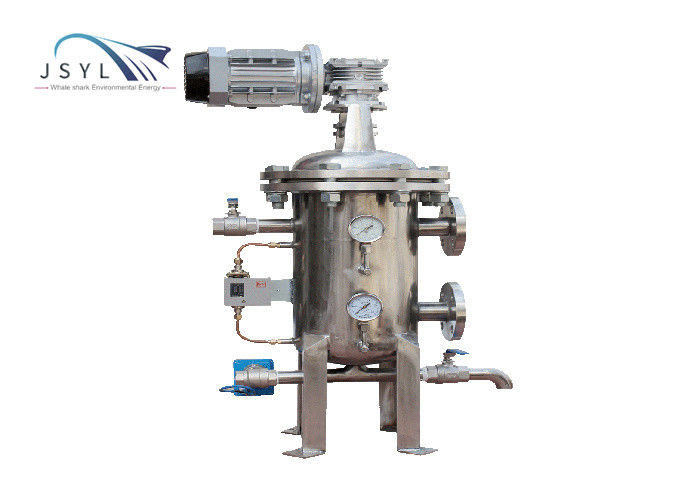

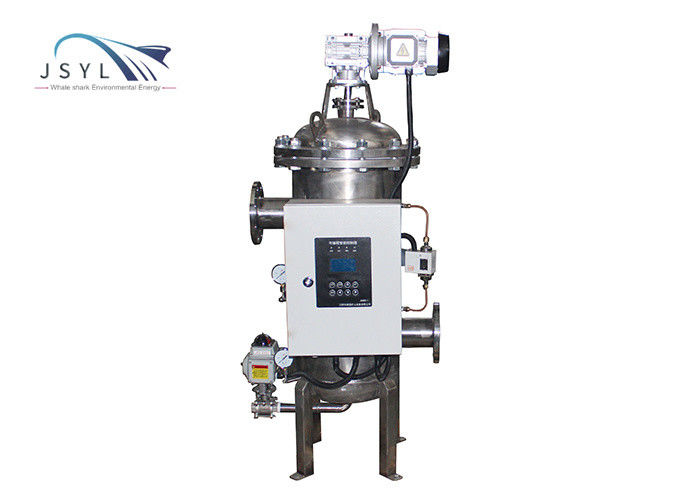

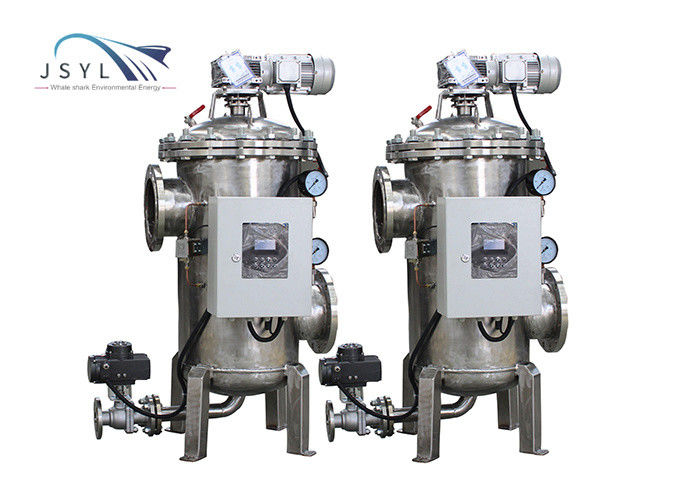

Automatic brush type self-cleaning filter for sewage filtration of 304 material
Describe
JSYL self-cleaning filter consists of stainless steel wire brush and transmission part. Washing and draining are automatically completed by the drive motor and electric valve. The operation mode is automatic operation, with dual functions of differential pressure and timing automatic drainage. The automation part adopts the most advanced and reliable PLC.
Features
1: Large flow; small volume; large filter area
2: Continuous flow during self-cleaning and sewage, low water consumption and short cleaning time.
3: The filter element assembly is easy to disassemble, replace and maintain.
4: The unique design of the cleaning brush (with a spring and retractable adjustment; unique)
5: Fully automatic intelligent control can be remote.
6: The motor is automatically switched between forward and reverse
7: Manual intake valve/drain valve, the equipment stops working, and the internal sewage can be discharged manually
| Filtration process: | 20-5000 cubic meters/hour | Maximum recommended working pressure: | 10 kg |
| Working pressure during minimum backwashing: | 2 kg | Water temperature range: | 0～70℃ |
| Available filtration: | 20-4000 microns | Connection: | flange |
| Backwash time: | 20-30 seconds | Water consumption during backwashing: | 1%-3% of filtered water |
| Control model: | PLC / timer / manual | Cleaning method: | brush |
| Drive mode: | motor drive | Filter element: | stainless steel |
| Filter housing material: | 304 | Sewage discharge method: | fully automatic |
| Installation: | vertical and horizontal | Rated working voltage: | 380V/50Hz or customized |
Applicable industries and liquids
1. Applicable industries: water treatment, steel, pulp and paper, mining, petrochemical, mechanical processing, municipal administration, irrigation, etc.
2. Typical applicable liquids: groundwater, seawater, lakes, reservoir water, pond water, cooling water circulation, chilled water, high and low pressure spray water, spray water, hot water, sealing water, bearing cooling water, oil well water injection, process circulating water, Processing coolant, cleaning agent, cleaning water, etc.
3. Filtration function: remove large particles, purify liquid, and protect key equipment
4. Filter type: backwash filter, automatic continuous online filtering
