Large Flow High Performance Wedge Wire Filter Element

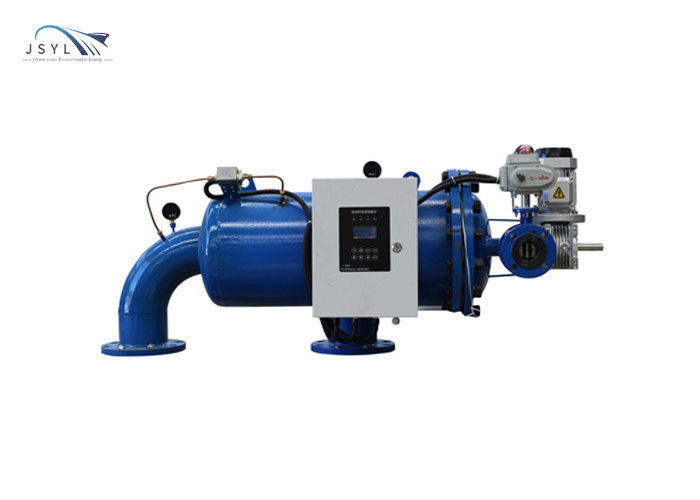

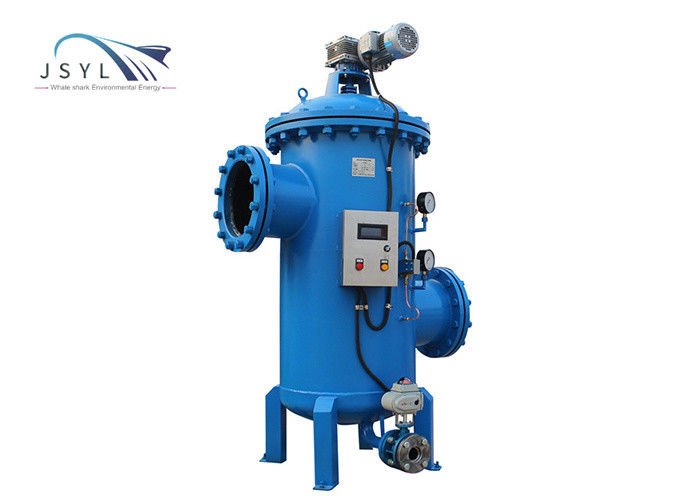

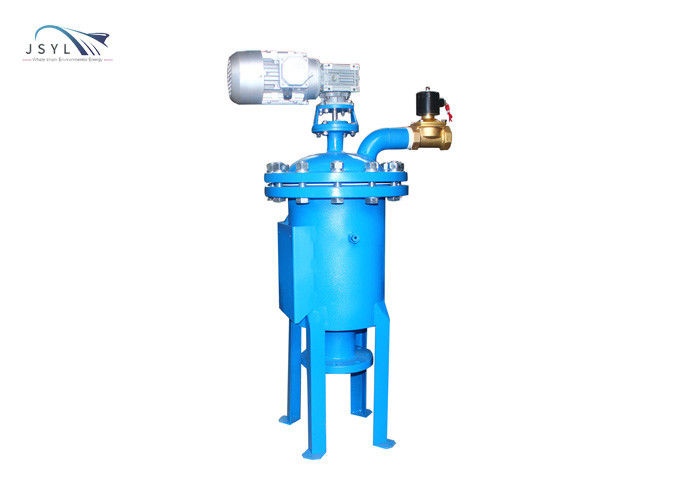

Large flow high performance wedge wire filter equipment


Describe

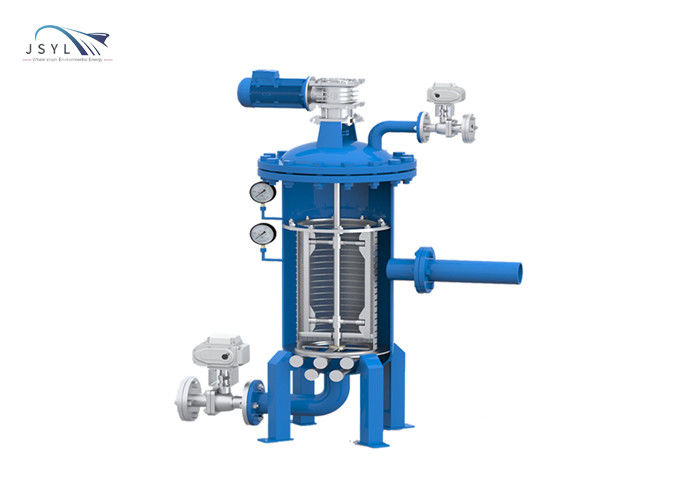

1. Normal working mode: the liquid enters the body filter through the inlet to filter, the liquid is filtered by the filter element, and the impurities in the liquid are deposited on the stainless steel filter screen. When the inlet pressure and outlet pressure reach the set value; the system automatically starts automatically. Cleaning procedure; the sensor transmits information to the power distribution system, and the power distribution system receives the pressure signal to trigger: the electric motor drives the brush to rotate to clean the filter element; at the same time the drain valve opens to drain; the cleaning time is 10-60 (settable) seconds, cleaning At the end, the valve is closed; the motor stops running; the system returns to the initial state; and the next filtration process begins.
2. Recoil mode: the water inlet and outlet of the filter are closed, the air valve check valve is opened; gas is delivered to the equipment, the direction of force is changed, and the filter element is recoiled; the dirt attached to the inner wall of the filter element is recoiled off. Close the air inlet valve, then open the water inlet valve, and the dirt will be discharged from the drain valve along with the liquid; open the water outlet valve and close the drain valve; the backwash is completed;


Features

1: Large flow; small volume; large filter area
3: Continuous flow during self-cleaning and sewage, low water consumption and short cleaning time.
4: Filter element assembly, easy to disassemble, easy to replace, easy to maintain.
5: The unique design of the cleaning brush (with a spring and retractable adjustment; unique)
6: Fully automatic intelligent control can be remote.
7: The motor is automatically switched between forward and reverse
8: Manual intake valve/drain valve, the equipment stops working, and the internal sewage can be discharged manually

Applicable industries and liquids
1. Applicable industries: water treatment, steel, pulp and paper, mining, petrochemical, mechanical processing, municipal administration, irrigation, etc.
2. Typical applicable liquids: groundwater, seawater, lakes, reservoir water, pond water, cooling water circulation, chilled water, high and low pressure spray water, spray water, hot water, sealing water, bearing cooling water, oil well water injection, process circulating water, Processing coolant, cleaning agent, cleaning water, etc.
3. Filtration function: remove large particles, purify liquid, and protect key equipment
4. Filter type: backwash filter, automatic continuous online filtering
