High Light
Wedge Wire Backwashing Filter System
,3000um backwashing filter system
,1.0MPa water backwash filter
-
Product NameWedge Wire Filter Equipment
-
OriginHebei China
-
Applicable IndustriesSteel Mills, Power Plants, Industry, Agriculture, Chemicals, Medicine
-
Core ComponentsFilter Element
-
ApplicationWater Treatment Filter
-
TypeBackwash Filter
-
MaterialStainless Steel Wire Mesh
-
Filter MaterialWedge Mesh Filter
-
Accuracy Rating100-8000 Microns
-
Shell MaterialCarbon Steel Or 304
-
Place of OriginHeBei China
-
Brand NameJing shark
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Time15 days
-
Payment TermsT/T
-
Supply Ability10,000 units per month

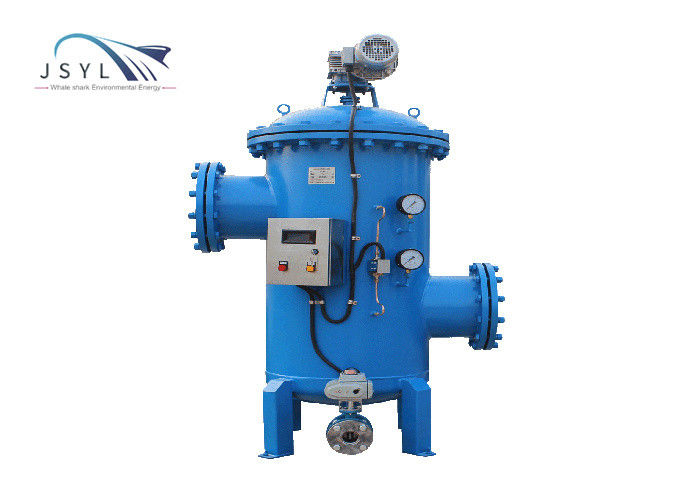

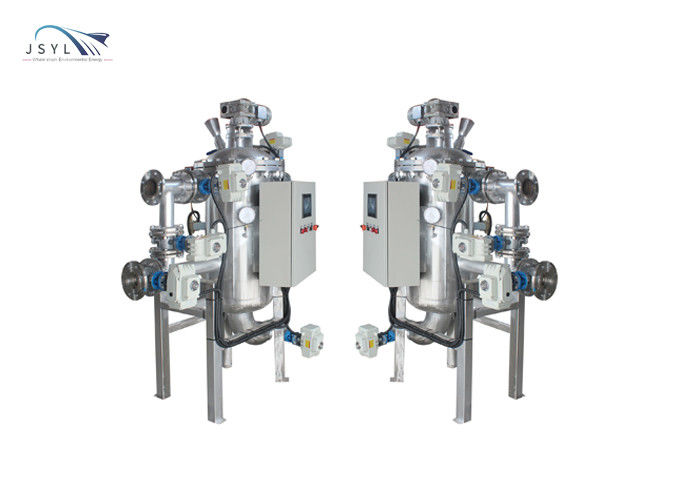

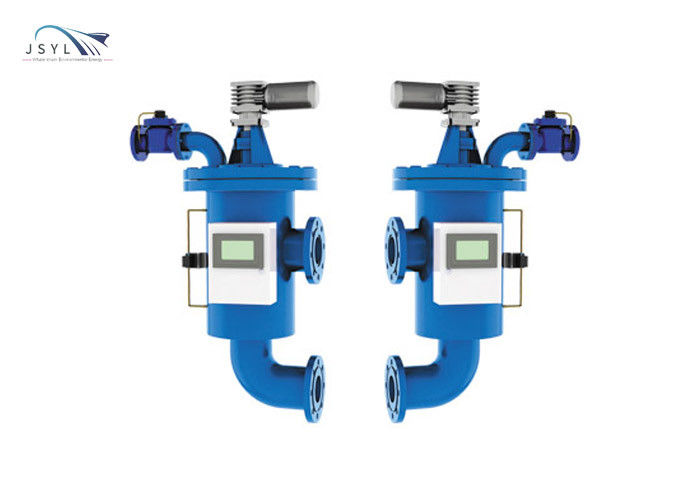

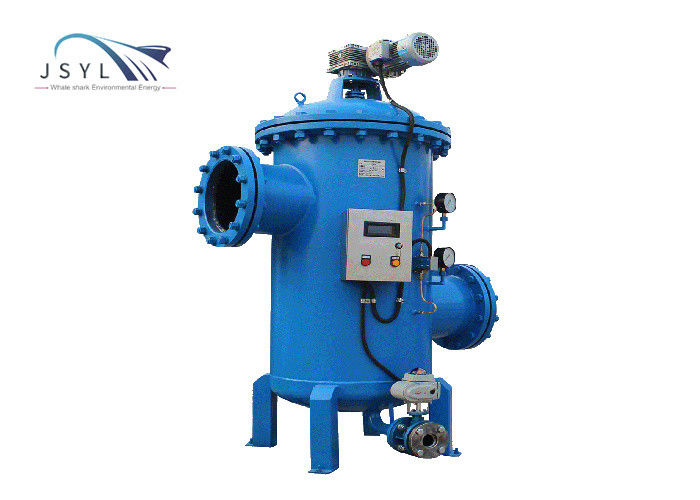

1.0MPa 10um-3000um Wedge Wire Backwashing Filter System
Hot sale wedge wire filter element filter
Describe
1. The new self-cleaning filter produced by JSYL is specially designed for continuous on-line filtration. The impurities on the inner surface of the filter screen are removed by efficient mechanical scraping.
2. JSYL filter can quickly remove impurities on the surface of the filter screen, thereby removing more impurities with high efficiency. Suitable for filtration of water and various low-viscosity liquids. JSYL filters are designed and manufactured in accordance with high-performance, high-quality, and high-reliability standards, with world-class quality.
Features
1: A single unit has a large processing flow and can be used in parallel, with a maximum of 3000m3/h per unit.
2: Large filtration area and high dirt holding capacity. The accuracy (10um-3000um) can be customized according to customer requirements.
3: Automatic cleaning of sewage and uninterrupted water supply during cleaning and sewage, low water consumption for cleaning and sewage, and short cleaning time.
4: Live filter element assembly, easy to disassemble, easy to replace, easy to maintain.
5: The unique design of the cleaning brush (with a spring, and can be adjusted telescopically, unique)
6: The motor is automatically switched between forward and reverse (currently on the market, it can rotate in one direction, which is unique).
| Model: | JSYL series | Applicable liquid: | water and viscous liquid (˂800,000cps); impurity level˂1,000ppm |
| Filtration accuracy: | 100-5,000μm | Design pressure: | 1.0MPa (Higher pressure can be customized.) |
| Single filter area: | 0.14m2-1.45m2 | Design temperature: | 0-200°C (depending on the seal.) |
| Cleaning pressure drop: | 0.05MPa | PLC controller: | differential pressure transmitter or differential pressure switch |
| Filter element: | wedge mesh/sintered mesh | Gear motor: | three-phase power supply, 380V, protection grade IP55; worm gear reducer |
| Filter element material: | 304/316L | Connection standard: | flange, HG20592-2009 (standard), HG20615-2009 (ANSI B16.5 compatible) |
| Main body material: | carbon steel/SS304/SS316L | Brush material: | 304 stainless steel wire |
Applicable industry:
It is widely used in water system filtration in central air conditioning, power plants, sewage treatment plants, metallurgy, steel and other industries.
Our products are sold all over the world, you can rest assured.
