Wedge wire 200 micron brush filter equipment
Describe

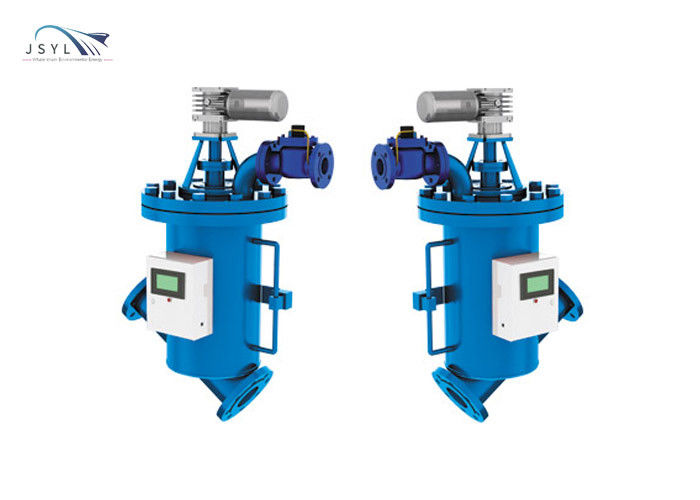

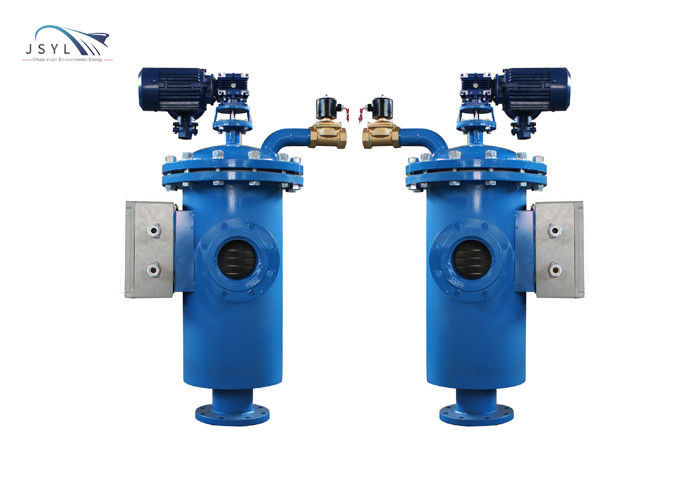

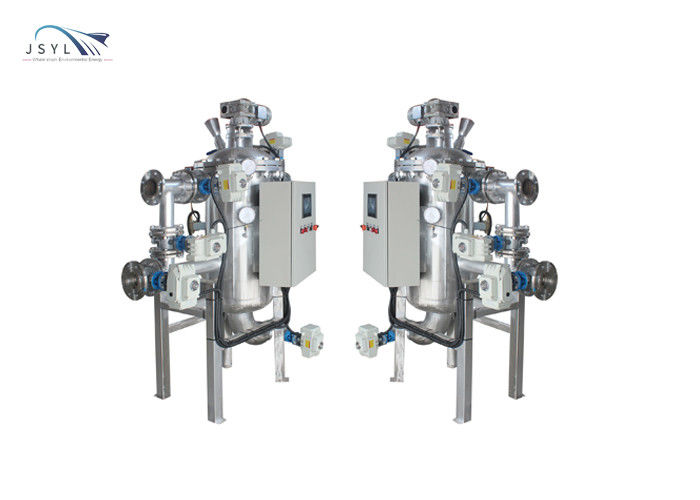

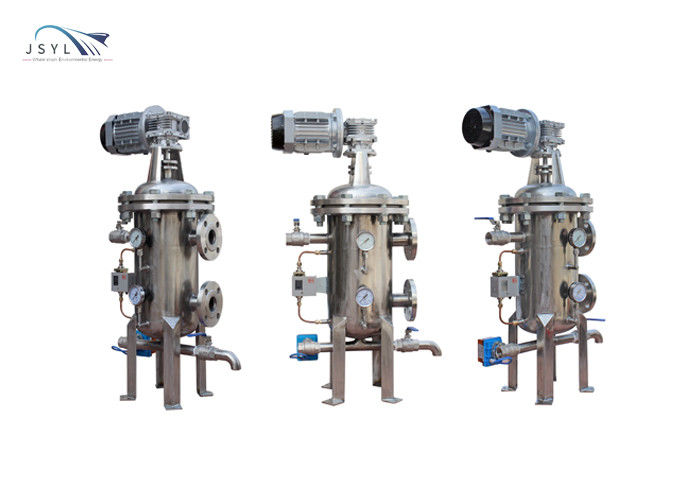

JSYL series self-cleaning filter is a kind of sewage treatment equipment that uses a filter to directly intercept impurities in the water, remove suspended solids and particulate matter in the water body, reduce turbidity, purify water quality, reduce system dirt, bacteria, algae, rust, etc., to purify water quality And the precision equipment that protects the normal working of other equipment of the system.
Working principle

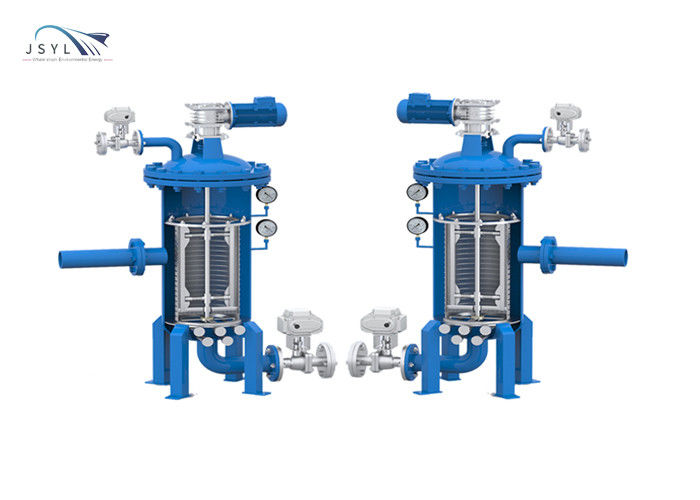

The range when the pressure difference between the water inlet and outlet reaches the set value. The control system rotates the stainless steel brush and the dirt is brushed to the bottom. The bottom drain valve is opened and the dirt is discharged. The grab command can also be executed according to the set time period.
| Product name: | Automatic brush type self-cleaning filter |
| Equipment model: | JSYL-S1-ZD-DN200 |
| Shell material: | Carbon steel |
| Filtration accuracy: | 200 microns |
| Flow rate (cubic meters/hour): | 400 |
| Control method: | Automatic intelligent control/manual control |
| Function: | Remove suspended particles and impurities in the liquid |
| Color and size: | Can be customized |
| Installation method: | Vertical |
Applicable industry:
It is widely used in water system filtration in central air conditioning, power plants, sewage treatment plants, metallurgy, steel and other industries.
Our products are sold all over the world, you can rest assured.
