High Light
50um Self Cleaning Irrigation Water Filters
,304SS self cleaning irrigation water filters
,50 Micron Self Cleaning Irrigation Filters
-
Product NameLow Pressure Series Water Filter
-
OriginHebei China
-
Applicable IndustriesManufacturing Plants, Food And Beverage Plants, Farms, Restaurants, Energy And Mining, Food And Beverage Stores
-
Warranty ServiceVideo Technical Support, Online Support Maintenance And Repair Services
-
Core ComponentsPLC, Motor, Filter Element, Valve
-
Warranty1 Year
-
FilterSintered Filter
-
ApplicationWater Treatment, Papermaking, Chemicals, Power Plants, Steel Plants, Etc.
-
Place of OriginHeBei China
-
Brand NameJing shark
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Time15 days
-
Payment TermsT/T
-
Supply Ability10,000 units per month

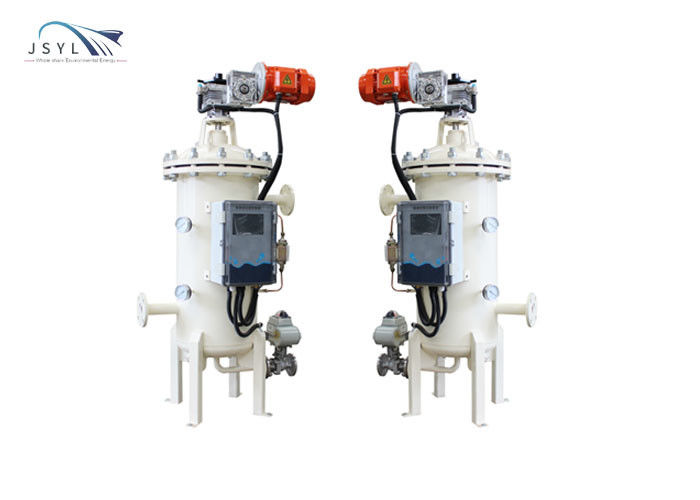

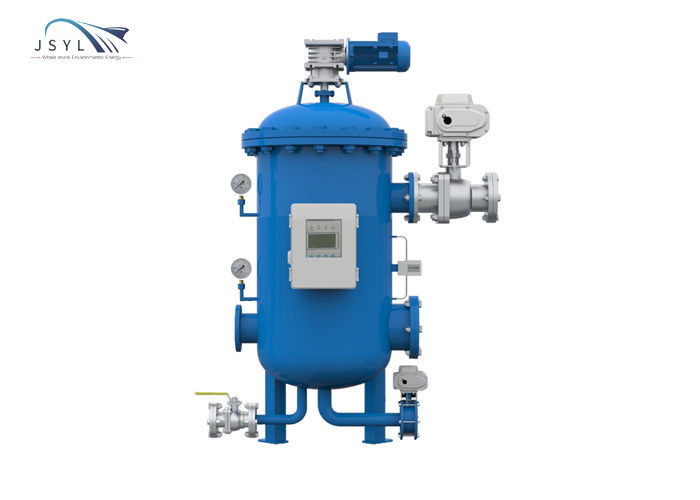

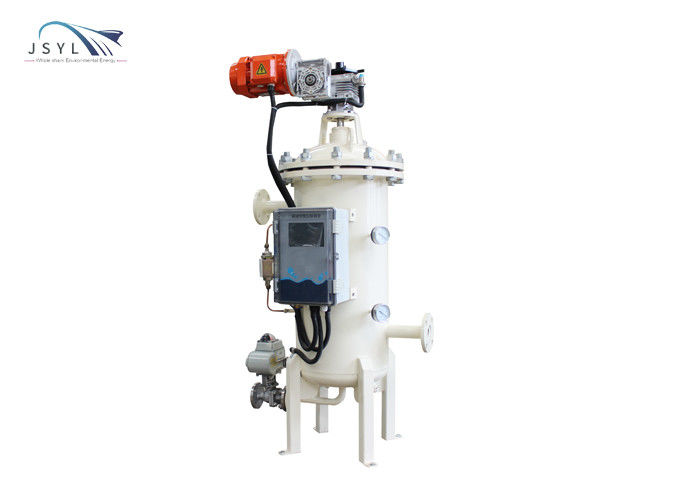

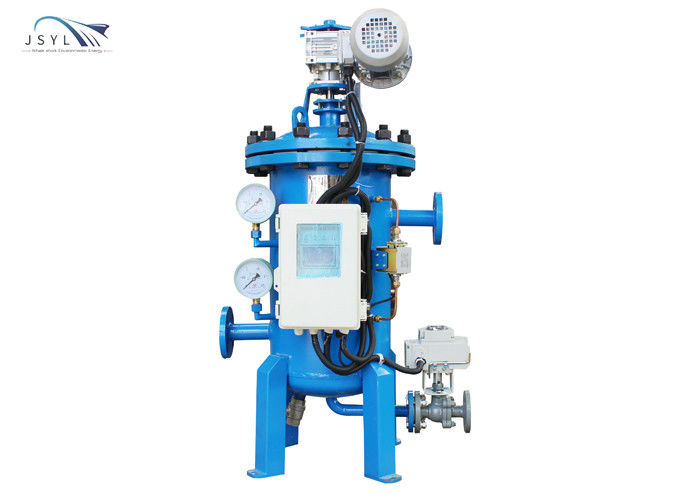

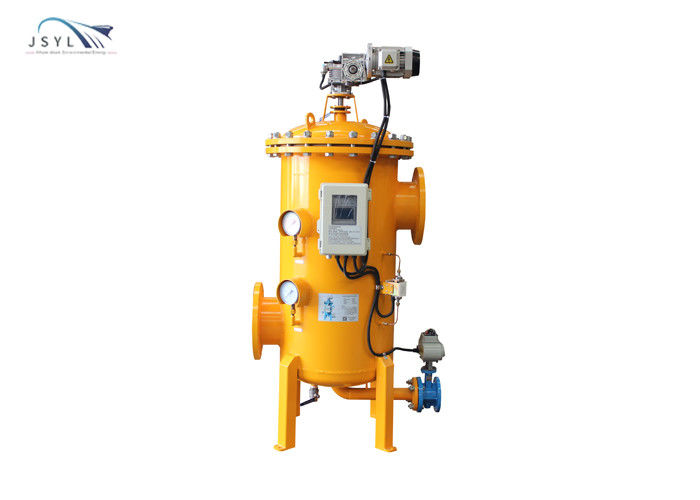

304SS 50 Micron Self Cleaning Irrigation Water Filters
304 material 50 micron automatic backwash filter housing
Product Description
The JSYL series is a new generation of backwash filters. The interior adopts an integrated porous filter design. When the filter screen is blocked, the unique backwash rotating arm will clean the filter screen one by one. As a high-end recoil filter, JSYL filter is designed for customers, mainly focusing on product quality and high reliability, using key components of the world's top quality (such as filter motor, intelligent control system, etc.).
The JSYL filter can remove various solid particles in water and low-viscosity liquids (such as sea water, machined cooling water) to meet the liquid cleanliness requirements of the system operation and the next process. It can also be used to protect key downstream equipment from particle blockage, abrasion or fouling, and improve its operating efficiency and lifespan. JSYL filter can automatically filter continuously online, reducing downtime costs, maintenance costs and labor costs. It is an advanced water and water-based liquid filtration solution.
Advantage
1. Fully automatic intelligent control
2. Small size, large flow, high precision
3. Intelligent online backflushing does not stop and flow continuously;
4. With multiple filter element structure, the filter area is doubled;
5. The filter element has an online recoil precision of 10 microns, which can be used repeatedly.
| PRODUCT PARAMETER | |||
| Shell selection | Carbon steel/stainless steel | Filter element form |
Wedge wire gap type Multi-layer woven mesh sintered |
| Single machine flow | 2-8000m3/h | Number of filter elements | 6-12 core |
| Preset pressure |
1.6MPa/2.5MPa/4.0MPa
|
Filtration accuracy |
5-2000 microns
|
| Applicable viscosity | 1-40cp | Applicable temperature | 0-95°C |
| Operation mode | Fully automatic intelligent control | Power supply | 380V, 50Hz/ 220v |
| Backwash components | 304 stainless steel | Filter element design | Detachable replacement |
| Power machine | Compound reducer | Position proximity switch | Inductive |
| Backwash node | Seven Star Node Disk | Pressure gauge | Anti-vibration pressure gauge |
| Filter replacement cycle | Half a year / more than one year | Installation method | Vertical installation/horizontal installation |
Application areas
petrochemical pipelines, energy chemical pipelines, fine chemical pipelines, water supply and drainage and sewage pipelines, water quality treatment, industrial manufacturing cooling water circulation filtration, water supply and drainage pipeline water filtration, paper industry production wastewater filtration, power plant cooling water circulation filtration, municipal administration, agricultural gardens Irrigation water impurity filtration, organic liquid fertilizer pipeline filtration, food and beverage liquid impurity filtration, mechanical processing, papermaking, steel industry, etc.
Our products are sold all over the world, you can rest assured.
