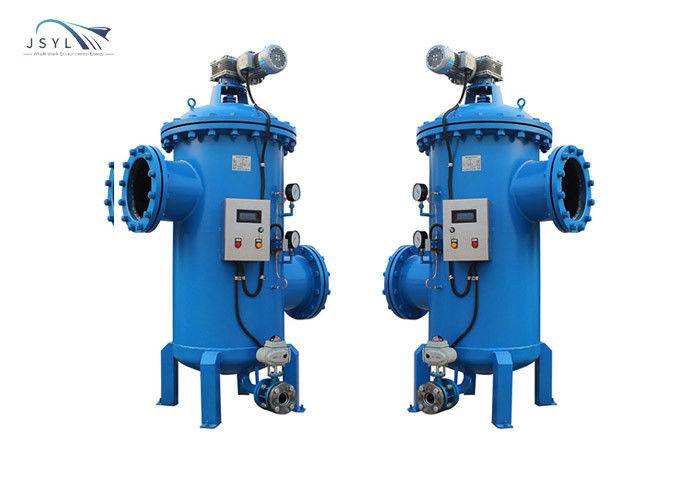

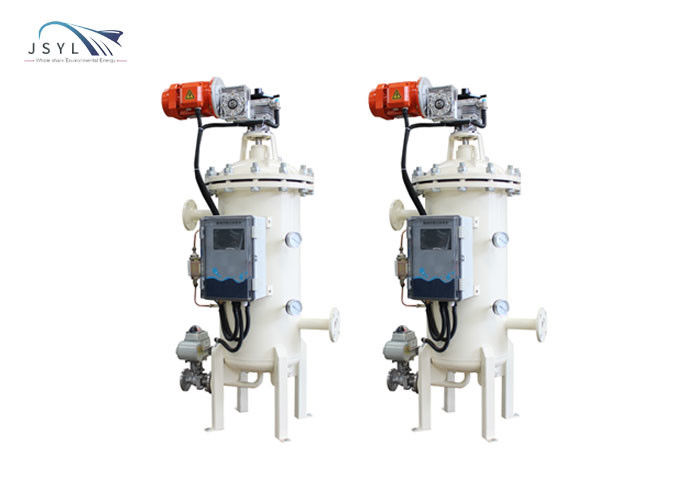

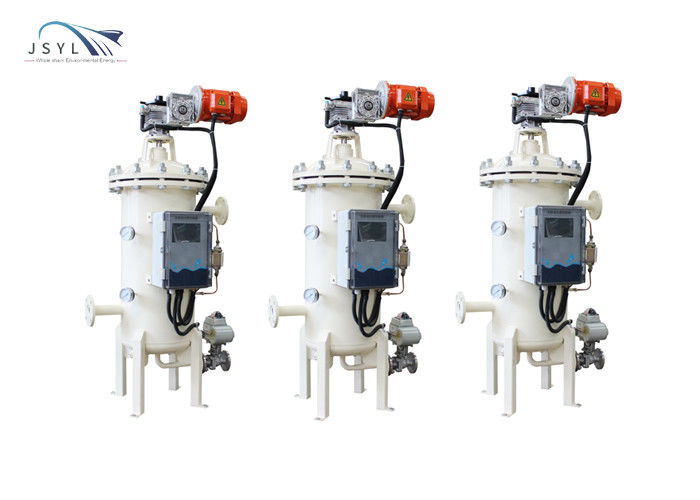

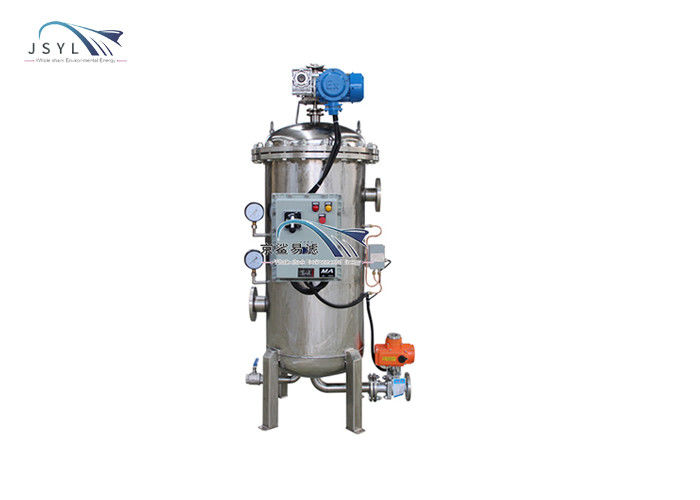

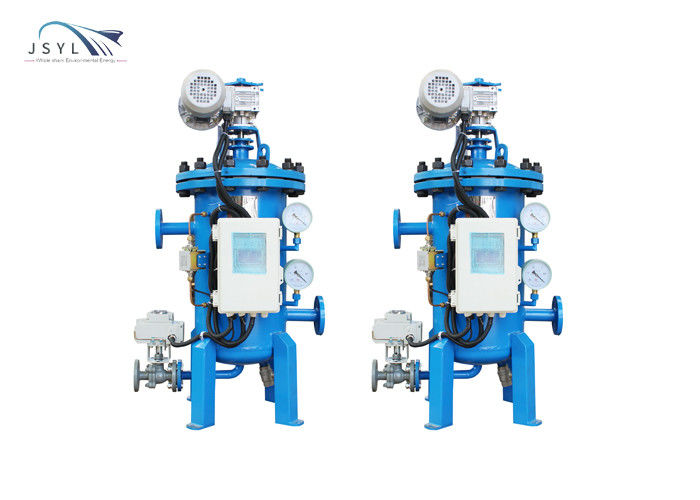

Self-cleaning low-pressure shower water backwash filter
Product Description
The JSYL series is a new generation of backwash filters. The interior adopts an integrated porous filter design. When the filter screen is blocked, the unique backwash rotating arm will clean the filter screen one by one. As a high-end recoil filter, JSYL filter is designed for customers, mainly focusing on product quality and high reliability, using key components of the world's top quality (such as filter motor, intelligent control system, etc.).
The JSYL filter can remove various solid particles in water and low-viscosity liquids (such as sea water, machined cooling water) to meet the liquid cleanliness requirements of the system operation and the next process. It can also be used to protect key downstream equipment from particle blockage, abrasion or fouling, and improve its operating efficiency and lifespan. JSYL filter can automatically filter continuously online, reducing downtime costs, maintenance costs and labor costs. It is an advanced water and water-based liquid filtration solution.
Advantage
JSYL filter has outstanding advantages that are different from ordinary screen-type self-cleaning filters. The accuracy range of JSYL filter is 10-2000 microns. It uses an extremely strong V-shaped wedge-shaped mesh filter with high surface clearance accuracy. The stand-alone filter area is very large, and it can be finely filtered at low surface flow rates. The super-large flow of single filter is 8000m3/h. It has extremely high reliability and can handle poor water quality, such as sludge impurities, soft and viscous impurities, high impurities, a small amount of hair and fibrous impurities.
| PRODUCT PARAMETER | |||
| Device model | JSYL-DDX-ZD-DN (25-800) | Cleaning method | Equipment's own filter element backwash |
| Shell selection | Carbon steel/stainless steel | Filter element form |
Wedge wire gap type Multi-layer woven mesh sintered |
| Single machine flow | 2-8000m3/h | Number of filter elements | 6-12 core |
| Preset pressure |
1.6MPa/2.5MPa/4.0MPa
|
Filtration accuracy |
5-2000 microns
|
| Applicable viscosity | 1-40cp | Applicable temperature | 0-95°C |
| Operation mode | Fully automatic intelligent control | Filter replacement | Replace the filter element with a large cover flange |
| Backwash components | 304 stainless steel | Filter element design | Detachable replacement |
| Power machine | Compound reducer | Position proximity switch | Inductive |
| Backwash node | Seven Star Node Disk | Pressure gauge | Anti-vibration pressure gauge |
| Filter replacement cycle | Half a year / more than one year | Installation method | Vertical installation/horizontal installation |
Application:
Plastics, food, environmental protection, filtration, chemicals, electric power, building materials, ceramics, medicine, powder, mining, coal, etc.
Features:
1: Large flow processing capacity, suitable for filtering high-content impurities
2: Fully automatic intelligent control, closed operating system; low cost
3: Fully automatic filtration and separation of ferromagnetic particles
4: Slag discharge and anti-blocking system
5: Tube bottom anti-pile system
6: Support on-site adjustment of control parameters at any time
