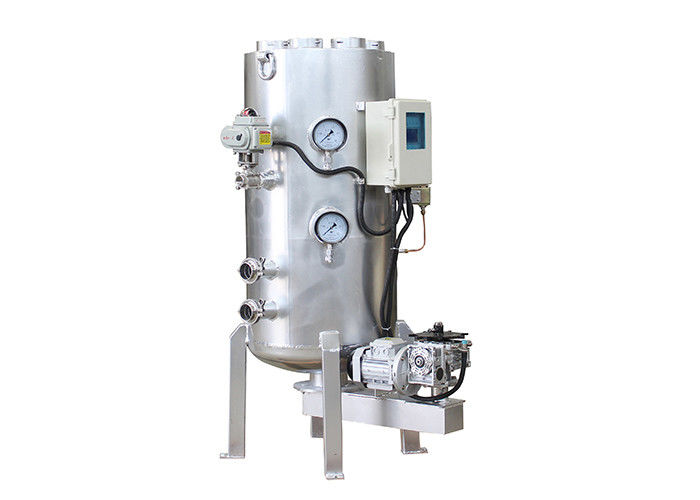

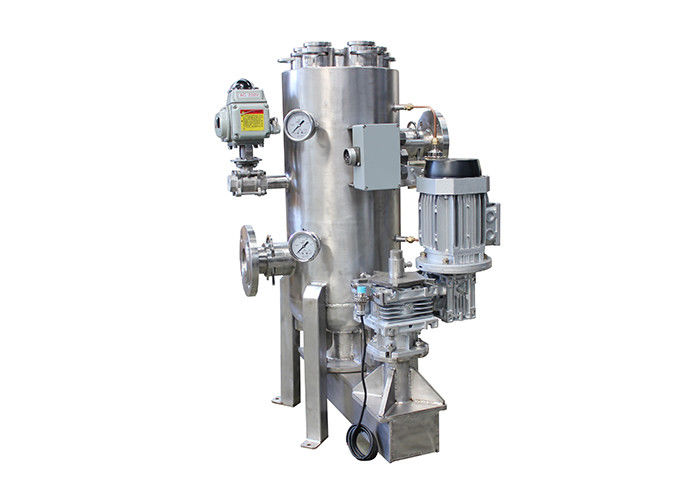

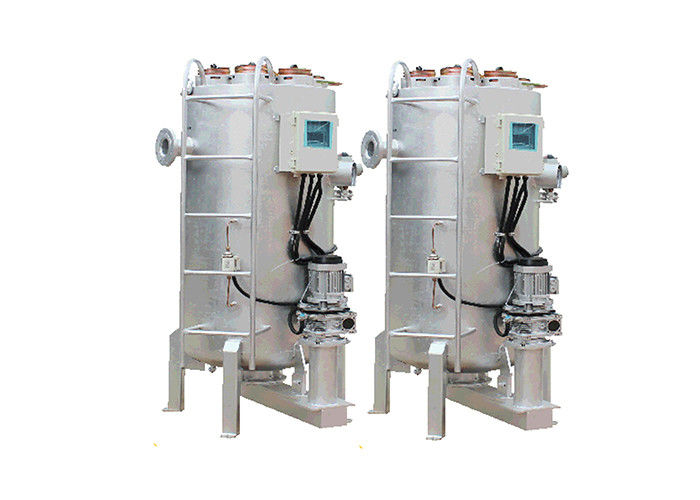

1.6MPa 1.0MPa Self Cleaning Irrigation Water Filters

1.6 MPa / 1.0 MPa automatic backwash filter self-cleaning irrigation treatment


Describe

The multi-element filter has the characteristics of backwashing and filtering. The machine continuously filters for 24 hours without interruption. When the filter element is blocked, the power distribution system runs, and the backwash rotating arm intelligently rotates to backwash the filter elements one by one, reducing the cost of downtime. , Maintenance cost and labor cost, it is an advanced solution for water and aqueous liquid filtration.

Working principle
The filter workflow is divided into filtering state and backwashing sewage state
1. Under normal filtration state: the liquid enters the body from the liquid inlet and is filtered by the filter element, the impurities in the liquid are deposited on the filter screen, the filtered liquid is discharged from the body liquid outlet, and the sewage valve is in a closed state;
2. Backwashing sewage state: After the filter device has passed through N multiple normal filtration processes; the impurities in the liquid are deposited on the filter screen, when the inlet pressure and the outlet pressure reach a certain differential pressure value (≥0.5MPa); the filter device is here When the backflush is required; the intelligent pressure sensor transmits information to the power distribution system; the power distribution system is running; the drain valve is automatically opened; the backwash rotating arm intelligently rotates, causing the backwash node plate to rotate 360 degrees in the direction indicated by the arrow (stop), Under the action of the pressure difference; the filter elements are backwashed one by one; the dirt inside the filter element is backwashed and discharged through the sewage outlet under the working condition of reaction force; the backwashing process ends; the sewage valve is automatically closed; the equipment enters normal filtration state.

​​​

Advantage
1. Fully automatic intelligent control
2. Small size, large flow, high precision
3. Intelligent online backflushing does not stop and flow continuously;
4. The body replaces the filter element, quick-plug design, easy to replace;
5. Multi-filter element structure; precision can be adjusted;
6. It can be installed vertically/horizontally, which significantly saves installation space
7. The filter element has an online recoil precision of 5 microns, which can be used repeatedly.
