3-7 Elements Multi Core Precision Backwash Filter For Chemical Industry

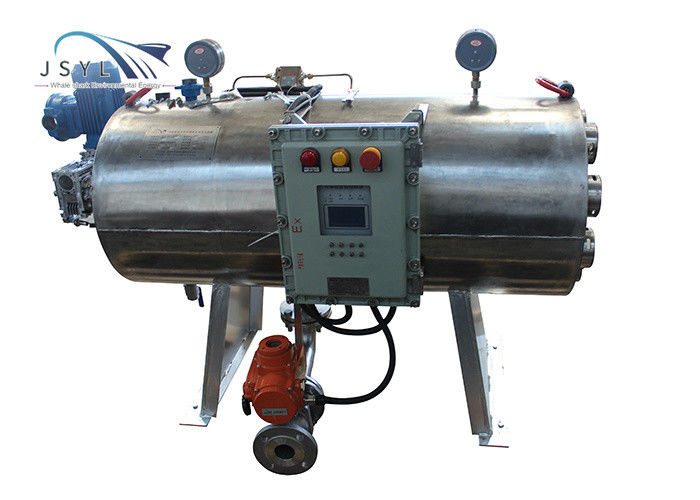

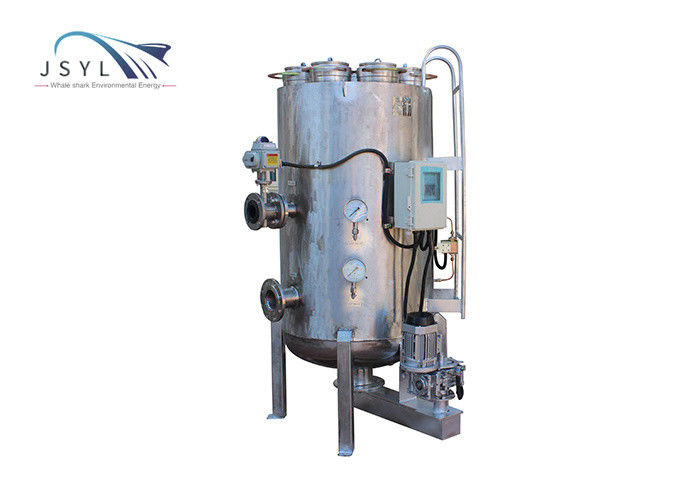

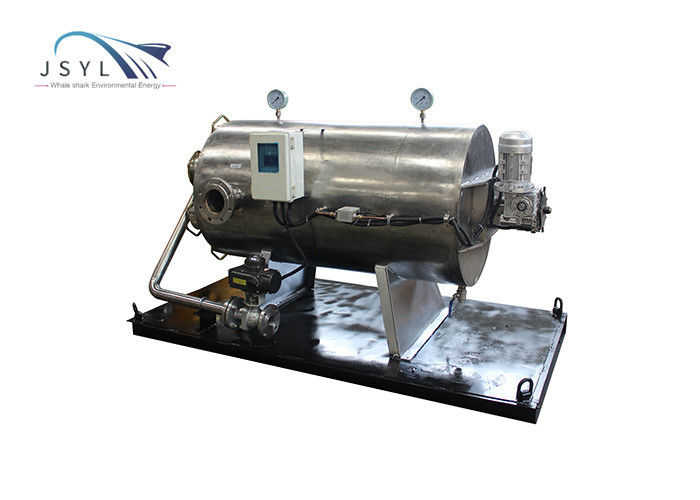

Multi-core precision backwash filter for chemical industry

introduce:
JSYL series equipment can filter out solid particles in various water and low-viscosity liquids (such as machined coolants), reduce liquid turbidity, purify water quality, reduce system dirt, bacteria, algae, rust, etc., and keep materials clean. In order to meet the requirements of system operation and downstream processes for liquid cleanliness, it can also be used to protect downstream key equipment from particle blockage, abrasion or fouling, and improve the operating efficiency and life of key equipment.

Working principle:
The filter workflow is divided into filtering state and backwashing sewage state
1. Under normal filtration state: the liquid enters the body from the liquid inlet and is filtered by the filter element, the impurities in the liquid are deposited on the filter screen, the filtered liquid is discharged from the body liquid outlet, and the sewage valve is in a closed state;
2. Backwashing sewage state: After the filter device has passed through N multiple normal filtration processes; the impurities in the liquid are deposited on the filter screen, when the inlet pressure and the outlet pressure reach a certain differential pressure value (≥0.5MPa); the filter device is here When the backflush is required; the intelligent pressure sensor transmits information to the power distribution system; the power distribution system is running; the drain valve is automatically opened; the backwash rotating arm intelligently rotates, causing the backwash node plate to rotate 360 degrees in the direction indicated by the arrow (stop), Under the action of the pressure difference; the filter elements are backwashed one by one; the dirt inside the filter element is backwashed and discharged through the sewage outlet under the working condition of reaction force; the backwashing process ends; the sewage valve is automatically closed; the equipment enters normal filtration state.

​​​

After-sales service:
1. The product implements three guarantees, the quality period is one year, and the technical service is provided for life.
2. The supplier provides the basic drawings of the product and is responsible for providing technical guidance when making the foundation.
3. During the commissioning and equipment commissioning warranty period, if the equipment is damaged due to our responsibility, we will repair and replace it free of charge. If the equipment is damaged due to improper transportation and delivery management, we have the responsibility to cooperate with the buyer. Do a good job in service.
4. After the contract is signed, we will train the demand-side operation and maintenance personnel for free.
5. During the commissioning and equipment commissioning warranty period, if the equipment has quality problems, we guarantee to reply immediately after receiving the notice from the demander, and send technicians to the scene to deal with the problem within 4 hours.
