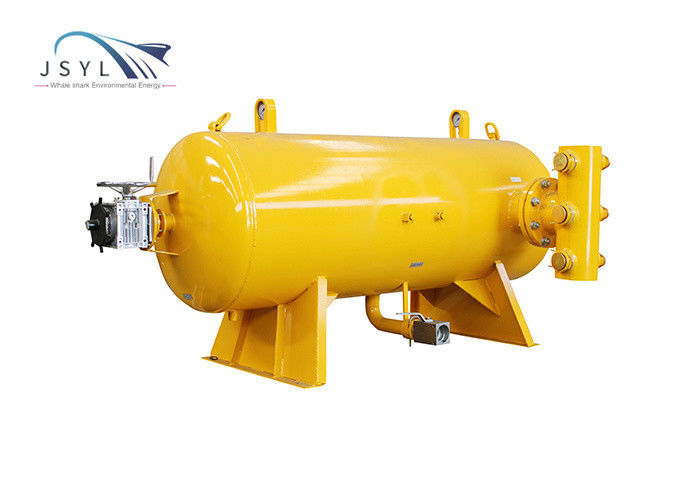

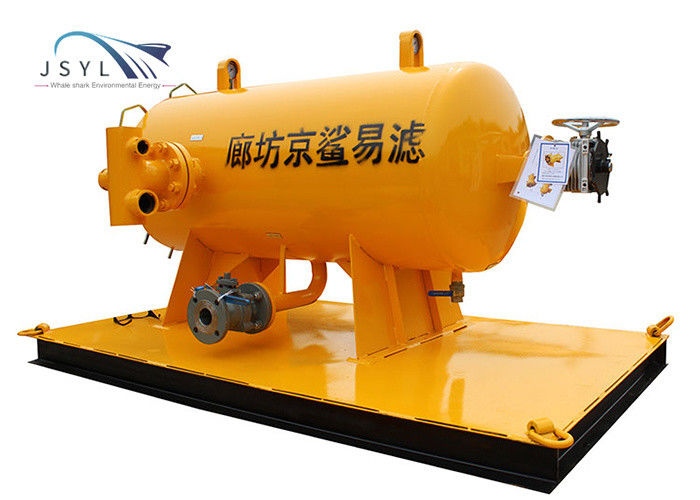

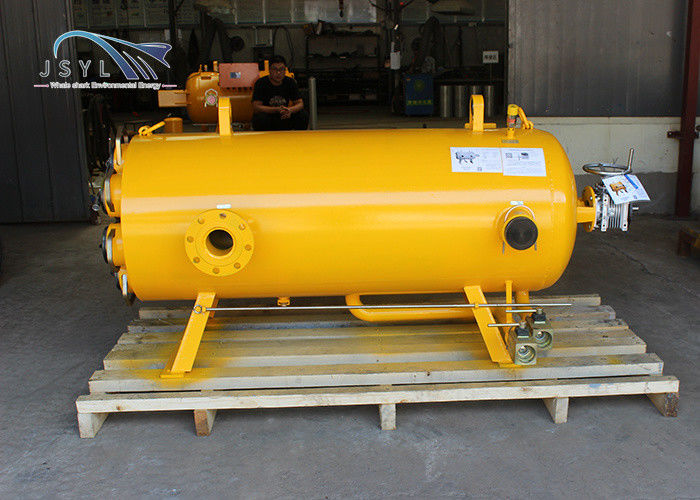

20 micron horizontal manual backwash filter
Describe
JSYL series equipment can filter out solid particles in various water and low-viscosity liquids (such as machined coolants), reduce liquid turbidity, purify water quality, reduce system dirt, bacteria, algae, rust, etc., and keep materials clean. In order to meet the requirements of system operation and downstream processes for liquid cleanliness, it can also be used to protect downstream key equipment from particle blockage, abrasion or fouling, and improve the operating efficiency and life of key equipment.
Working principle
The filter workflow is divided into filtering state and backwashing sewage state
1. Under normal filtration state: the liquid enters the body from the liquid inlet and is filtered by the filter element, the impurities in the liquid are deposited on the filter screen, the filtered liquid is discharged from the body liquid outlet, and the sewage valve is in a closed state;
2. Backwashing sewage state: After the filter device has passed through N multiple normal filtration processes; the impurities in the liquid are deposited on the filter screen, when the inlet pressure and the outlet pressure reach a certain differential pressure value (≥0.5MPa); the filter device is here When the backflush is required; the intelligent pressure sensor transmits information to the power distribution system; the power distribution system is running; the drain valve is automatically opened; the backwash rotating arm intelligently rotates, causing the backwash node plate to rotate 360 degrees in the direction indicated by the arrow (stop), Under the action of the pressure difference; the filter elements are backwashed one by one; the dirt inside the filter element is backwashed and discharged through the sewage outlet under the working condition of reaction force; the backwashing process ends; the sewage valve is automatically closed; the equipment enters normal filtration state.
| PRODUCT PARAMETER | |||
| Specifications | Equipment parameters | Specifications | Equipment parameters |
| Equipment model |
JSYL-JDX-SD-DN100 |
Cleaning method | Equipment's own filter element backwash |
| Shell selection | Carbon steel/stainless steel | Filter element form | Multi-layer woven mesh sintered |
| Single machine flow |
60 m3/h
|
Number of filter elements |
7 elements
|
| Rated pressure | 1.6MPa/2.5MPa/4.0MPa | Filtration accuracy | 20 μm |
| Applicable viscosity (cp) | 1-40cp | Applicable temperature (°C) | 0-95°C |
| Operation mode | Fully automatic intelligent control | Filter element replacement | Large cover flange replacement filter element |
|
Backwashing components
|
304 stainless steel | Filter element design | Cover replacement |
| Power unit | Compound reducer | Position proximity switch | Inductive |
| Backflushing node | Seven-star node disk | Pressure gauge | Seismic pressure gauge |
| Filter replacement cycle | Half a year/more than one year | Installation method | Vertical/Horizontal |
Advantage
1. Small size, large flow, high precision
2. Intelligent online backwash without stopping and continuous flow;
3. The body replaces the filter element, quick-plug design, easy to replace;
4. Multi-filter element structure; precision can be adjusted;
5. It can be installed vertically/horizontally, which significantly saves installation space
