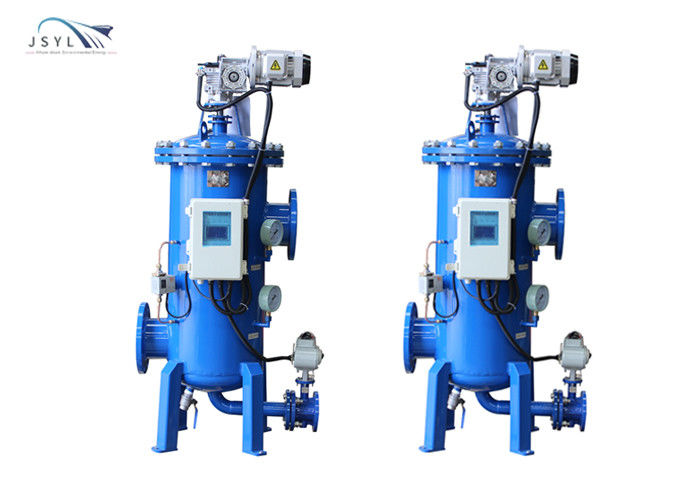

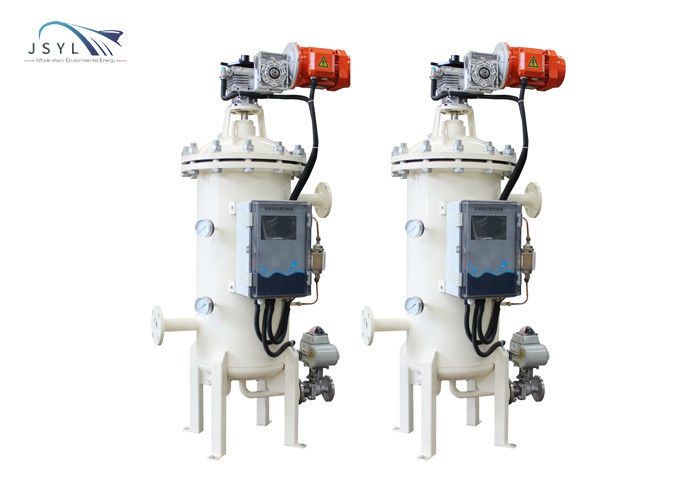

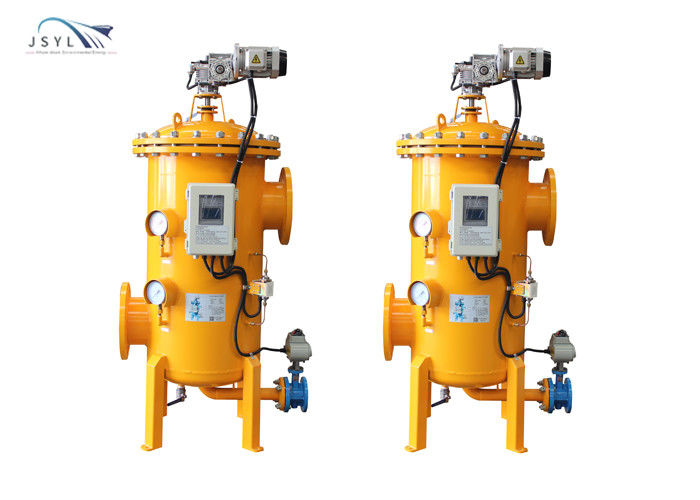

2-3m3/H Low Pressure Water Filter DN25 20 Micron Auto Backwash Strainer

DN25-20 micron automatic backwash filter

Product Description

The JSYL series of multi-core backwash filters are equipped with an automatic cleaning control system, integrated pressure difference control and time control parallel control functions, which can control the filter to operate efficiently according to the working conditions, and the intelligent control can be remote; it supports on-site control and adjustment.

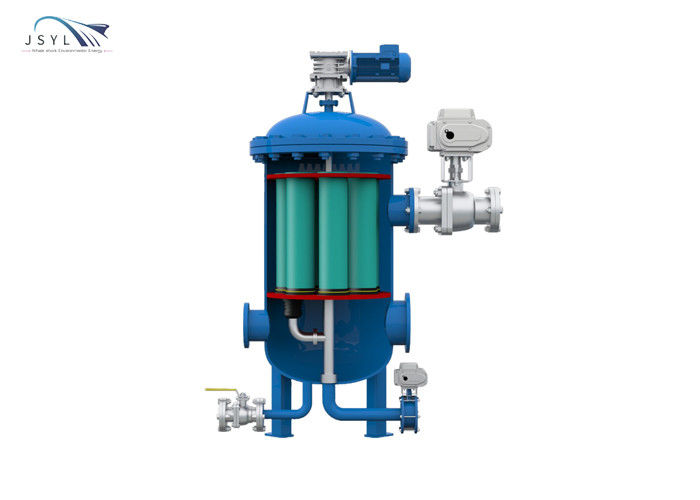

Working principle
The liquid enters the body filter from the inlet, and the liquid is filtered by the filter element. The impurities in the liquid are deposited on the stainless steel filter screen. When the inlet pressure and the outlet pressure reach the set value; the system automatically starts the backwash procedure; the sensor transmits the information To the power distribution system, the power distribution system receives the pressure signal to trigger: the backwashing rotating arm rotates; and then the filter element is recoiled one by one; under the action of the pressure difference, the dirt inside the filter element is washed away and discharged through the sewage outlet;

Applicable industry

Applicable liquid types: ground water, sea water, lake water, reservoir water, pond water, circulating cooling water, chilled water, high and low pressure spray water, water needle water, heat exchange water, sealing water, bearing cooling water, oil well water injection, process circulating water , Machining coolant, cleaning agent, cleaning water, etc.
