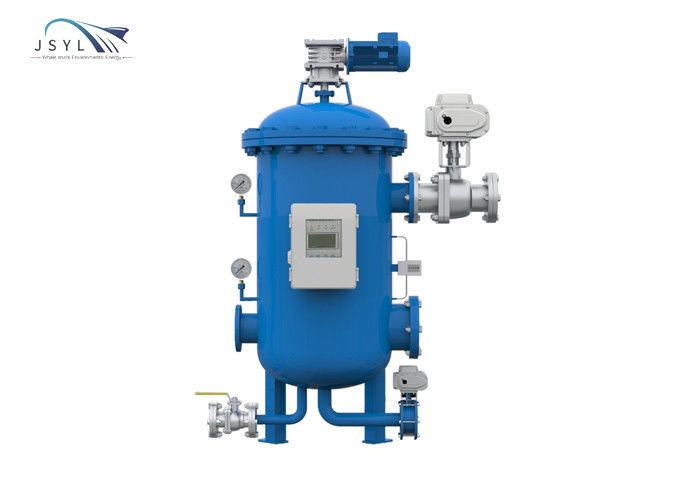

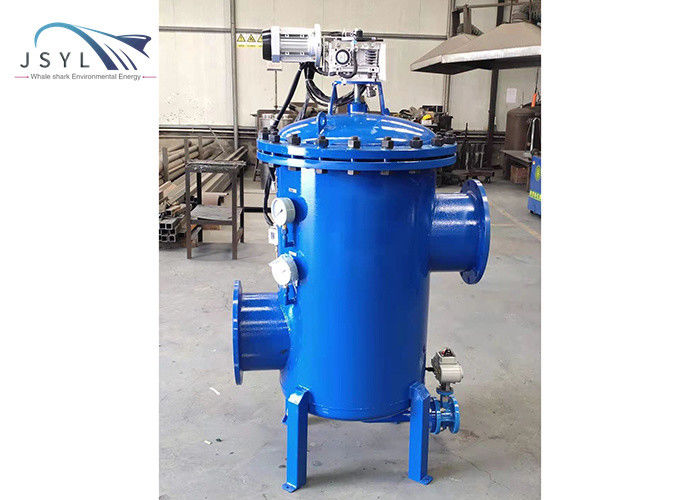

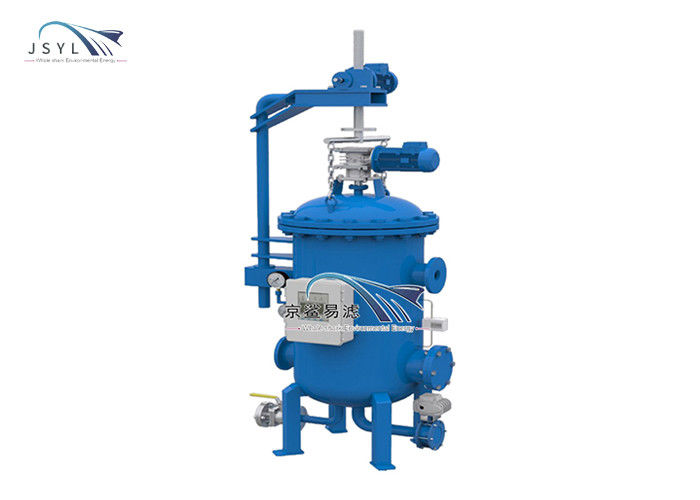

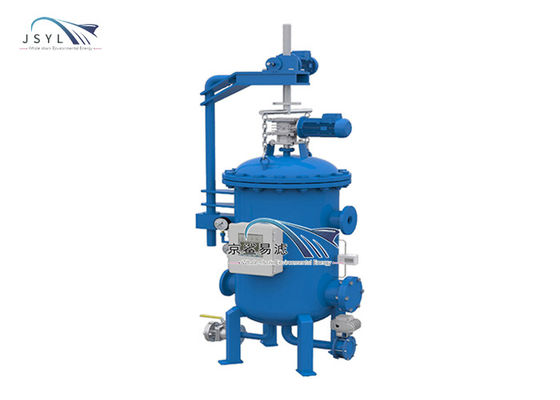

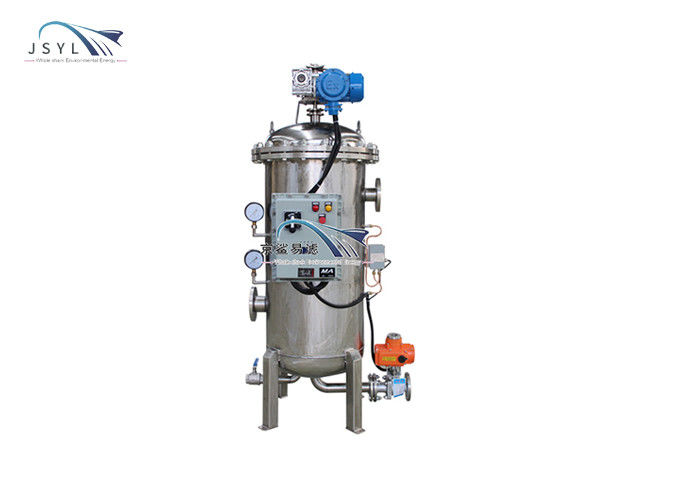

DN300 100um Auto Backwash Low Pressure Water Filter For Beverage Plants

DN300-100 micron automatic multi-core backwash filter

Product Description

When the preset pressure drop or time is reached, the self-cleaning program is triggered. The gear motor drives the backwash rotating arm to align with the filter screen. The upper end of the screen is sealed, and the lower end is connected with a cleaning nozzle. Then the purge valve is opened and the screen and drain pipe are connected. Pressure difference between filters

Advantage

The liquid flows into the filter from the inlet, then flows through the inner surface of the filter screen, and flows out from the outlet. Impurities are trapped on the inner surface of the filter screen, and the filter cake slowly accumulates, causing the pressure drop at the inlet and outlet to gradually increase. The flux of the filter becomes low.

Applicable industry

Applicable liquid types: ground water, sea water, lake water, reservoir water, pond water, circulating cooling water, chilled water, high and low pressure spray water, water needle water, heat exchange water, sealing water, bearing cooling water, oil well water injection, process circulating water , Machining coolant, cleaning agent, cleaning water, etc.
