10-2000um Self Cleaning Low Pressure Water Filter For Papermaking
-
High Light
10um Low Pressure Water Filter
,Papermaking Low Pressure Water Filter
,2000um self cleaning water filter
-
Product NameLow Pressure Series Water Filter
-
OriginHebei China
-
Applicable IndustriesManufacturing Plants, Food And Beverage Plants, Farms, Restaurants, Energy And Mining, Food And Beverage Stores
-
Warranty ServiceVideo Technical Support, Online Support Maintenance And Repair Services
-
Core ComponentsPLC, Motor, Filter Element, Valve
-
Warranty1 Year
-
FilterSintered Filter
-
ApplicationWater Treatment, Papermaking, Chemicals, Power Plants, Steel Plants, Etc.
-
Place of OriginHeBei China
-
Brand NameJing shark
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Time15 days
-
Payment TermsT/T
-
Supply Ability10,000 units per month

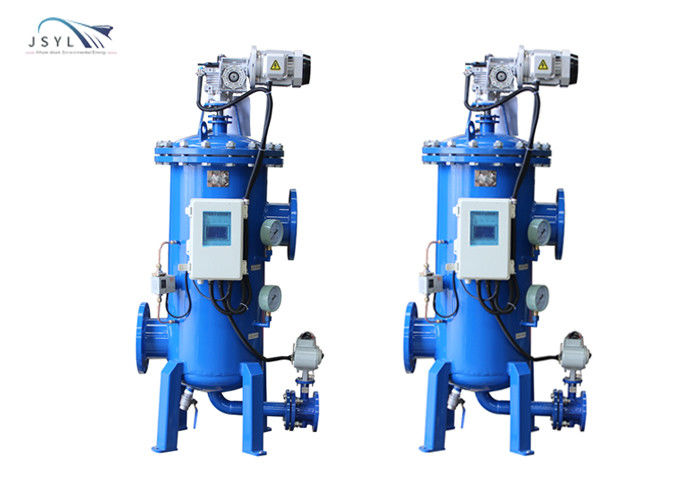

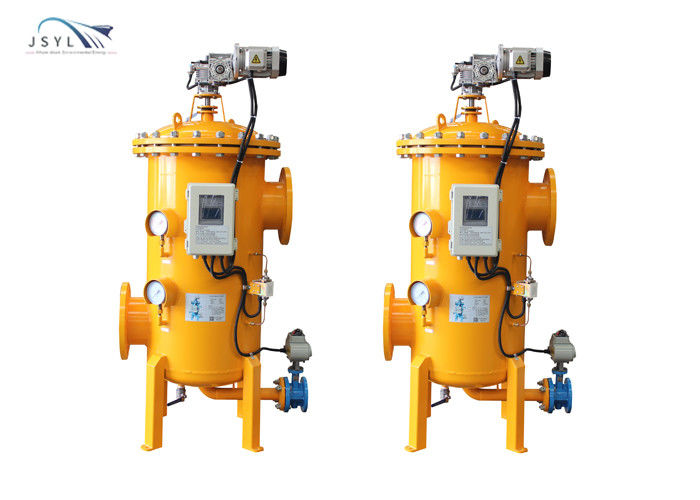

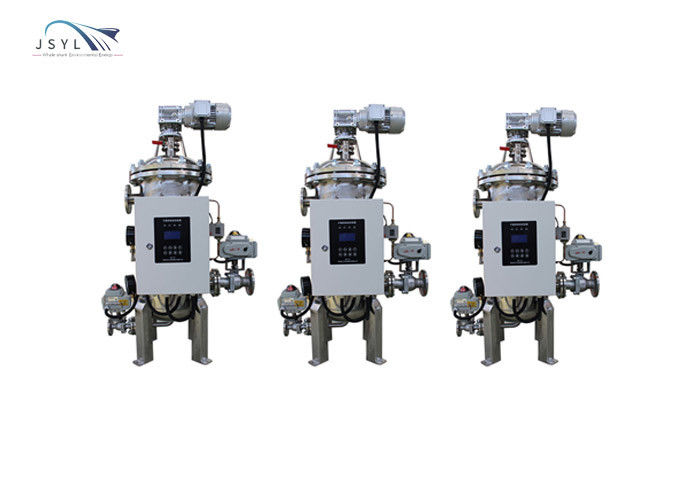

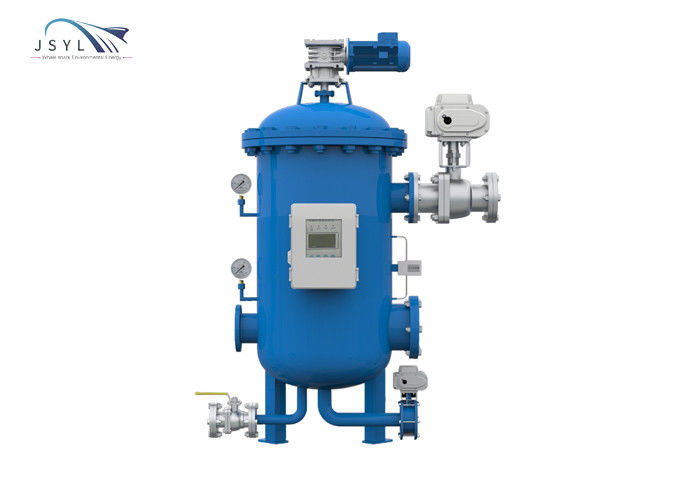

10-2000um Self Cleaning Low Pressure Water Filter For Papermaking
Self-cleaning low-pressure shower water backwash filter
Product Description
The JSYL series is a new generation of backwash filters. The interior adopts an integrated porous filter design. When the filter screen is blocked, the unique backwash rotating arm will clean the filter screen one by one. As a high-end recoil filter, JSYL filter is designed for customers, mainly focusing on product quality and high reliability, using key components of the world's top quality (such as filter motor, intelligent control system, etc)
Advantage
JSYL filter has outstanding advantages that are different from ordinary screen-type self-cleaning filters. The accuracy range of JSYL filter is 10-2000 microns. It uses an extremely strong V-shaped wedge-shaped mesh filter with high surface clearance accuracy. The stand-alone filter area is very large, and it can be finely filtered at low surface flow rates. The super-large flow of single filter is 8000m3/h. It has extremely high reliability and can handle poor water quality, such as sludge impurities, soft and viscous impurities, high impurities, a small amount of hair and fibrous impurities.
| PRODUCT PARAMETER | |||
| Shell selection | Carbon steel/stainless steel | Filter element form |
Wedge wire gap type Multi-layer woven mesh sintered |
| Single machine flow | 3-8000 m3/h | Number of filter elements | 6-12 core |
| Preset pressure |
1.6MPa
|
Filtration accuracy |
10-2000 microns
|
| Applicable viscosity | 1-40cp | Applicable temperature | 0-95°C |
| Operation mode | Fully automatic intelligent control | Power supply | 380V, 50Hz/ 220v |
| Backwash components | 304 stainless steel | Filter element design | Detachable replacement |
| Power machine | Compound reducer | Position proximity switch | Inductive |
| Backwash node | Seven Star Node Disk | Pressure gauge | Anti-vibration pressure gauge |
| Filter replacement cycle | Half a year / more than one year | Installation method | Vertical installation/horizontal installation |
Applicable industry
Applicable liquid types: ground water, sea water, lake water, reservoir water, pond water, circulating cooling water, chilled water, high and low pressure spray water, water needle water, heat exchange water, sealing water, bearing cooling water, oil well water injection, process circulating water , Machining coolant, cleaning agent, cleaning water, etc.
Our products are sold all over the world, you can rest assured.
