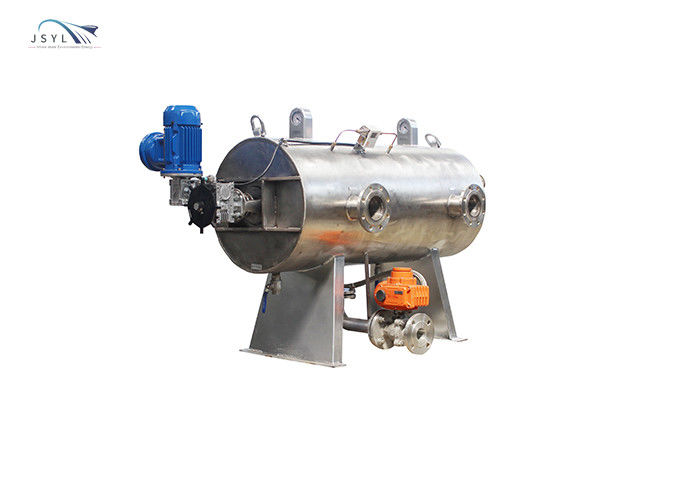

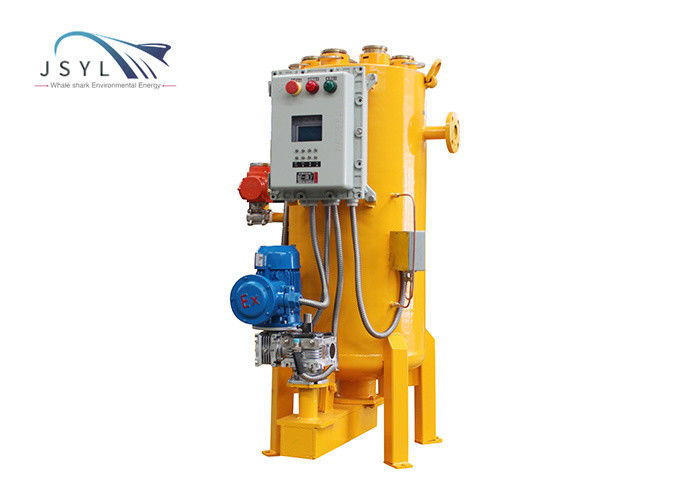

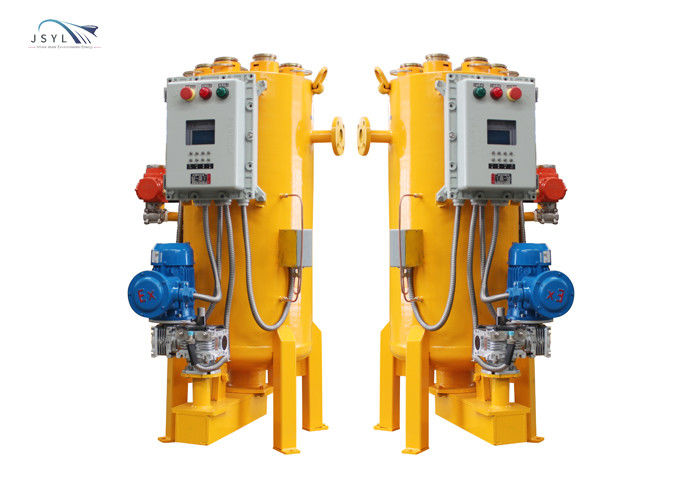

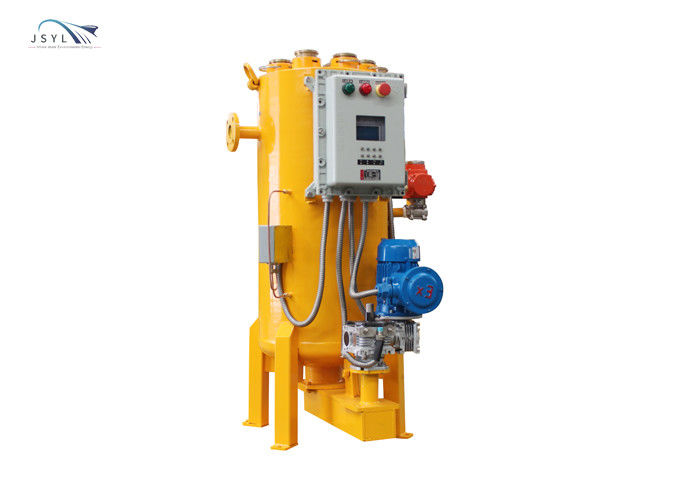

BT4 explosion-proof precision multi-core automatic backwash filter
introduce:
The JSYL series multi-element filter has the characteristics of backwashing and filtering. The machine continuously filters 24 hours a day. Downtime costs, maintenance costs and labor costs are advanced solutions for water and aqueous liquid filtration.
Features:
1. Small size, large flow, high precision
2. Intelligent online backwash without stopping and continuous flow;
3. The body replaces the filter element, quick-plug design, easy to replace;
4. Multi-filter element structure; precision can be adjusted;
5. It can be installed vertically/horizontally, which significantly saves installation space
6. The filter element has an online recoil precision of 5 microns, which can be used repeatedly.
| PRODUCT PARAMETER | |||
| Specifications | Equipment parameters | Specifications | Equipment parameters |
| Equipment model |
JSYL-JDX-ZD-DN(25-800) |
Cleaning method | Equipment's own filter element backwash |
| Shell selection | Carbon steel/stainless steel | Filter element form | Multi-layer woven mesh sintered |
| Single machine flow |
3-800 m3/h
|
Number of filter elements |
3-7 elements
|
| Rated pressure | 1.6MPa/2.5MPa/4.0MPa | Filtration accuracy | 10-200 μm |
| Applicable viscosity (cp) | 1-40cp | Applicable temperature (°C) | 0-95°C |
| Operation mode | Fully automatic intelligent control | Filter element replacement | Large cover flange replacement filter element |
|
Backwashing components
|
304 stainless steel | Filter element design | Cover replacement |
| Power unit | Compound reducer | Position proximity switch | Inductive |
| Backflushing node | Seven-star node disk | Pressure gauge | Seismic pressure gauge |
| Filter replacement cycle | Half a year/more than one year | Installation method | Vertical/Horizontal |
Enterprise Commitment:
Food industry production water and reuse water filtration, production process water supply filtration, equipment cooling water with high water quality requirements; steel, petroleum, chemical, paper, automobile, food, metallurgy and other industries circulating water filtration, reclaimed water reuse, wastewater depth Treatment and filtration, central air conditioning, boiler backwater filtration, groundwater, surface water, swimming pool, landscape water purification and purification, breeding water filtration.
Our products are sold all over the world, you can rest assured.
