370 Watt PLC Fully Automatic Backwash Filters Pipeline Water Backwash Filtration
-
High Light
PLC Fully Automatic Backwash Filters
,370 Watt Automatic Backwash Filters
,Pipeline Water Backwash Filtration
-
Product NameAutomatic Backwash Filter System
-
OriginHebei China
-
Applicable IndustriesCondition: New Applicable Industries: Manufacturing Plants, Food And Steel Plants, Power Plants And Mining Warranty Service: Online Support Marketing Type: 2020 New Products Core Component Warranty: 1 Year Core Components: Backwash Components Origin: Hebei
-
Core ComponentsBackwash Components
-
Work Pressure>0.5mPa
-
Filter Level5-2000 Microns
-
Standard Design Pressure1.0MPa/1.6MPa/2.5MPa, Can Provide Higher Pressure Level
-
Fluid Working Temperature0-95°C
-
Flow Range2-8000m3/h
-
Motor370W, Three-phase, 380V
-
Place of OriginHeBei China
-
Brand NameJing shark
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Time15 days
-
Payment TermsT/T
-
Supply Ability10,000 units per month

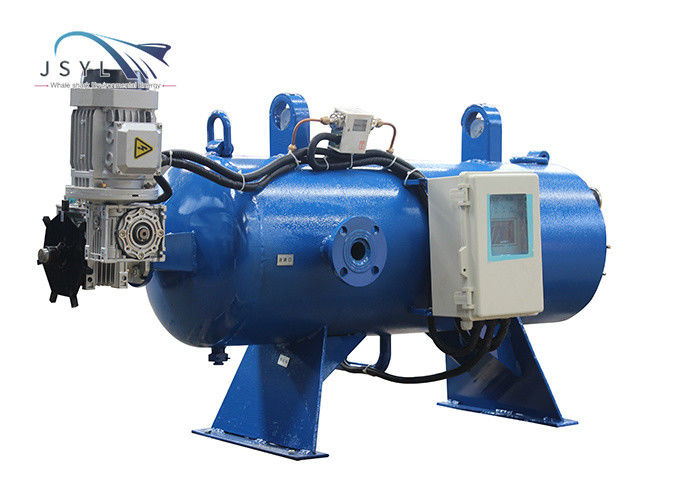

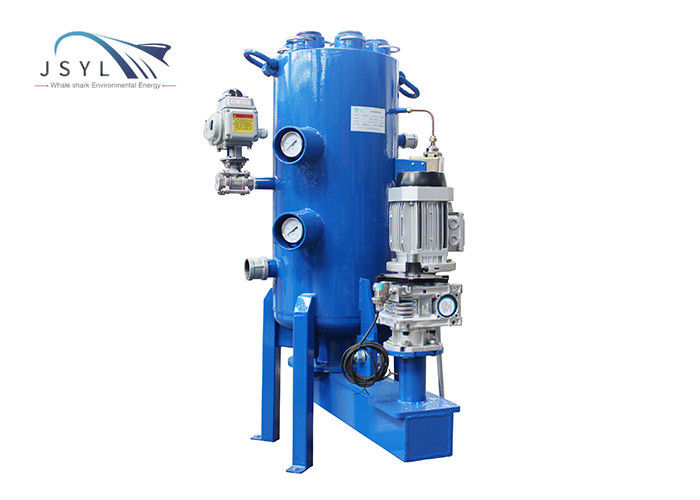

370 Watt PLC Fully Automatic Backwash Filters Pipeline Water Backwash Filtration
Fully automatic backwash filter for pipeline water filtration
Introduction:
Automatic self-cleaning filter, its internal structure is composed of 304 stainless steel brush, stainless steel filter screen and other main structural parts. The drive motor and electric valve automatically clean and drain. The operation mode is automatic (or manual), with dual functions of differential pressure and automatic sewage discharge. The automation component adopts the most advanced and reliable PLC programmable controller in the world today.
Features:
JSYL series equipment can filter out solid particles in various water and low-viscosity liquids (such as machined coolants), reduce liquid turbidity, purify water quality, reduce system dirt, bacteria, algae, rust, etc., and keep materials clean. In order to meet the requirements of system operation and downstream processes for liquid cleanliness, it can also be used to protect downstream key equipment from particle blockage, abrasion or fouling, and improve the operating efficiency and life of key equipment.
| PRODUCT PARAMETER | |||
| Specifications | Equipment parameters | Specifications | Equipment parameters |
| Equipment model |
JSYL-JDX-ZD-DN(25-800) |
Cleaning method | Equipment's own filter element backwash |
| Shell selection | Carbon steel/stainless steel | Filter element form | Multi-layer woven mesh sintered |
| Single machine flow |
2-900 m3/h
|
Number of filter elements |
3-7 elements
|
| Rated pressure | 1.6MPa/2.5MPa/4.0MPa | Filtration accuracy | 10-2000 μm |
| Applicable viscosity (cp) | 1-40cp | Applicable temperature (°C) | 0-95°C |
| Operation mode | Fully automatic intelligent control | Filter element replacement | Large cover flange replacement filter element |
|
Backwashing components
|
304 stainless steel | Filter element design | Cover replacement |
| Power unit | Compound reducer | Position proximity switch | Inductive |
| Backflushing node | Seven-star node disk | Pressure gauge | Seismic pressure gauge |
| Filter replacement cycle | Half a year/more than one year | Installation method | Vertical/Horizontal |
After-sales service:
1. The product implements three guarantees, the quality period is one year, and the technical service is provided for life.
2. The supplier provides the basic drawings of the product and is responsible for providing technical guidance when making the foundation.
3. During the commissioning and equipment commissioning warranty period, if the equipment is damaged due to our responsibility, we will repair and replace it free of charge. If the equipment is damaged due to improper transportation and delivery management, we have the responsibility to cooperate with the buyer. Do a good job in service.
4. After the contract is signed, we will train the demand-side operation and maintenance personnel for free.
5. During the commissioning and equipment commissioning warranty period, if the equipment has quality problems, we guarantee to reply immediately after receiving the notice from the demander, and send technicians to the scene to deal with the problem within 4 hours.
Our products are sold all over the world, you can rest assured.
