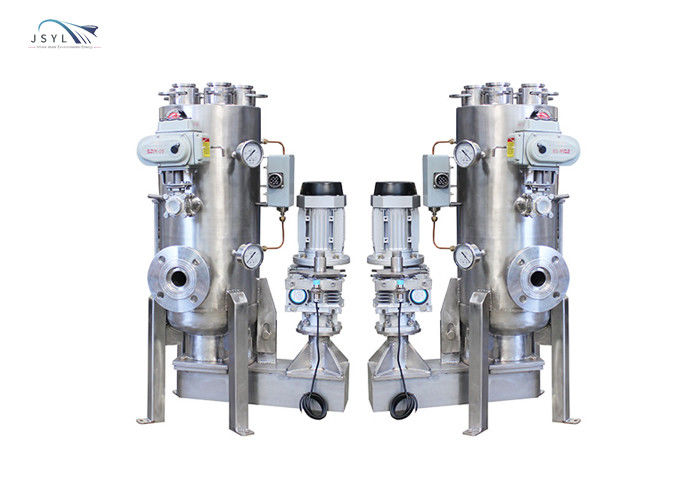

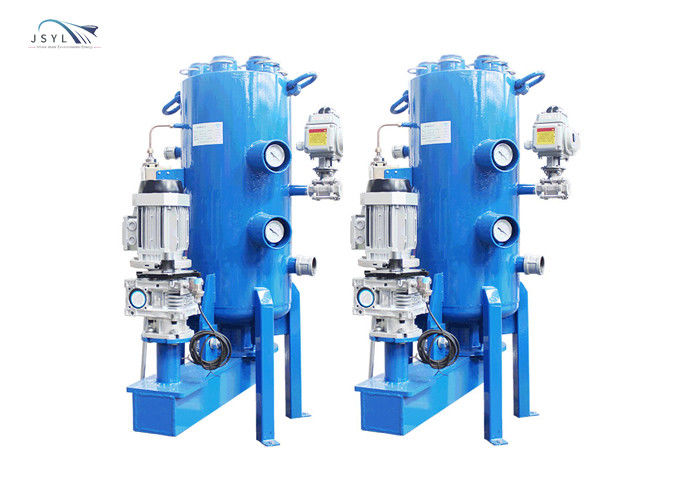

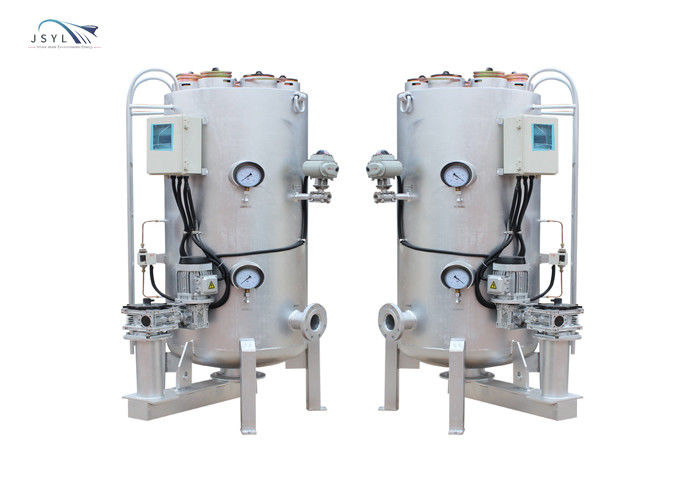

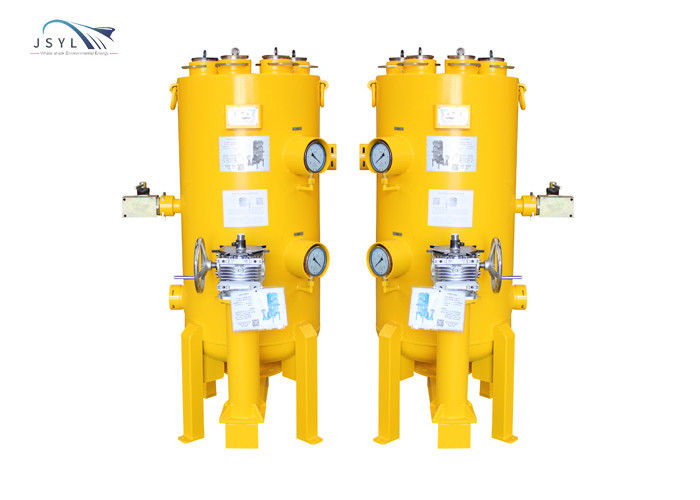

2.5MPA Multi Core Automatic Backwash Water Filter For Sewage Wastewater

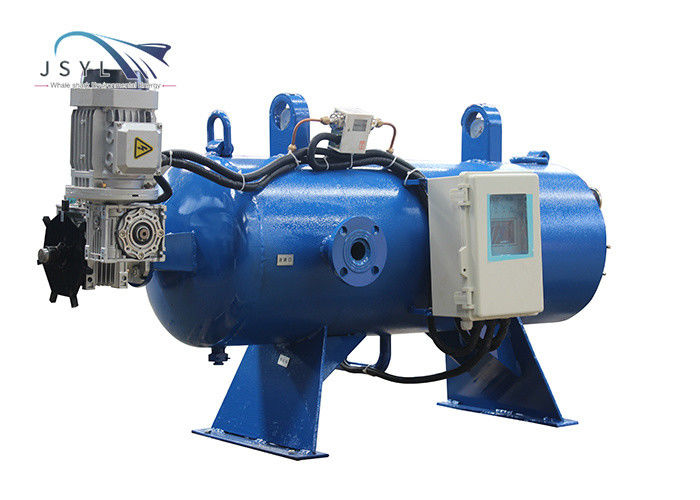

Horizontal 2.5MPA multi-core automatic backwash water filter for sewage and wastewater

Introduction:
The liquid flows into the filter from the inlet, then flows through the inner surface of the filter screen, and flows out from the outlet. Impurities are trapped on the inner surface of the filter screen, and the filter cake slowly accumulates, causing the pressure drop at the inlet and outlet to gradually increase. The flux of the filter becomes low.
When the preset pressure drop or time is reached, the self-cleaning program is triggered. The gear motor drives the backwash rotating arm to align with the filter screen. The upper end of the screen is sealed, and the lower end is connected with a cleaning nozzle. Then the purge valve is opened and the screen and drain pipe are connected. The pressure difference between the filters and the outer outlet of the filter element makes the filtrate backwash the filter screen, the filter cake falls off and blows down into the sewage pipe.

Features:

1. Automatic continuous online filtration, without interrupting the flow during backwashing, reducing downtime and maintenance costs;
2. The filter screen has high filtration accuracy, high backwashing efficiency, and high structural strength; the service life is more than 10 years;
3. Pulse backwashing; after aligning the filter element, open the drain valve; backwashing intensity is high, the effect is good, and it saves time and water;
4. Water enters at both ends of the filter to increase the flux of the filter cartridge; the free flow of water can delay the blockage of the surface and avoid the blockage of one end of the filter;
5. Compact design, large flux, greatly saving installation space and construction cost;
6. Highly integrated, no need for a large number of automatic valves, joints, and seals, high reliability and low operating cost;

7. The automatic control system has high reliability; the interface is intuitive and easy to operate efficiently according to actual working conditions.

​​​

After-sales service:
1. The product implements three guarantees, the quality period is one year, and the technical service is provided for life.
2. The supplier provides the basic drawings of the product and is responsible for providing technical guidance when making the foundation.
3. During the commissioning and equipment commissioning warranty period, if the equipment is damaged due to our responsibility, we will repair and replace it free of charge. If the equipment is damaged due to improper transportation and delivery management, we have the responsibility to cooperate with the buyer. Do a good job in service.
4. After the contract is signed, we will train the demand-side operation and maintenance personnel for free.
5. During the commissioning and equipment commissioning warranty period, if the equipment has quality problems, we guarantee to reply immediately after receiving the notice from the demander, and send technicians to the scene to deal with the problem within 4 hours.
