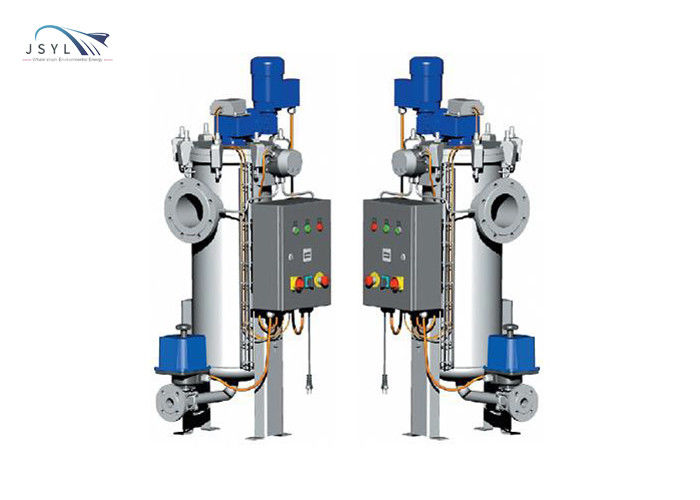

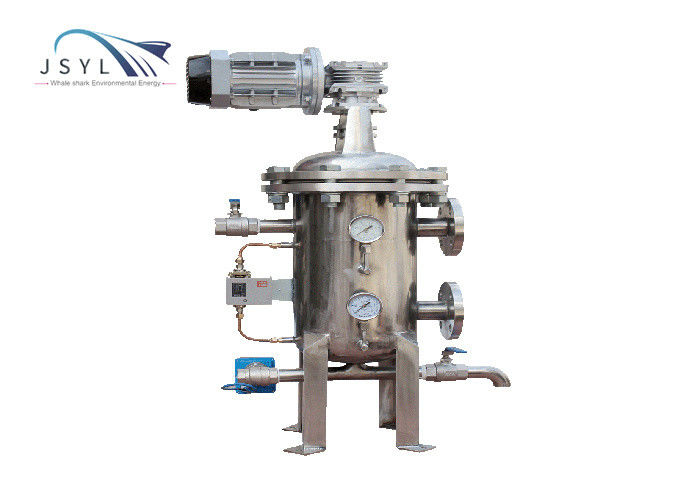

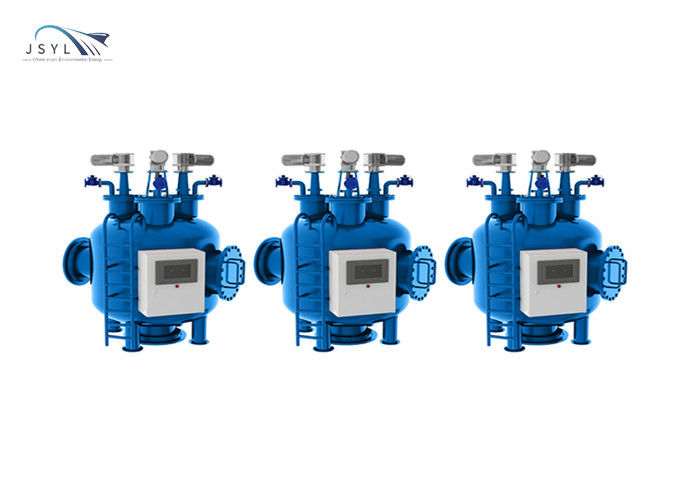

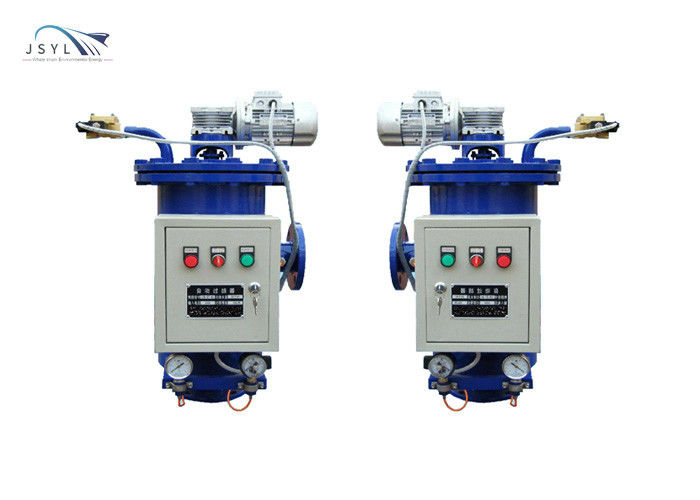

Automatic brush filter for steel mills
Describe
The electric brush filter is a fully automatic self-cleaning filter. A set of brushes is installed in the filter screen. The brushes are driven by the motor to rotate, and the equipment starts to clean. When cleaning, the signal from the differential pressure switch is sent to the control panel, and the control panel opens the drain valve and starts the motor at the same time, driving the brush to rotate to remove the dirt and impurities. Under the action of hydraulic power, the filter is discharged through the drain valve, and there is no need to stop the flow for cleaning.
Working principle

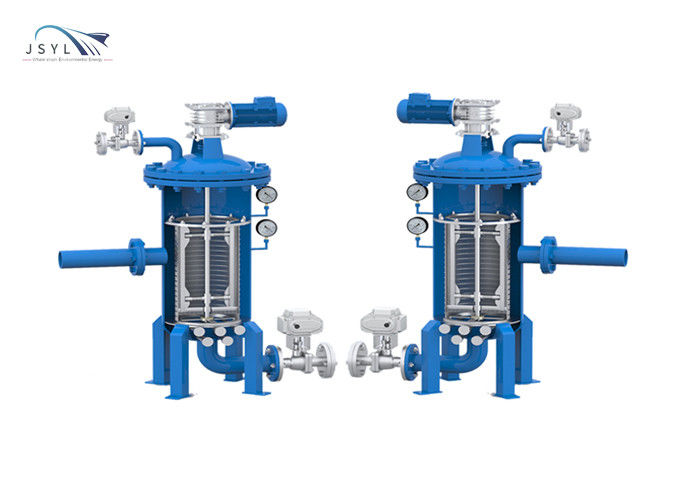

The range when the pressure difference between the water inlet and outlet reaches the set value. The control system rotates the stainless steel brush and the dirt is brushed to the bottom. The bottom drain valve is opened and the dirt is discharged. The grab command can also be executed according to the set time period.
| Product name | Automatic brush type self-cleaning filter |
| Equipment model |
JSYL-S1-ZD-DN(50-800) |
| Shell material | carbon steel |
| Filtration accuracy | 100-4000 microns |
| Flow rate (cubic meters/hour) | 15-4000 |
| Control method | automatic intelligent control/manual control |
| Function | Remove suspended particles and impurities in the liquid |
| Color and size: | Can be customized |
| Installation method: | Vertical/horizontal |
Features
1. The backwashing time is short, and the backwashing water consumption is only 0.001~0.002% of the normal water production, saving water, electricity and energy.
2. The structure design is compact and reasonable, the floor space is small, and the installation and movement are flexible and convenient.
3. The equipment has few wearing parts, no consumables, low operation and maintenance costs, and simple operation and management.
4. It has a wide range of applications and can be applied to different raw water quality and water requirements.
