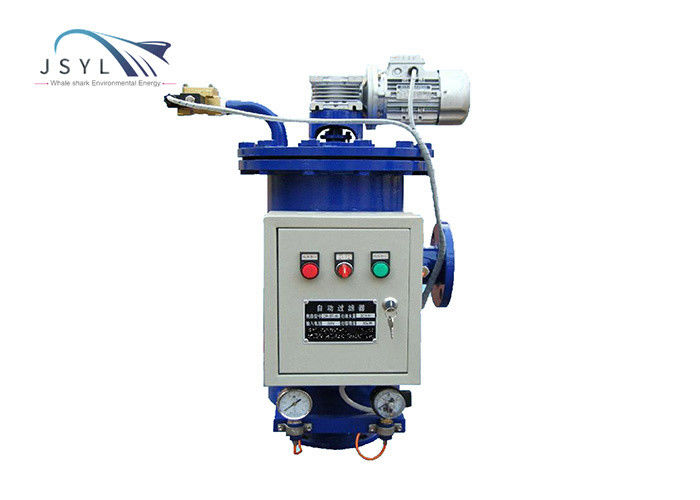

Automatic self-cleaning filter to remove liquid suspended particles and impurities
Describe
The automatic self-cleaning filter is highly efficient and automatically backwashed. It can realize online automatic cleaning, automatic sewage discharge function, operation with three functions of differential pressure/timing/manual, and provide stable water quality guarantee for your water system. The filter continues to run during the flushing process, and a small amount of water is used during the flushing process, which makes the filter very efficient.
Working principle
The range when the pressure difference between the water inlet and outlet reaches the set value. The control system rotates the stainless steel brush and the dirt is brushed to the bottom. The bottom drain valve is opened and the dirt is discharged. The grab command can also be executed according to the set time period.
| Filtration process: | 20-5000 cubic meters/hour | Water temperature range: | 0～70℃ |
| Maximum recommended working pressure: | 10 kg | Working pressure during minimum backwashing: | 2 kg |
| Available filtration: | 20-4000 microns | Connection: | flange |
| Backwash time: | 20-30 seconds | Water consumption during backwashing: | 1%-3% of filtered water |
| Control model: | PLC / timer / manual | Cleaning method: | brush |
| Drive mode: | Motor drive | Filter element: | stainless steel |
| Filter housing material: | 304 | Sewage discharge method: | fully automatic |
| Installation: | vertical and horizontal | Rated working voltage: | 380V/50Hz or customized |
Features
1: Large flow; small volume; large filter area
2: Continuous flow during self-cleaning and sewage, low water consumption and short cleaning time.
3: The filter element assembly is easy to disassemble, replace and maintain.
4: The unique design of the cleaning brush (with a spring and retractable adjustment; unique)
5: Fully automatic intelligent control can be remote.
6: The motor is automatically switched between forward and reverse
7: Manual intake valve/drain valve, the equipment stops working, and the internal sewage can be discharged manually
Our products are sold all over the world, you can rest assured.
