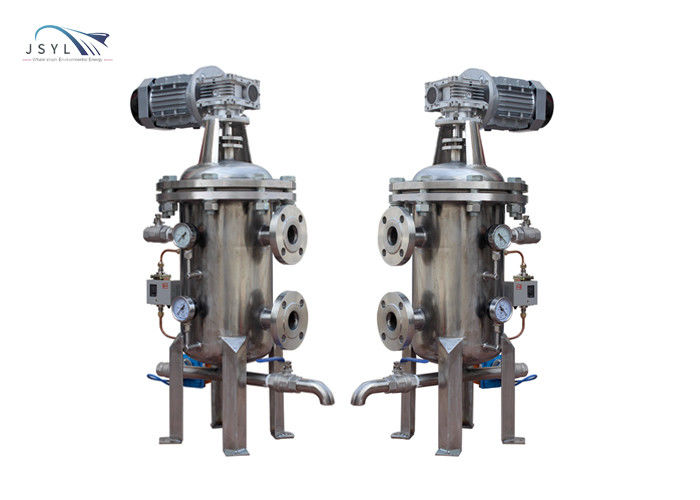

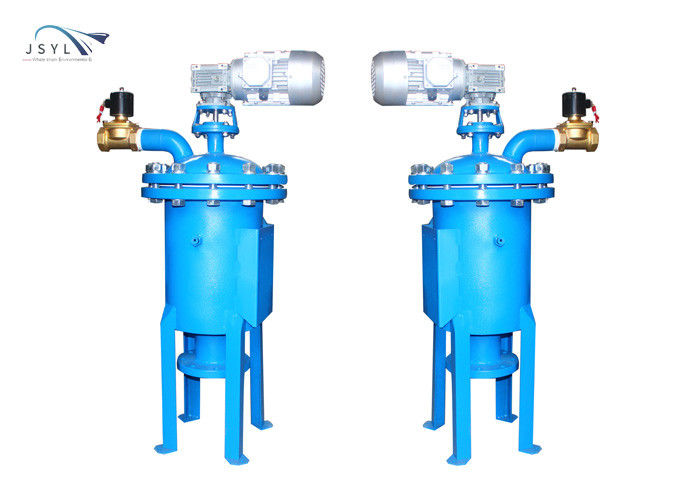

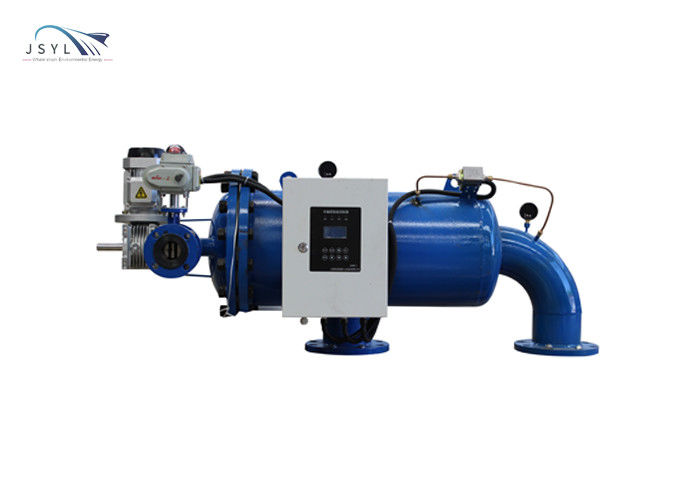

150 micron brush type horizontal automatic self-cleaning filter
Describe
The automatic self-cleaning filter is highly efficient and automatically backwashed. It can realize online automatic cleaning, automatic sewage discharge function, operation with three functions of differential pressure/timing/manual, and provide stable water quality guarantee for your water system. The filter continues to run during the flushing process, and a small amount of water is used during the flushing process, which makes the filter very efficient.
Features
1: Large flow; small volume; large filter area
2: Continuous flow during self-cleaning and sewage, low water consumption and short cleaning time.
3: The filter element assembly is easy to disassemble, replace and maintain.
4: The unique design of the cleaning brush (with a spring and retractable adjustment; unique)
5: Fully automatic intelligent control can be remote.
6: The motor is automatically switched between forward and reverse
7: Manual intake valve/drain valve, the equipment stops working, and the internal sewage can be discharged manually
| Product name: | Automatic brush type self-cleaning filter |
| Device model: | JSYL-S1-ZD-DN(50-800) |
| Shell material: | carbon steel/304 |
| Filtration accuracy: | 100-4000 microns |
| Flow rate (cubic meters/hour): | 15-4000 |
| Control method: | automatic intelligent control/manual control |
| Function: | Remove suspended particles and impurities in the liquid |
| Color and size: | can be customized |
| Installation method: | horizontal |
Application scope
Electricity, petrochemical, fine chemicals, food and beverage, automobile industry, metallurgy, papermaking, medicine, microelectronics, environmental protection water treatment and other industries.
Our products are sold all over the world, you can rest assured.
