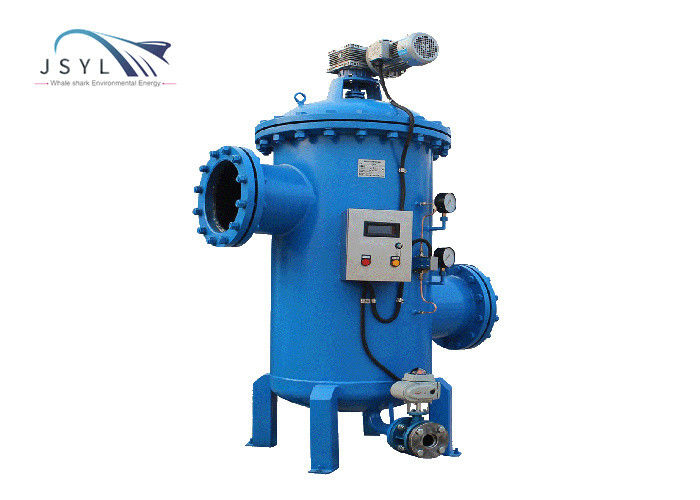

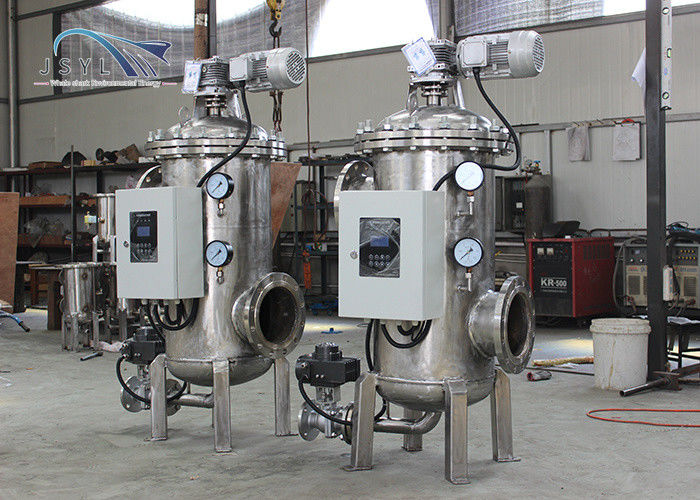

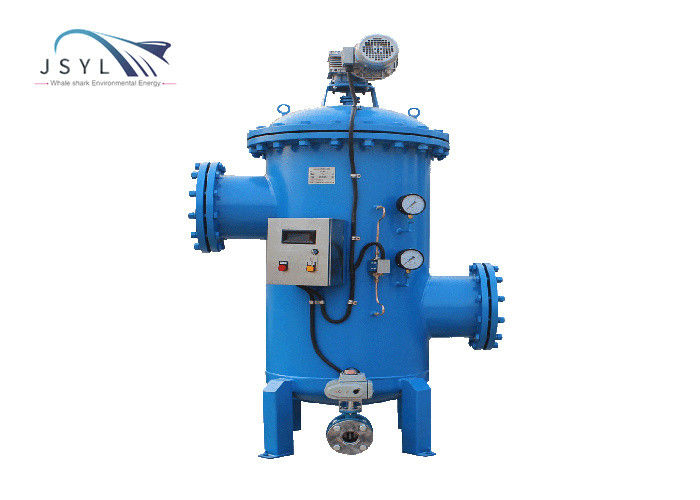

Hot selling cooling water self-cleaning filter
Describe
1. The new self-cleaning filter produced by JSYL is specially designed for continuous on-line filtration. The impurities on the inner surface of the filter screen are removed by efficient mechanical scraping.
2. JSYL filter can quickly remove impurities on the surface of the filter screen, thereby removing more impurities with high efficiency. Suitable for filtration of water and various low-viscosity liquids. JSYL filters are designed and manufactured in accordance with high-performance, high-quality, and high-reliability standards, with world-class quality.
Working principle
The liquid enters the body filter through the inlet to filter, the liquid is filtered by the filter element, the impurities in the liquid are deposited on the stainless steel filter screen, when the inlet pressure and outlet pressure reach the set value; the system automatically starts the self-cleaning program; the sensor sends the information It is sent to the power distribution system, and the power distribution system receives the pressure signal to trigger: the electric motor drives the brush to rotate to clean the filter element; at the same time, the sewage valve opens to discharge the sewage; the cleaning time is 10-60 seconds (settable) seconds, and the valve closes when the cleaning ends; The motor stops running; the system returns to the initial state; it begins to enter the next filtration process.
| Model: | JSYL series | Applicable liquid: | water and viscous liquid (˂800,000cps); impurity level˂1,000ppm |
| Filtration accuracy: | 100-3,000μm | Design pressure: | 1.0MPa (Higher pressure can be customized.) |
| Design temperature: | 0-200°C (depending on the seal.) | Single filter area: | 0.14m2-1.45m2 |
| Cleaning pressure drop: | 0.05MPa | PLC controller: | differential pressure transmitter or differential pressure switch |
| Gear motor: | three-phase power supply, 380V, protection grade IP55; worm gear reducer | Connection standard: | flange, HG20592-2009 (standard), HG20615-2009 (ANSI B16.5 compatible) |
| Filter element: | wedge mesh/sintered mesh | Filter element material: | 304/316L |
| Main body material: | carbon steel/SS304/SS316L | Brush material: | 304 stainless steel wire |
Features
1: The filter element assembly is easy to disassemble, replace and maintain.
2: The unique design of the cleaning brush (with a spring and retractable adjustment; unique)
3: Motor forward and reverse automatically switch
Our products are sold all over the world, you can rest assured.
