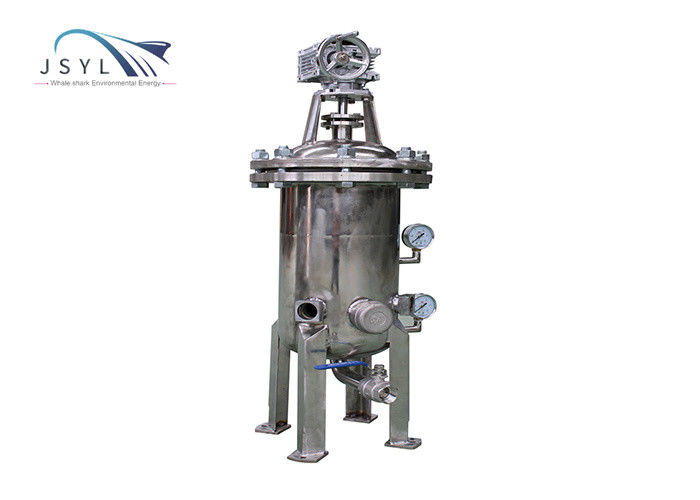

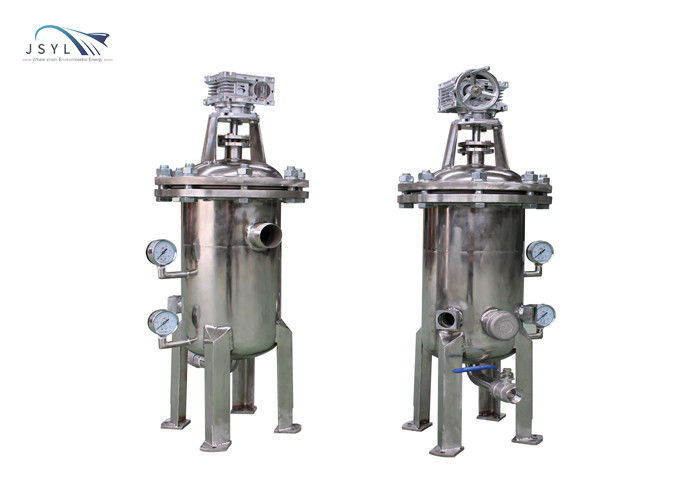

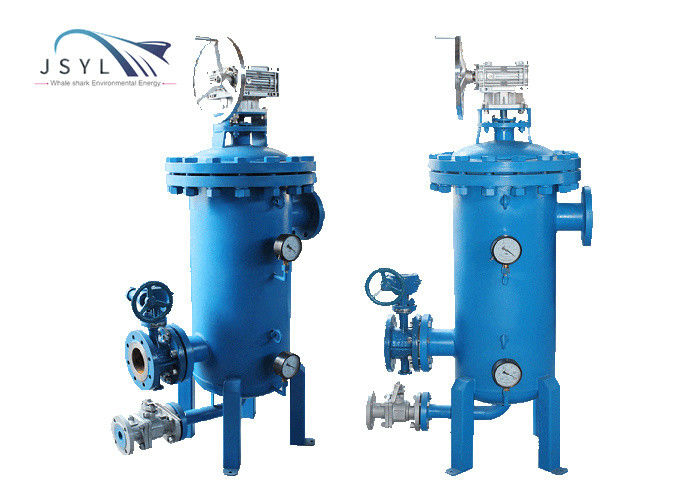

Custom Small Volume Manual Self Cleaning Brush Filter

Manual brush type self-cleaning filter


Describe

1. The new self-cleaning filter produced by JSYL is specially designed for continuous on-line filtration. The impurities on the inner surface of the filter screen are removed by efficient mechanical scraping.
2. JSYL filter can quickly remove impurities on the surface of the filter screen, thereby removing more impurities with high efficiency. Suitable for filtration of water and various low-viscosity liquids. JSYL filters are designed and manufactured in accordance with high-performance, high-quality, and high-reliability standards, with world-class quality.

Working principle

Normal working mode:

The liquid enters the body filter through the inlet to filter, the liquid is filtered by the filter element, and the impurities in the liquid are deposited on the stainless steel filter screen. When the inlet pressure and outlet pressure reach the allowable range value; the system needs manual self-cleaning Equipment; the hand-cranked reducer drives the brush to rotate to clean the filter element; at the same time, the drain valve opens to discharge the sewage; the cleaning time (the pressure difference between the inlet and outlet is zero), the valve closes when the cleaning is over; the reducer stops operating; the system returns to the initial state ; Start to enter the next filtration process.

Features

1: Large flow; small volume; large filter area
2: Continuous flow during self-cleaning and sewage, low water consumption and short cleaning time.
3: The filter element assembly is easy to disassemble, replace and maintain.
4: The unique design of the cleaning brush (with a spring and retractable adjustment; unique)
5: Manual intake valve/drain valve, the equipment stops working, and the internal sewage can be discharged manually
