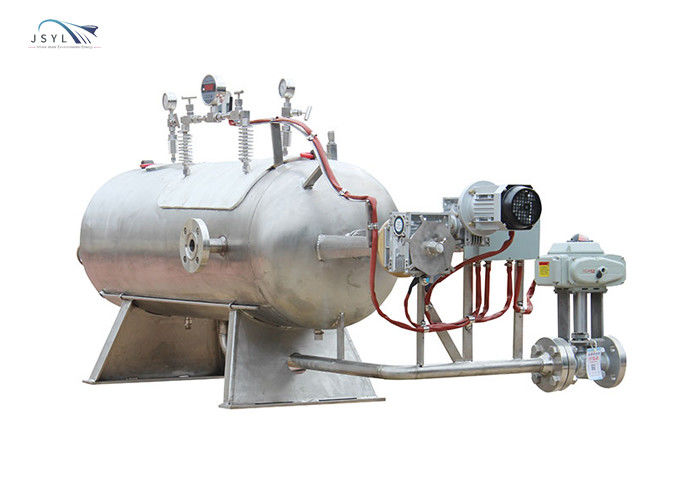

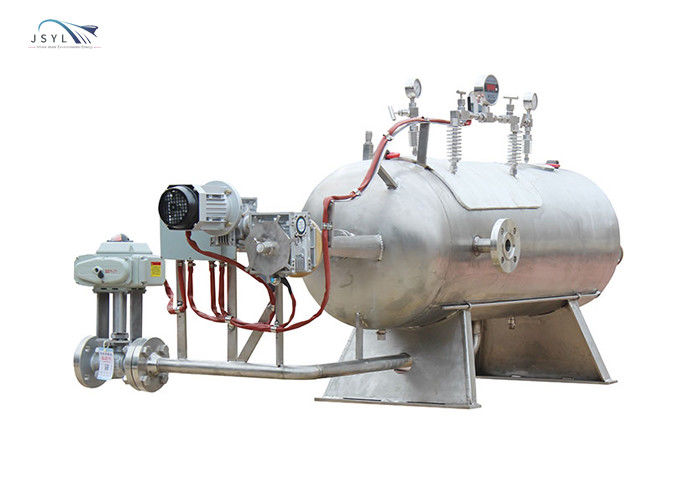

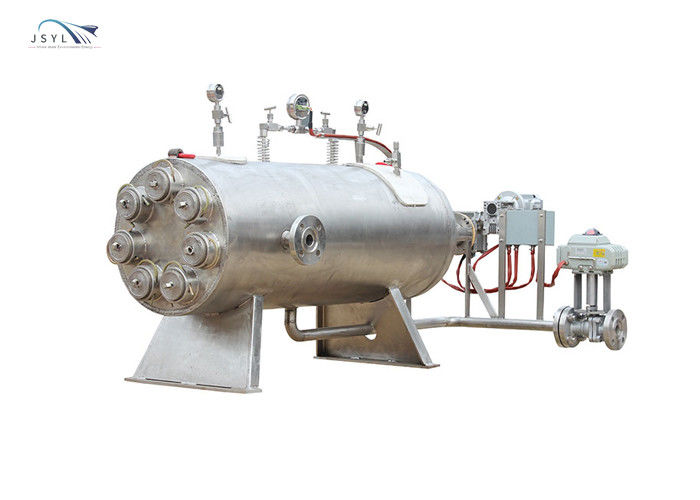

DN40 DN50 HTHP Sintered Wire Mesh Backwash Filter

High temperature and high pressure sintered wire mesh backwash filter


Describe:

JSYL series equipment can filter out solid particles in various water and low-viscosity liquids (such as machined coolants), reduce liquid turbidity, purify water quality, reduce system dirt, bacteria, algae, rust, etc., and keep materials clean. In order to meet the requirements of system operation and downstream processes for liquid cleanliness, it can also be used to protect downstream key equipment from particle blockage, abrasion or fouling, and improve the operating efficiency and life of key equipment.

Control mode:
Automatic control: timing and pressure difference, filter timer to set the filter time, the filter time is up, start to drain, the drain time is set by the drain timer. At the same time, the control system compares the filter pressure difference with the set pressure difference. When the filter pressure difference reaches the set value, the filter is cleaned and drained. The drain time is set by the drain timer, and the drain time is up. When it is time to stop cleaning, the filter is restored to its original state, ready for the next filtration process.

Manual control: Switch the automatic/manual selection on the operation panel to the manual position, and the filter layer is drained.

Features:
1. Small size, large flow, high precision
2. Intelligent online backwash without stopping and continuous flow;
3. The body replaces the filter element, quick-plug design, easy to replace;
4. Multi-filter element structure; precision can be adjusted;
5. It can be installed vertically/horizontally, which significantly saves installation space
6. The filter element has an online recoil precision of 5 microns, which can be used repeatedly.
