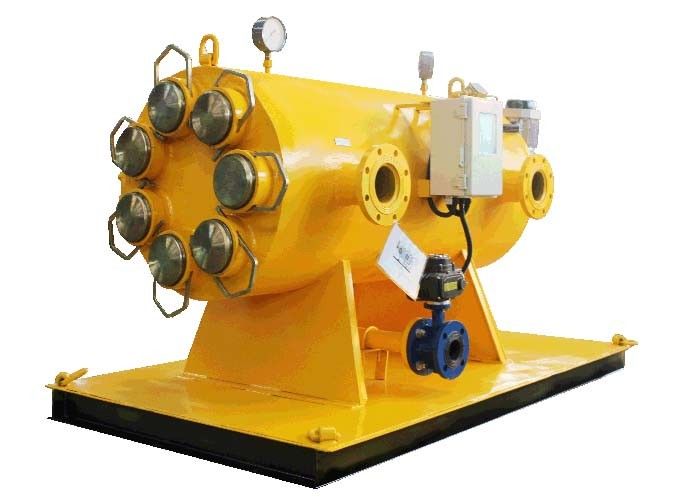

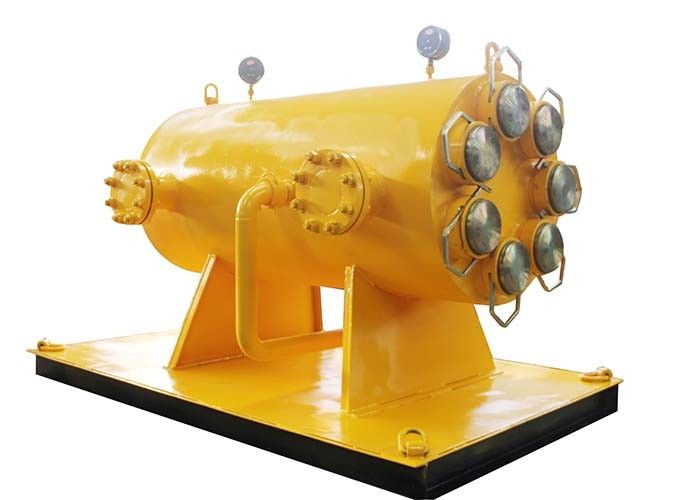

DN25 To DN450 Liquid Backwash Filter Stainless Steel Sintered Wire Mesh Tube Filter

Stainless steel sintered wire mesh tube filter for liquid


Describe
The automatic multi-core precision backflushing filter is a new generation of filters, which integrates multiple pressure-resistant filter elements inside, which can filter continuously for 24 hours. When the filter element is blocked, the filter elements are backwashed one by one through the rotation of the rotating arm. The single machine has a large filtration area and can be finely filtered at a low surface flow rate. It can be competent for relatively poor water quality, such as sludge-like impurities, soft viscous impurities, high impurity content, and a small amount of hair and fiber impurities.

Scope of application
Mainly used for the filtration of emulsion and oil in hydraulic supports, the use of emulsion tanks and hydraulic pumps together to reduce the wear of hydraulic components of the hydraulic system, further improve the reliability and stability of the hydraulic system of fully mechanized mining, improve work efficiency, and reduce the hydraulic system The failure rate ensures the normal operation of the hydraulic support and improves the equipment operation rate of the fully mechanized mining system.






Advantage
1. Fully automatic intelligent control
2. Small size, large flow, high precision
3. Intelligent online backflushing does not stop and flow continuously;
4. The body replaces the filter element, quick-plug design, easy to replace;
5. Multi-filter element structure; precision can be adjusted;
6. It can be installed vertically/horizontally, which significantly saves installation space
7. The filter element has an online recoil precision of 5 microns, which can be used repeatedly.
