Vertical 1.0MPa Sintered Wire Mesh Filter OEM Self Cleaning Irrigation Filter
-
High Light
1.0MPa Sintered Wire Mesh Filter
,Vertical Sintered Wire Mesh Filter
,OEM Self Cleaning Irrigation Filter
-
Product NameSintered Wire Mesh Filter
-
OriginHebei China
-
Applicable IndustriesPower Plants, Steel Mills, Paper Industry, Industry, Chemical Industry, Food And Water Industry
-
MaterialSintered Mesh
-
Core ComponentsBackwash Filter
-
UsageLiquid Filter
-
Filter Media304 Stainless Steel Sintered Wire Mesh
-
Installation MethodVertical Or Horizontal
-
Filter Rating100
-
SizeCustom Production
-
Place of OriginHeBei China
-
Brand NameJing shark
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Time15 days
-
Payment TermsT/T
-
Supply Ability10,000 units per month

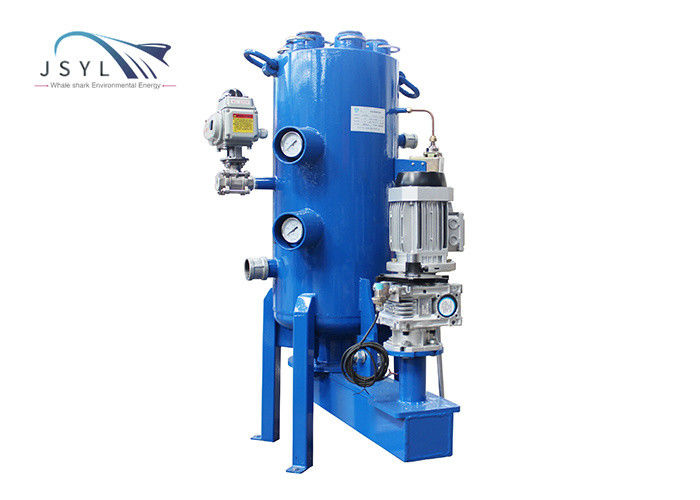

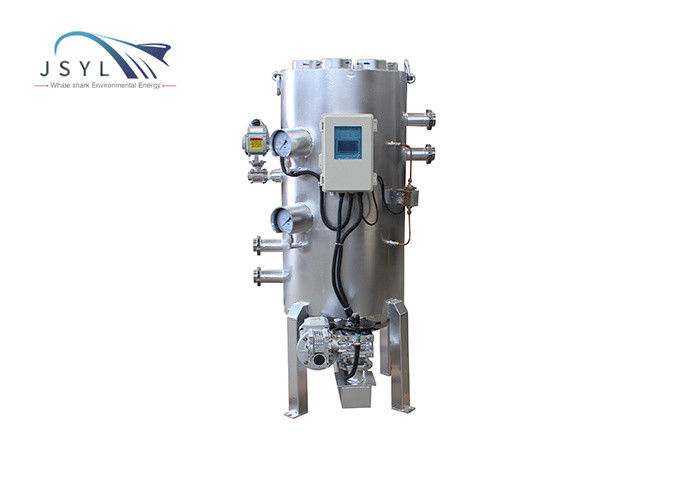

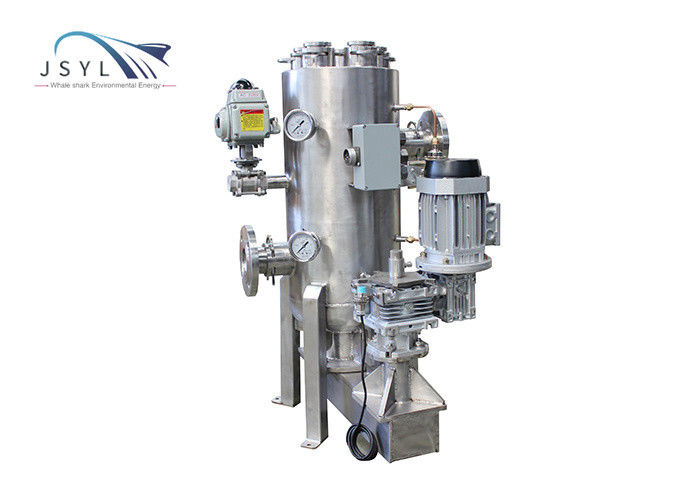

Vertical 1.0MPa Sintered Wire Mesh Filter OEM Self Cleaning Irrigation Filter
Vertical 1.0 MPa sintered wire mesh filter self-cleaning irrigation treatment
Describe:
The multi-element filter has the characteristics of backwashing and filtering. The machine continuously filters for 24 hours without interruption. When the filter element is blocked, the power distribution system runs, and the backwash rotating arm intelligently rotates to backwash the filter elements one by one, reducing the cost of downtime. , Maintenance cost and labor cost, it is an advanced solution for water and aqueous liquid filtration.
Control mode:
Automatic control: timing and pressure difference, filter timer to set the filter time, the filter time is up, start to drain, the drain time is set by the drain timer. At the same time, the control system compares the filter pressure difference with the set pressure difference. When the filter pressure difference reaches the set value, the filter is cleaned and drained. The drain time is set by the drain timer, and the drain time is up. When it is time to stop cleaning, the filter is restored to its original state, ready for the next filtration process.
Manual control: Switch the automatic/manual selection on the operation panel to the manual position, and the filter layer is drained.
| PRODUCT PARAMETER | |||
| Specifications | Equipment parameters | Specifications | Equipment parameters |
| Equipment model |
JSYL-JDX-ZD-DN(25-800) |
Cleaning method | Equipment's own filter element backwash |
| Shell selection | Carbon steel/stainless steel | Filter element form | Multi-layer woven mesh sintered |
| Single machine flow |
2-900 m3/h
|
Number of filter elements |
3-7 elements
|
| Rated pressure |
1.6MPa/2.5MPa/4.0MPa |
Filtration accuracy | 10-2000 μm |
| Applicable viscosity (cp) | 1-40cp | Applicable temperature (°C) | 0-250°C |
| Operation mode | Fully automatic intelligent control | Filter element replacement | Large cover flange replacement filter element |
|
Backwashing components
|
304 stainless steel | Filter element design | Cover replacement |
| Power unit | Compound reducer | Position proximity switch | Inductive |
| Backflushing node | Seven-star node disk | Pressure gauge | Seismic pressure gauge |
| Filter replacement cycle | Half a year/more than one year | Installation method | Vertical/Horizontal |
Advantage:
1. Fully automatic intelligent control
2. Small size, large flow, high precision
3. Intelligent online backflushing does not stop and flow continuously;
4. The body replaces the filter element, quick-plug design, easy to replace;
5. Multi-filter element structure; precision can be adjusted;
6. It can be installed vertically/horizontally, which significantly saves installation space
7. The filter element has an online recoil precision of 5 microns, which can be used repeatedly.
Our products are sold all over the world, you can rest assured.
