Sintered Mesh 50 Micron Automatic Backwash Filter Quick Plug Design
-
High Light
50 Micron automatic backwash filter
,Sintered Mesh automatic backwash filter
,50um auto backwash filter
-
Product NameSintered Wire Mesh Filter
-
OriginHebei China
-
Applicable IndustriesPower Plants, Steel Mills, Paper Industry, Industry, Chemical Industry, Food And Water Industry
-
MaterialSintered Mesh
-
Core ComponentsBackwash Filter
-
UsageLiquid Filter
-
Filter Media304 Stainless Steel Sintered Wire Mesh
-
Installation MethodVertical Or Horizontal
-
Filter Rating100
-
SizeCustom Production
-
Place of OriginHeBei China
-
Brand NameJing shark
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Time15 days
-
Payment TermsT/T
-
Supply Ability10,000 units per month

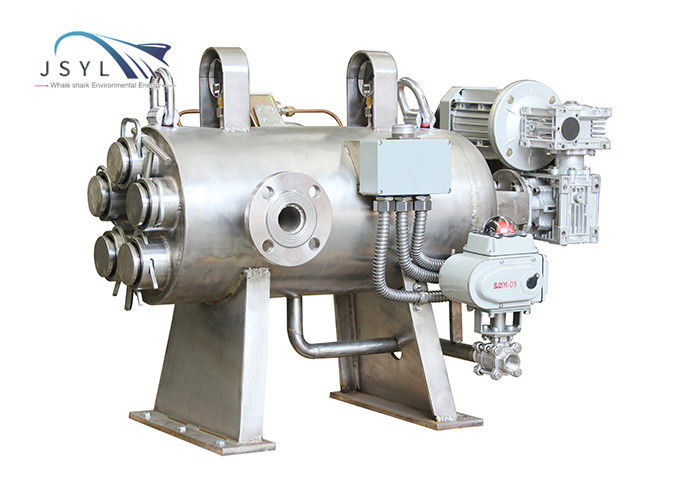

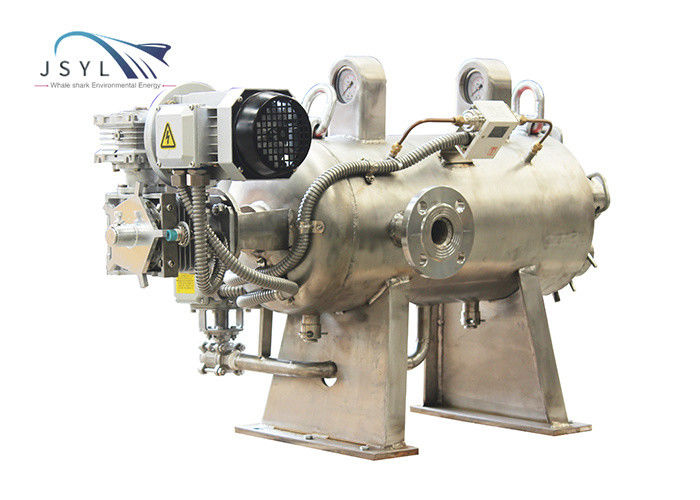

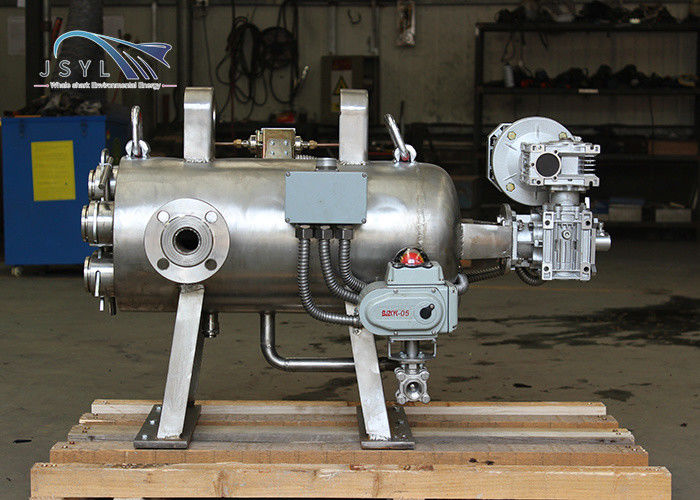

Sintered Mesh 50 Micron Automatic Backwash Filter Quick Plug Design
Sintered mesh 50 micron automatic backwash filter
Describe:
The JSYL series multi-element filter has the characteristics of backwashing and filtering. The machine continuously filters 24 hours a day. Downtime costs, maintenance costs and labor costs are advanced solutions for water and aqueous liquid filtration.
Features:
1. Fully automatic intelligent control
2. Small size, large flow, high precision
3. Intelligent online backflushing does not stop and flow continuously;
4. The body replaces the filter element, quick-plug design, easy to replace;
5. Multi-filter element structure; precision can be adjusted;
| PRODUCT PARAMETER | |||
| Specifications | Equipment parameters | Specifications | Equipment parameters |
| Equipment model |
JSYL-JDX-ZD-DN40 |
Cleaning method | Equipment's own filter element backwash |
| Shell selection | Carbon steel/stainless steel | Filter element form | Multi-layer woven mesh sintered |
| Single machine flow |
5 m3/h
|
Number of filter elements |
5 elements
|
| Rated pressure |
1.6MPa/2.5MPa/4.0MPa |
Filtration accuracy | 5 μm |
| Applicable viscosity (cp) | 1-40cp | Applicable temperature (°C) | 0-95°C |
| Operation mode | Fully automatic intelligent control | Filter element replacement | Large cover flange replacement filter element |
|
Backwashing components
|
304 stainless steel | Filter element design | Cover replacement |
| Power unit | Compound reducer | Position proximity switch | Inductive |
| Backflushing node | Seven-star node disk | Pressure gauge | Seismic pressure gauge |
| Filter replacement cycle | Half a year/more than one year | Installation method | Vertical/Horizontal |
Applicable industry:
Food industry production water and reuse water filtration, production process water supply filtration, equipment cooling water with higher water quality requirements; steel, petroleum, chemical, paper, automotive, food, metallurgy and other industries.
