Sintered mesh filter element for industrial water treatment filter
Describe:

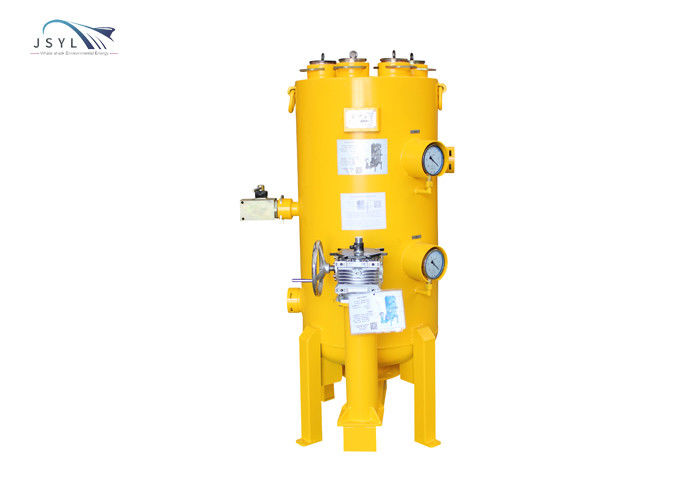

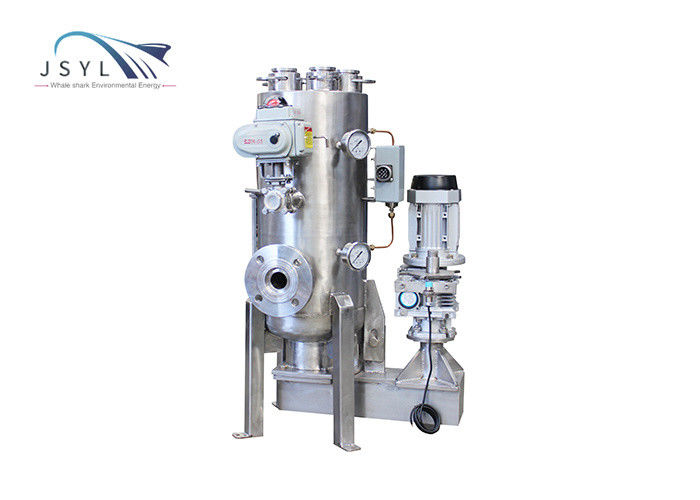

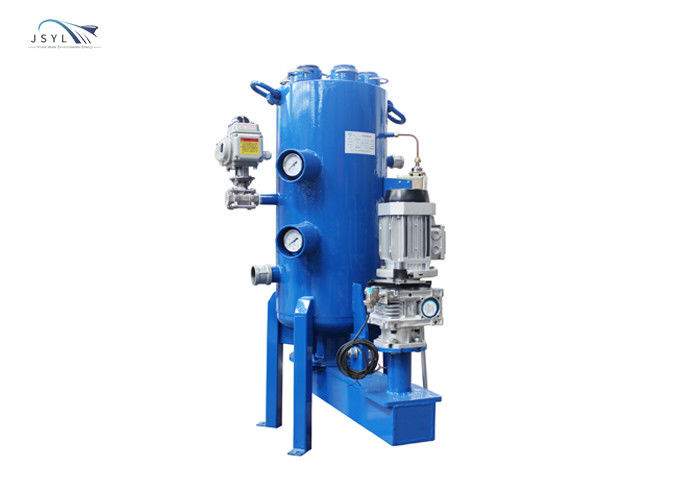

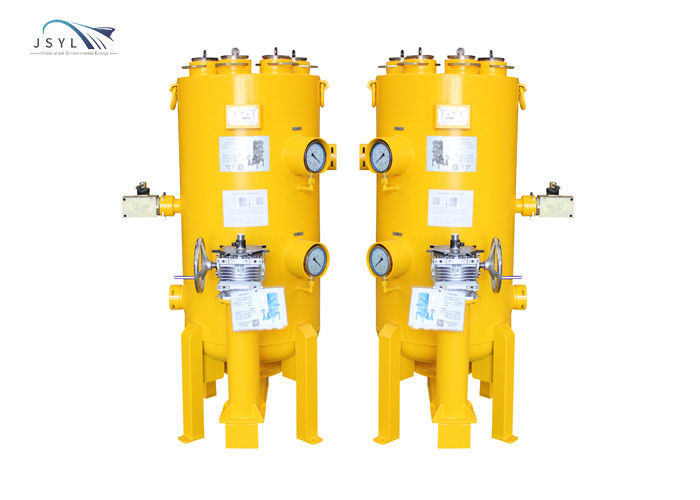

The automatic multi-core precision backflushing filter is a new generation of filter, which integrates multiple pressure-resistant filter elements inside, which can filter continuously for 24 hours. When the filter element is clogged, the filter elements are backwashed one by one through the rotation of the rotating arm. The single machine has a large filtration area and can be finely filtered at a low surface flow rate. It can be competent for poorer water quality, such as sludge-like impurities, soft viscous impurities, higher impurity content, and a small amount of hair and fiber impurities.
Features:
1. Fully automatic intelligent control
2. Small size, large flow, high precision
3. Intelligent online backflushing does not stop and flow continuously;
4. The body replaces the filter element, quick-plug design, easy to replace;
5. Multi-filter element structure; precision can be adjusted;

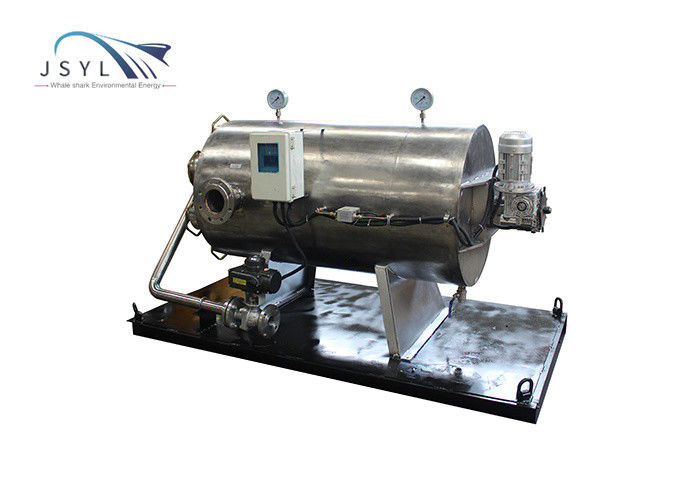

6. It can be installed vertically/horizontally, which significantly saves installation space
PRODUCT PARAMETER | |||
Specifications | Equipment parameters | Specifications | Equipment parameters |
Equipment model |
JSYL-JDX-ZD-DN(25-800) |
Cleaning method | Equipment's own filter element backwash |
Shell selection | Carbon steel/stainless steel | Filter element form | Multi-layer woven mesh sintered |
Single machine flow |
2-900 m3/h
|
Number of filter elements |
3-7 elements
|
Rated pressure | 1.6MPa/2.5MPa/4.0MPa | Filtration accuracy | 10-200 μm |
Applicable viscosity (cp) | 1-40cp | Applicable temperature (°C) | 0-95°C |
Operation mode | Fully automatic intelligent control | Filter element replacement | Large cover flange replacement filter element |
Backwashing components
|
304 stainless steel | Filter element design | Cover replacement |
Power unit | Compound reducer | Position proximity switch | Inductive |
Backflushing node | Seven-star node disk | Pressure gauge | Seismic pressure gauge |
Filter replacement cycle | Half a year/more than one year | Installation method | Vertical/Horizontal |
After-sales service:
1. The product implements three guarantees, the quality period is one year, and the technical service is provided for life.
2. The supplier provides the basic drawings of the product and is responsible for providing technical guidance when making the foundation.
3. During the commissioning and equipment commissioning warranty period, if the equipment is damaged due to our responsibility, we will repair and replace it free of charge. If the equipment is damaged due to improper transportation and delivery management, we have the responsibility to cooperate with the buyer. Do a good job in service.
